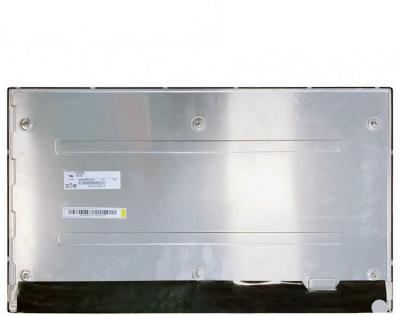

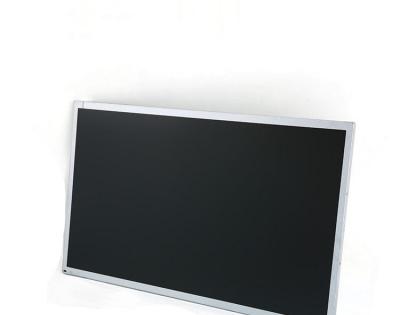

BOE EV238FHM-N21 Application Details
| Basic Detail : | Panel Brand | BOE | Model Name | EV238FHM-N21 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 23.8” | Designed For | Medical Imaging | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Srgb,Hight Brightness，WLED Backlight,Life>=50K hours,Matte | |||
BOE EV238FHM-N21 Optical Details
| Basic Information : | Luminance | 600 cd/m²(Min.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) ms | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.292; Wy:0.315 | Display Colors | 16.7M (8-bit) |
Color Temperature | 7992K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 99% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
BOE EV238FHM-N21 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.0915*0.2745 mm | Pixel Pitch (mm) | 0.2745*0.2745 mm [92PPI] | |
| Physical Size : | Active Viewing(mm) | 527.04(W)*296.46(H) mm | Bezel Area (mm) | 530.2(W)*299.6(H) mm |
| Outline Dim. (mm) | 543(W)*317.4(H) mm | Outline Depth | 10.1/15.3 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Rear mounting Pole (6 pcs) | |||
| Other Features : | Weight | 1.92Kgs (Typ.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
BOE EV238FHM-N21 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 37.4W (Max.) |
BOE EV238FHM-N21 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | |||||||
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.97/1.5A (Typ./Max.) | ||||
| Consumption | 4.9/7.5W (Typ./Max.) | |||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| UJU | IS100-L30O-C23 | 1.0mm | 30pins | 1 pcs | ||||
BOE EV238FHM-N21 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Bottom side) | ||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | |||||||
| Lamp Electrical : | Voltage Input | 46.4/52.8V (Min./Max.) | Current Input | 120mA (Typ.) | ||||||||
| Consumption | 26.2/29.9W (Typ./Max.) | |||||||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | ||||||
| 6pins | 1 pcs | BLE-6PINS-CCAACC | ||||||||||
| Backlight Driver : | With LED Driver | |||||||||||
BOE EV238FHM-N21 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 10pcs / box | - | 609*327*419 mm |
