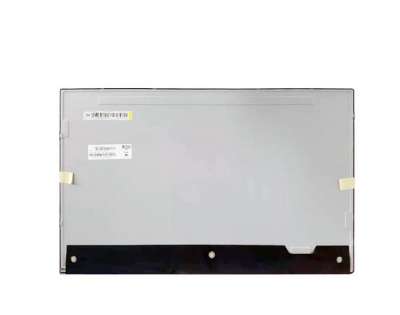

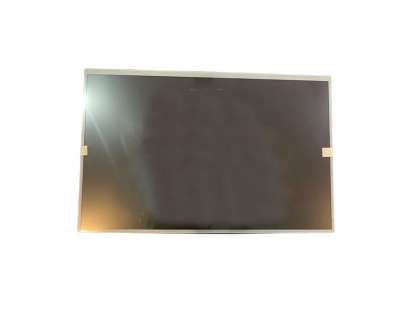

1、BOE DV238FHM-N11 Application Details
Basic Information : | Brand | BOE | Model | DV238FHM-N11 |
Type | LCM a-Si TFT-LCD | Used For | Digital Signage | |
Screen Size | 23.8" | |||
Environment : | Storage Temp. | -20~60 °C | Operating Temp. | 0 ~ 50 °C |
RoHS | RoHS | Vibration | ||
Typical Features : | Srgb ，Hight Brightness，WLED Backlight，Reverse I/F，Matte | |||
2、BOE DV238FHM-N11 Optical Details
Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) (ms) | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | HADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | X:0.313; Y:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 99% coverage |
Adobe RGB | 76% coverage | DCI-P3 | 76% coverage | |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE DV238FHM-N11 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.0915×0.2745 mm | Pixel Pitch(W×H) | 0.2745×0.2745 mm [92PPI] | |
Physical Size : | Active Viewing (W×H) | 527.04×296.46 mm | Outline Dim. (W×H) | 543×317.4 mm |
Bezel Area (W×H) | 530.2×299.6 mm | Depth(mm) | 8.2/11.4 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 (H:V) | Shape Style | Normal bezel | |
Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
Other Detail : | Mass | 2.39Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
4、BOE DV238FHM-N11 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 26.54/28.3W (Typ./Max.) |
5、BOE DV238FHM-N11 Interface Details
Signal Electrical : | Input Current | 700/900mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
Consumption | 3.5/4.5W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
Interface Features : | Position | Down right of panel | Physical Type | Connector | ||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
UJU | IS100-L30R-C23 | 1 pcs | 1.0 mm | 30 pins | LVDS-30P2C8B-160A | |
6、BOE DV238FHM-N11 Lightting Details
Lamp Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Position | Edge light type (Bottom side) | |||||||
Exchange | - | Amount | - | Life | 30K(Min.) (Hours) | ||||||||
Lamp Electrical : | Input Voltage | 48/49.6V (Typ./Max.) | Input Current | 120mA (Typ.) | |||||||||
Consumption | 23.04/23.8W (Typ./Max.) | ||||||||||||
Interface Features : | Position | Down left corner | Physical Type | Connector | |||||||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||||
E&T | 3708K-Q06N-00L | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | ||||||||
Backlight Driver : | No | ||||||||||||
7、BOE DV238FHM-N11 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
9 | 631×318×415 | N/A |
