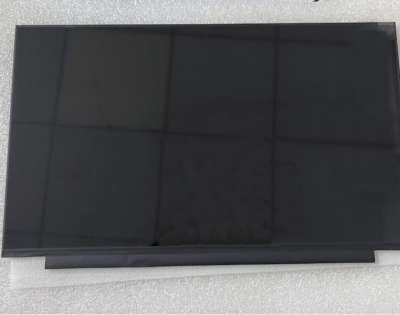

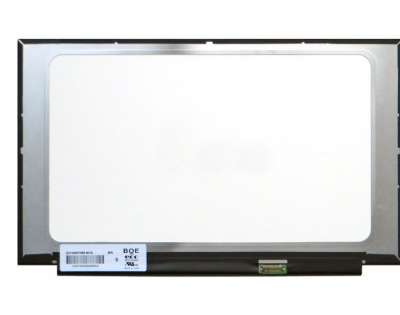

1、BOE DV160FHM-N10 Application Details
Basic Information : | Brand | BOE | Model | DV160FHM-N10 |
Type | LCM a-Si TFT-LCD | Used For | Digital Signage | |
Screen Size | 16.0" | |||
Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | 0 ~~ 50 °C |
RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) | |
Typical Features : | WLED Backlight，With LED Driver，Reverse I/F | |||
2、BOE DV160FHM-N10 Optical Details
Basic Information : | Luminance | 220 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (8-bit) |
Color Temperature | 6485K | White Uniformity | 1.25/1.54 (Max.)(5/13 points) | |
1931 Color Gamut : | NTSC Ratio | 50% | sRGB | 71% coverage |
Adobe RGB | 53% coverage | DCI-P3 | 52% coverage | |
Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、BOE DV160FHM-N10 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080 [FHD] | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.0607×0.1821 mm | Pixel Pitch(W×H) | 0.1821×0.1821 mm [139PPI] | |
Physical Size : | Active Viewing | 349.632(W)×196.668(H) mm | Overall Dim. | 356.13(W)×219.23(H) mm |
Bezel Opening | - | Overall Depth | 3.14 (Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 | Shape Style | ||
Fixation : | Without | |||
Other Detail : | Mass | 400g (Max.) | Surface | Hard coating |
4、BOE DV160FHM-N10 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 3.82/6.56W (Typ./Max.) |
5、BOE DV160FHM-N10 Interface Details
Signal Electrical : | Input Current | 384/1000mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
Consumption | 0.9/3.0W (Typ./Max.) | Signal Interface | eDP (2 Lanes), eDP1.2, HBR1 (2.7G/lane) | |||
Interface Features : | Position | Right of Board | Physical Type | Connector | ||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
STM | MSAK24025P30 | 1 pcs | 0.5 mm | 30 pins | EDP-30P2L-020A | |
6、BOE DV160FHM-N10 Lightting Details
Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
Exchange | - | Amount | - | Life | 15K(Min.) (Hours) | |
Interface Features : | Position | - | Physical Type | Included in signal interface | ||
Backlight Driver : | With LED Driver | |||||
Driver Electrical : | Input Current | - | Input Voltage | 5.0/12.0/21.0V (Min./Typ./Max.) | ||
Consumption | 2.83W (Typ.) | |||||
7、BOE DV160FHM-N10 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
35 | 480×250×285 | N/A |
