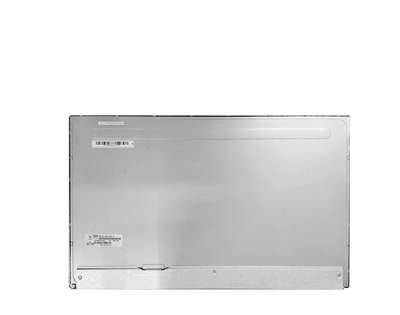

1、BOE MV270FHM-N20 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | MV270FHM-N20 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 27.0 inch | Designed For | Desktop Monitor | |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Features : | Srgb, WLED Backlight，ReverseI/F，Matte | |||
2、BOE MV270FHM-N20 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
Dot Pitch | 0.1038×0.3114 mm (H×V) | Pixel Pitch | 0.3114×0.3114 mm (H×V) [81PPI] | |
Physical Size : | Active Viewing | 597.888×336.312 mm (H×V) | Overall Dim. | 601.9×340.4 mm (H×V) |
Bezel Opening | 611.5×355.8 mm (H×V) | Overall Depth | 10.0/13.5 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 (H:V) | Shape Style | Normal bezel | |
Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
Other Detail : | Mass | 3.49Kgs | Surface | Antiglare (Haze 25%), Hard coating (3H) |
3、BOE MV270FHM-N20 Optical Details
Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 14 (Typ.)(G to G) ms | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 75% | sRGB | 99% coverage |
Adobe RGB | 77% coverage | DCI-P3 | 78% coverage | |
Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、BOE MV270FHM-N20 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 18.8/23.12W (Typ./Max.) |
5、BOE MV270FHM-N20 Interface Details
Signal Electrical : | Input Current | 640/960mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
Consumption | 3.2/5.3W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
Interface Features : | Position | Down left of panel | Physical Type | Connector | ||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
STM | MSBKT2407P30HC | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-160A | |
6、BOE MV270FHM-N20 Lightting Details
Lamp Features : | Lamp Type | WLED | Amount | 18S4P | Position | Edge light type (Bottom side) |
Exchange | - | Lamp Shape | 4strings | Lamp Life | 30K(Min.) (Hours) | |
Lamp Electrical : | Input Voltage | 52.2/54.0/59.4V (Min./Typ./Max.) | Input Current | 70±5mA | ||
Consumption | 13.57/15.12/17.82W (Min./Typ./Max.) | |||||
Interface Features : | Position | Down left corner | Physical Type | Connector | ||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
E&T | 3708K-Q06N-00R | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC | |
7、BOE MV270FHM-N20 Packing Details
Box/Package | Pcs/Package | Package LWH (mm) | G.W (kgs) |
7 | 687×289×461 | 25.30 |
