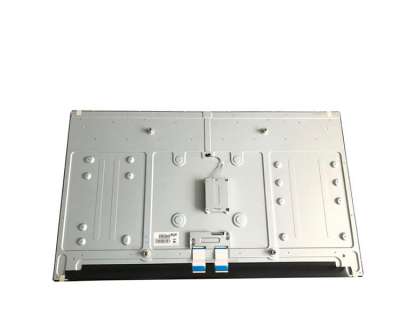

1、BOE DV430FHM-NN1 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | DV430FHM-NN1 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 43.0" | Designed For | Digital Signage， | |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
RoHS | RoHS | Vibration Level | ||
Features : | WLED Backlight，With LED Driver，Reverse I/F, Matte | |||
2、BOE DV430FHM-NN1 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
Dot Pitch | 0.16335×0.49005 (H×V) | Pixel Pitch | 0.49005×0.49005 (H×V) [51PPI] | |
Physical Size : | Active Viewing | 940.896(H) × 529.254(V) | Bezel Area(mm). | 943.896(H) × 532.25(V) |
Outline Dim.(mm) | 961.7(H) × 550.1(V) | Depth(mm) | 11.7/27.7 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 16:9 (H:V) | Shape Style | ||
Other Detail : | Mass | 8.36Kgs (Typ.) | Surface | Antiglare (Haze 1%), Hard coating (3H) |
3、BOE DV430FHM-NN1 Optical Details
Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1200:1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 8 (Typ.)(G to G) ms | |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.280; Wy:0.290 | Support Color | 16.7M (8-bit) |
Color Temperature | 9969K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) | |
1931 Color Gamut : | NTSC Ratio | 71% | sRGB | 97% coverage |
Adobe RGB | 74% coverage | DCI-P3 | 74% coverage | |
Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、BOE DV430FHM-NN1 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
5、BOE DV430FHM-NN1 Interface Details
Signal Electrical : | Input Current | 0.5/0.95A (Typ./Max.) | Input Voltage | 12.0V (Typ.) | ||
Consumption | 6/11.4W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | |||
Interface Features : | Position | Down middle of panel | Physical Type | Connector | ||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
UJU | PM.LVS.S040505101 | 0.5 mm | 51 pins | 1 pcs | ||
6、BOE DV430FHM-NN1 Lightting Details
Lamp Features : | Lamp Type | WLED | Amount | - | Position | Edge light type | |||
Exchange | - | Lamp Shape | - | Lamp Life | 30K(Min.) (Hours) | ||||
Interface Features : | Position | - | Physical Type | Connector | |||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||
3.0 mm | 14pins | 1 pcs | |||||||
Driver Electrical : | Voltage Supply | 22/26V (Min./Max.) | Current Supply | 3.5A (Max.) | |||||
Consumption | 64W (Typ.) | ||||||||
7、BOE DV430FHM-NN1 Packing Details
Box/Package | Pcs/Package | Package LWH (mm) | G.W (kgs) |
20 | 1120×1065×640 | N/A |
