1、BOE DV220X2M-NV0 Application Details
Basic Detail : | Manufacturer | BOE | Model Name | DV220X2M-NV0 |
Panel Type | a-Si TFT-LCD , LCM | |||
Panel Size | 22.0inch | Designed For | Digital Signage | |
Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
RoHS | RoHS | Vibration Level | - | |
Features : | Industria，Digital Signage，Video Wall | |||
2、BOE DV220X2M-NV0 Mechanical Details
Pixel Features : | Number of Pixel | 1920(RGB)×1920 | Arrangement | RGB Vertical Stripe |
Dot Pitch (H×V) | 0.0685×0.2055 mm | Pixel Pitch (H×V) | 0.2055×0.2055 mm [123PPI] | |
Physical Size : | Display Area (H×V) | 394.56×394.56 mm | Bezel Opening (H×V) | 398.56×398.56 mm |
Overall Dimension (H×V) | 409.56×409.56 mm | Depth(mm) | 7.6/12.6 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 1:1 (H:V) | Videowall Seam | 15.0 mm (Active to Active) | |
Other Detail : | Mass | 1.96±0.10Kgs | Surface | Antiglare (Haze 25%), Hard coating (3H) |

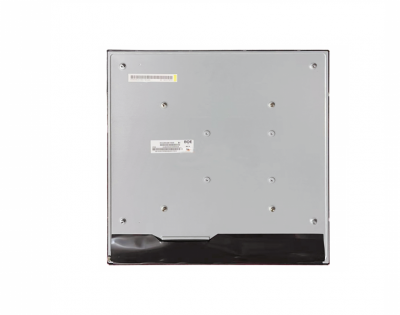

Holes & Brackets : | Rear mounting Pole (12-M3) | |||
3、BOE DV220X2M-NV0 Optical Details
Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) | ||
Good View at | Symmetry | Response Speed | 8 (Typ.)(G to G) ms | |||
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | ADS, Normally Black, Transmissive | |||
Color Performance : | Color Temperature | Support Color | Color Coordinate | |||
9969K | 16.7M (8-bit) | X:0.280; Y:0.290 | ||||
1931 Color Gamut : | NTSC Ratio | 74% | sRGB | 96% coverage | ||
Adobe RGB | 75% coverage | DCI-P3 | 77% coverage | |||
Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |||
Luminance Variation : | 1.33 (Typ.)(9 points) | |||||
4、BOE DV220X2M-NV0 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 22.3/26.7W (Typ./Max.) |
5、BOE DV220X2M-NV0 Interface Details
Signal Electrical : | Input Current | 1.2/1.8A (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
Consumption | 5.5/7.7W (Typ./Max.) | Signal Interface | LVDS (4 ch, 8-bit) | |||
Interface Features : | Position | - | Physical Type | Connector | ||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
UJU | IS050-C51B-C39 | 0.5mm | 51 pins | 1 pcs | ||
6、BOE DV220X2M-NV0 Lightting Details
Lamp Features : | Lamp Type | WLED | Amount | 13S4P | Position | Edge light type (Right side) | |||||
Exchange | - | Lamp Shape | 4 strings | Lamp Life | 30K(Min.) | ||||||
WLED Electrical : | Input Voltage | 37.7±1.3V | Input Current | 115mA (Typ.) | Power Consumption | 17.3/17.9W (Typ./Max.) | |||||
Interface Features : | Position | Down left corner | Physical Type | Connector | |||||||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | |||||
3707K-X06X-08X | 6pins | 1 pcs | BLE-6PINS-CCAACC | ||||||||
Backlight Driver : | No | ||||||||||
7、BOE DV220X2M-NV0 Packing Details
Box/Package | Pcs/Package | Package LWH (mm) | G.W (kgs) |
10 | 495×318×495 | N/A |
