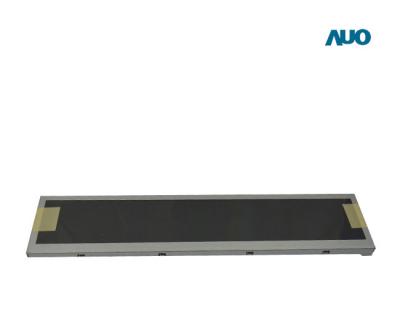

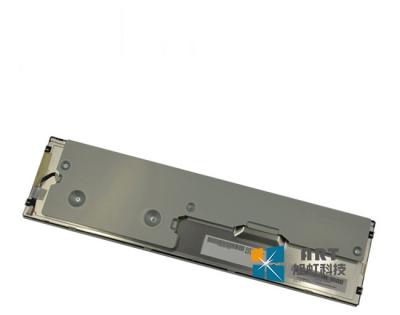

AUO C123HAN02.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | C123HAN02.1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 12.3” | Designed For | Automotive Display | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| RoHS | RoHS | Vibration Level | 2.9G (28.4 m/s²) | |
| Features : | Wide Temperature,3G Vibration, Hight Brightness，WLED Backlight,Matte， Bar Display | |||
AUO C123HAN02.1 Optical Details
| Basic Information : | Luminance | 700 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 15/20 (Typ.)(Tr/Td) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.311; Wy:0.317 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6710K | White Variation | 1.25 (Max.)(9 points) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO C123HAN02.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*720 | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.0507*0.1521 (H*V) | Pixel Pitch(mm) | 0.1521*0.1521 (H*V) [167PPI] | |
| Physical Size : | Active Viewing(mm) | 292.032(H) * 109.512(V) | Bezel Area (mm) | 293.94(H) *111.42(V) |
| Outline Dim.(mm) | 310.75(H) *129.86(V) | Depth(mm) | 12.08/16.23 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 8:3(H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting Pole (5 pcs) | |||
| Other Spec : | Weight | TBD | Treatment | Antiglare |
AUO C123HAN02.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO C123HAN02.1 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | TBD | |||||
| Signal Voltage | - | Signal Interface | LVDS (2 ch, 8-bit) | ||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||
| HRS | FH41-40S-0.5SH(05) | 0.5mm | 40 pins | 1 pcs | |||||
AUO C123HAN02.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 8S4P | Position | Edge light type | ||||||
| Exchange | - | Lamp Shape | 4strings | Lamp Life | 20K(Min.) (Hours) | |||||||
| Lamp Electrical : | Input Voltage | 24/27.2V (Typ./Max.) | Input Current | 80mA (Typ.) | ||||||||
| Interface Features : | Position | - | Physical Type | FPC | ||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||||||
| 0.5mm | 10pins | 1 pcs | ||||||||||
| Backlight Driver : | No | |||||||||||
AUO C123HAN02.1 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 21 pcs / box | 15 Kgs | 650*410*260 mm (L*W*H) |
