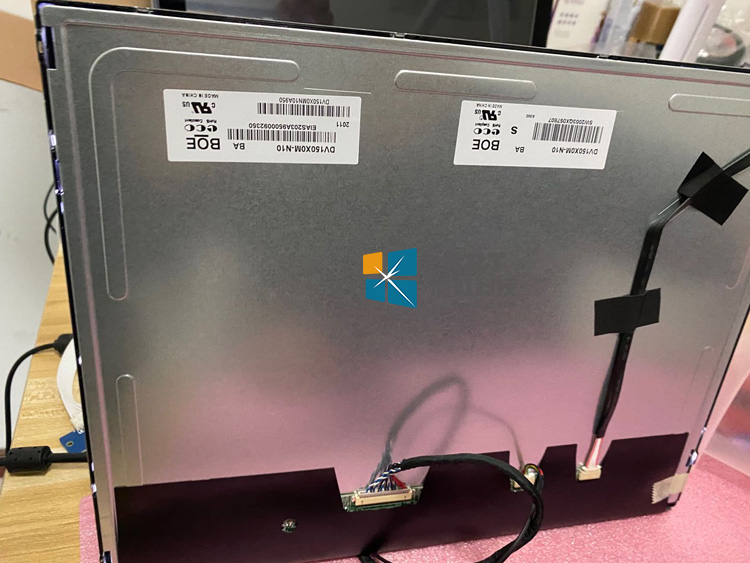

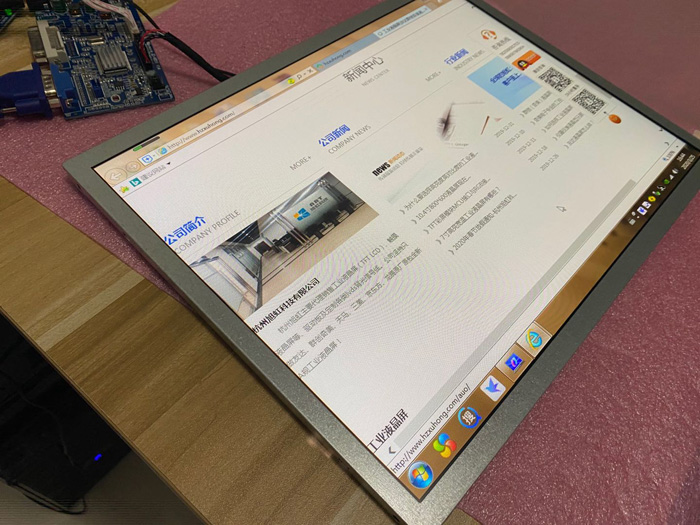

BOE DV150X0M-N10 Application Details
| Basic Detail : |
Manufacturer |
BOE |
Model Name |
DV150X0M-N10 |
| Panel Type |
a-Si TFT-LCD , LCM |
Another Name |
|
| Panel Size |
15” |
Designed For |
Digital Signage |
| Maximum Ratings : |
OP Temperature |
-20 ~ 70 °C |
ST Temperature |
-20 ~ 70 °C |
| RoHS |
RoHS |
Vibration Level |
- |
| Features : |
Landscape/Portrait，WLED Backlight,Life>=50K hours,With LED Driver，Matte |
BOE DV150X0M-N10 Optical Details
| Basic Information : |
Luminance |
350 cd/m² (Typ.) |
Contrast Ratio |
1000 : 1 (Typ.) (Transmissive) |
| Good View at |
Symmetry |
Response Speed |
30 (Typ.)(Tr+Td) ms |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Operating Mode |
ADS, Normally Black, Transmissive |
| Color Performance : |
Chromaticity |
X:0.313; Y:0.329 |
Display Colors |
16.7M (6-bit + Hi-FRC) |
Color Temperature |
6485K |
White Variation |
1.33 (Max.)(9 points) |
| 1931 Color Gamlt |
NTSC Ratio |
74% |
sRGB |
95% coverage |
| Adobe RGB |
73% coverage |
DCI-P3 |
77% coverage |
| Rec.2020 |
55% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |

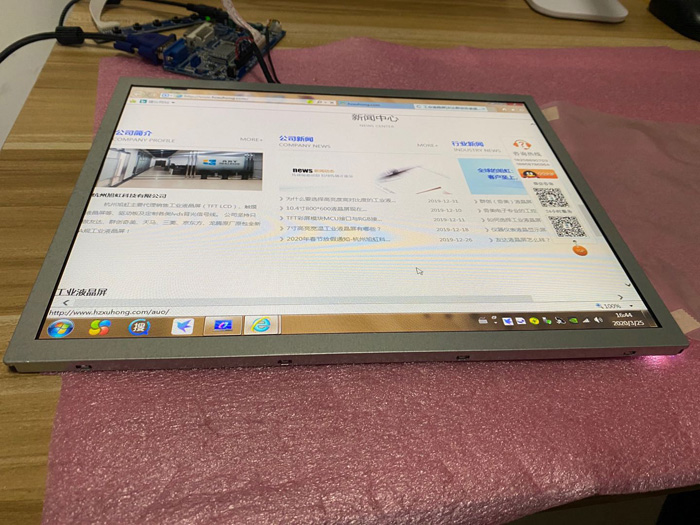

BOE DV150X0M-N10 Mechanical Details
| Pixel Features : |
Number of Pixel |
1024(RGB)×768, XGA |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch (W×H) |
0.099×0.297 mm |
Pixel Pitch (W×H) |
0.297×0.297 mm [85PPI] |
| Physical Size : |
Active Viewing(mm) |
304.128(W)×228.096(H) mm |
Bezel Area (mm) |
306.5(W)×230.1(H) mm |
| Outline Dim.(mm) |
326.5(W)×253.5(H) mm |
Depth(mm) |
9.7 (Max.) mm |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
|
| Aspect Ratio |
4:3 (H:V) |
Orientation |
Landscape type |
| Mounting : |
Side mounting holes (4-M3) on left, right bezel |
| Other Spec : |
Weight |
930g |
Treatment |
Antiglare (Haze 25%), Hard coating (3H) |
BOE DV150X0M-N10 Electronics Details
| Refresh Rate : |
60Hz |
| Reverse Scan : |
No |
| Power Consumption : |
8.72/10.1W (Typ./Max.) |
BOE DV150X0M-N10 Interface Detail
| Signal Electrical : |
Signal Interface |
LVDS (1 ch, 8-bit) |
Logic Voltage |
- |
| Signal Electrical : |
Voltage Input |
3.3V (Typ.) |
Current Input |
410/740mA (Typ./Max.) |
| Consumption |
0.8/1.3W (Typ./Max.) |
| Interface Features : |
Position |
- |
Physical Type |
Connector |
| Interface Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Pin Assignment |
| STM |
MSB240420HE |
1.25mm |
20 pins |
1 pcs |
|
BOE DV150X0M-N10 Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
12S4P |
Position |
Edge light type |
| Exchange |
- |
Lamp Shape |
4 strings |
Lamp Life |
50K(Min.) (Hours) |
| Interface Features : |
Position |
- |
Physical Type |
Connector |
| Interface Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Pin Assignment |
| CviLux |
MSB240420HE |
1.25 mm |
20 pins |
1 pcs |
|
| Backlight Driver : |
With LED Driver |
| Driver Electrical : |
Input Voltage |
10.8/12/12.6V (Min./Typ./Max.) |
Input Current |
550/600/700mA (Min./Typ./Max.) |
| Consumption |
7.92/8.71W (Typ./Max.) |
BOE DV150X0M-N10 Packing Details
| Package Box : |
Amount |
Weight |
Size (L×W×H) |
| 14 pcs / box |
- |
510×399×324 mm |
