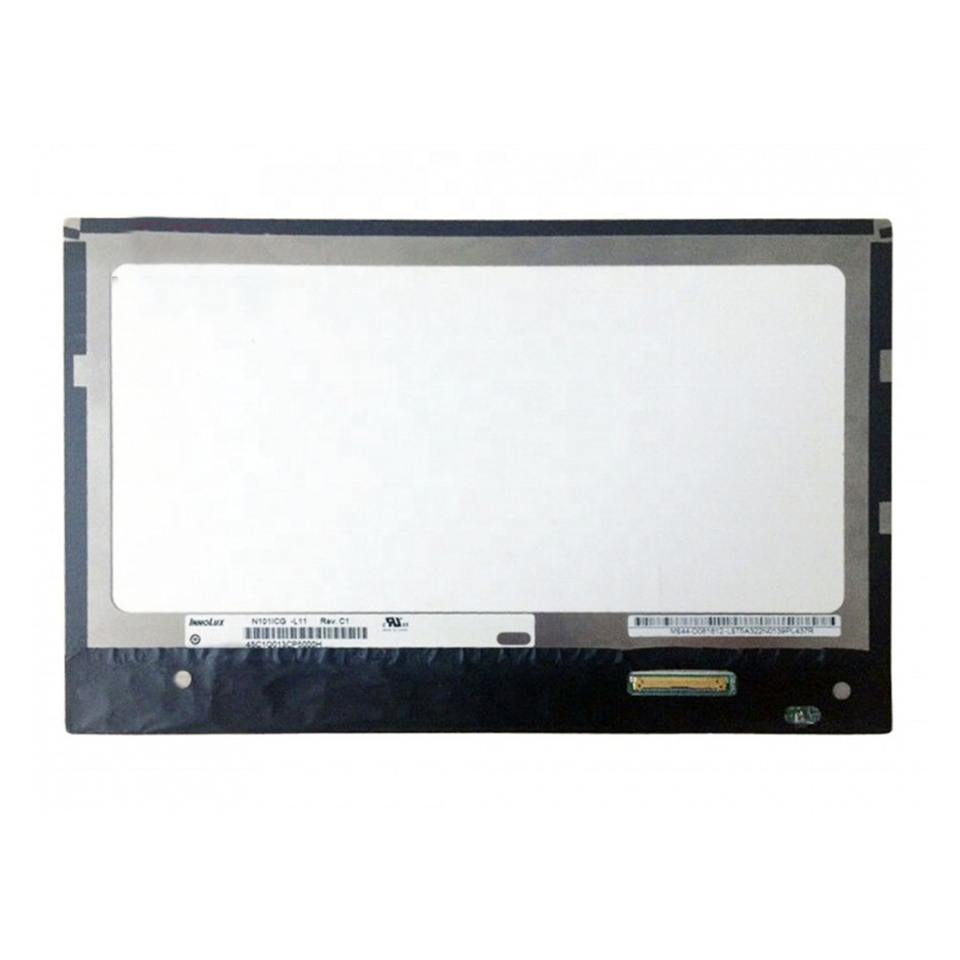

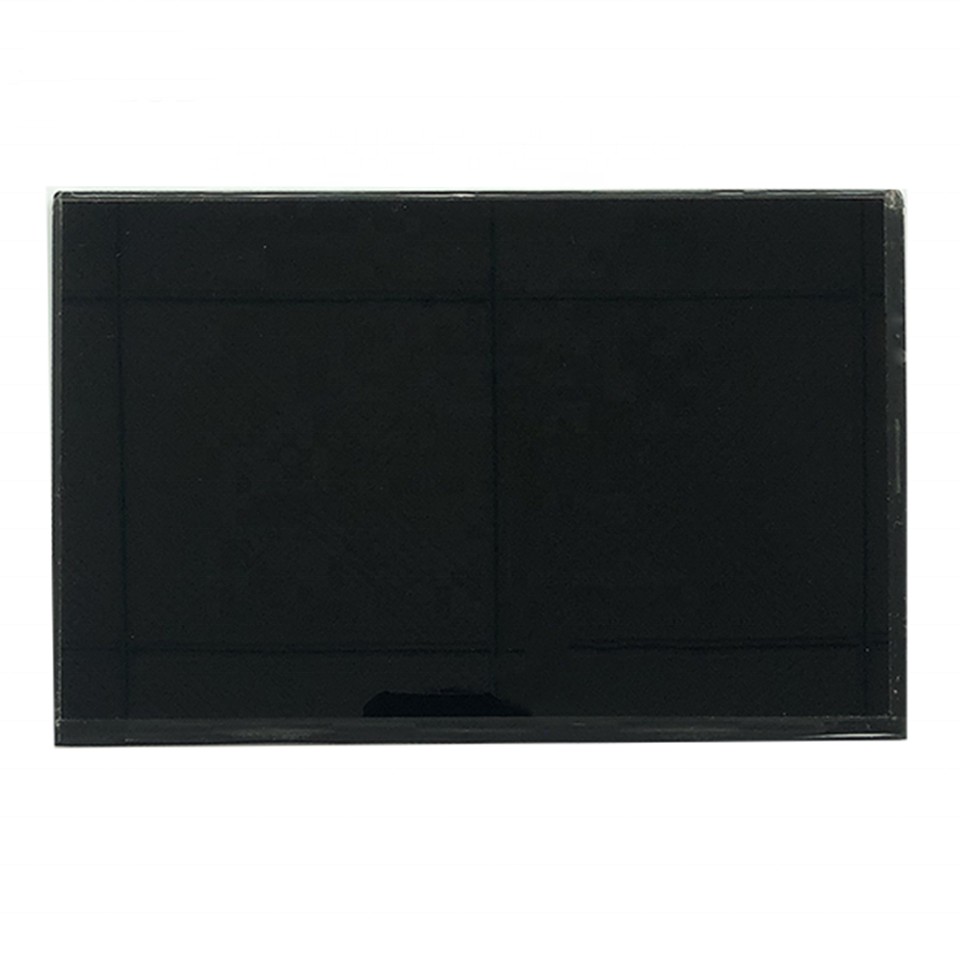

Chimei Innolux N101ICG-L11 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | N101ICG-L11 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 10.1” | Designed For | Pad&Tablet | |
| Maximum Ratings : | OP Temperature | -10 ~ 60 °C | ST Temperature | -20 ~ 70 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight，With LED Driver, Reverse I/F,Matte | |||
Chimei Innolux N101ICG-L11 Optical Details
| Basic Information : | Luminance | 350 cd/m²(Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14/11 (Typ.)(Tr/Td) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.308; Wy:0.324 | Display Colors | 262K (6-bit) |
Color Temperature | 6810K | White Variation | 1.11/1.25 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 52% | sRGB | 72% coverage |
| Adobe RGB | 55% coverage | DCI-P3 | 54% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux N101ICG-L11 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.0565*0.1695 (H*V) | Pixel Pitch (W×H) | 0.1695*0.1695 (H*V) [149PPI] | |
| Physical Size : | Active Viewing(mm) | 216.96(H) *135.6(V) | Bezel Area (mm) | 219.31(H) *138.25(V) |
| Outline Dim.(mm) | 227.42(H) *147.69(V) | Depth(mm) | 2.16/4.58W (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (W:H) | Orientation | Landscape type | |
| Fixation : | Without | |||
| Other Spec : | Weight | 120/135g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux N101ICG-L11 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 2.96W (Max.) |
Chimei Innolux N101ICG-L11 Interface Details
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 185/220/265mA (Min./Typ./Max.) | ||||
| Consumption | 0.76W (Max.) | Signal Interface | LVDS (1 ch, 6-bit) | |||||
| Logic Voltage : | - | |||||||
| Interface Features : | Position | Rear | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| I-PEX | 20455-040E-12 | 0.5mm | 40pins | 1 pcs | ||||
Chimei Innolux N101ICG-L11 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3 strings | Position | Edge light type | |||
| Exchange | - | Lamp Shape | Array | Lamp Life | 50K(Min.) (Hours) | ||||
| Lamp Electrical : | Voltage Supply | 8.4/9.0/9.9V (Min./Typ./Max.) | Current Supply | 178.4mA (Typ.) | |||||
| Consumption | 1.61/1.77W (Typ./Max.) | ||||||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | |||||
| Backlight Driver : | With LED Driver | ||||||||
| Driver Electrical : | Input Voltage | 3.7±;0.5V | Input Current | 450/532/609mA (Min./Typ./Max.) | |||||
| Consumption | 2.2W (Max.) | ||||||||
Chimei Innolux N101ICG-L11 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 30 pcs / box | 7.2 Kgs | 435*350*275 mm |
