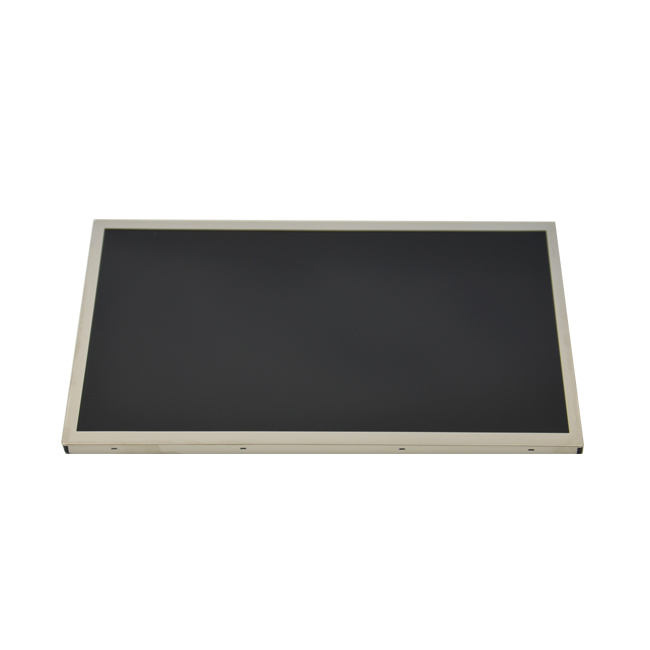

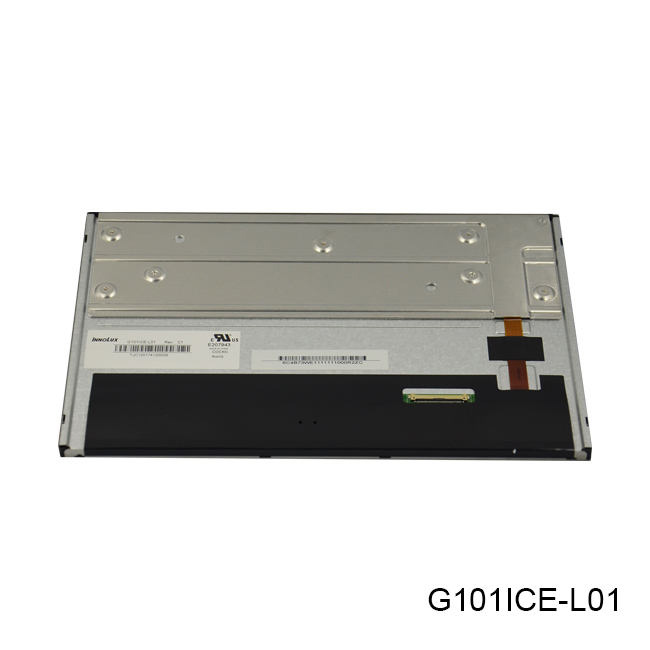

Chimei Innolux G101ICE-L01 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G101ICE-L01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 10.1” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -25 ~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight，Life>=50K hours,With LED Driver, 6/8 bit,Matte | |||
Chimei Innolux G101ICE-L01 Optical Details
| Basic Information : | Luminance | 500 cd/m²(Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14/11 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) 0) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | White Variation | 1.43 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 75% coverage |
| Adobe RGB | 56% coverage | DCI-P3 | 56% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G101ICE-L01 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.0565*0.1695 (H*V) | Pixel Pitch (W*H) | 0.1695*0.1695 (H*V) [149PPI] | |
| Physical Size : | Active Viewing(mm) | 216.96(H) *135.6(V) | Bezel Area (mm) | 218.96(H) *137.6(V) |
| Outline Dim.(mm) | 230.7(H) *152.55(V) | Depth(mm) | 6.5±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (W:H) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Spec : | Weight | 360/375g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G101ICE-L01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 6.18W (Typ.) |
Chimei Innolux G101ICE-L01 Interface Details
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 265/320mA (Typ./Max.) | ||||
| Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| I-PEX | 20455-040E-12 | 0.5mm | 40pins | 1 pcs | ||||
Chimei Innolux G101ICE-L01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||
| Exchange | - | Lamp Shape | Array | Lamp Life | 50K(Min.) (Hours) | ||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | |||||
| Backlight Driver : | With LED Driver | ||||||||
| Driver Electrical : | Input Voltage | 12.0V (Typ.) | Input Current | 0.42/0.50A (Typ./Max.) | |||||
| Consumption | 5.0/5.8W (Typ./Max.) | ||||||||
Chimei Innolux G101ICE-L01 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 28pcs / box | 12.02 Kgs | 435*350*275 mm |
