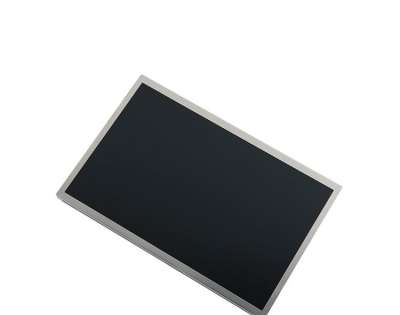

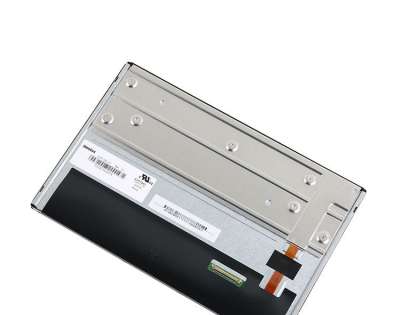

1、Innolux CHIMEI G101ICE-LH2 Application Details
Basic Information : | Brand | Innolux | Model | G101ICE-LH2 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial，Ourdoor High Brightness | |
Screen Size | 10.1 inch | |||
Environment : | Storage Temp. | -40 ~ 85 °C | Operating Temp. | -30 ~ 80 °C |
RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) | |
Typical Features : | Wide Temperature，Ultra High Brightness，WLED Backlight，Life>=50K hours,With LED Driver,180°Reverse，6/8 bit，Matte | |||
2、Innolux G101ICE-LH2 Mechanical Details
Pixel Features : | Resolution | 1280(RGB)×800, WXGA | Dot Pitch(mm) | 0.0565×0.1695 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1695×0.1695 (H×V) [149PPI] | |
Mechanical Size : | Active Area(mm) | 216.96(H) × 135.6(V) | Bezel Area(mm) | 218.96(H) × 137.6(V) |
Outline Dim.(mm) | 230.7(H) × 152.55(V) | Depth(mm) | 6.5±0.5 | |
Outline Features : | Form Style | Flat Rectangle | Shape Style | |
Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
Mounting : | Side mounting holes (4-M2) on left, right bezel | |||
Other Spec : | Weight | TBD | Treatment | Antiglare, Hard coating (3H) |
3、Innolux G101ICE-LH2 Optical Details
Basic Information : | Luminance(cd/m²) | 1200 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 13/12 (Typ.)(Tr/Td) | |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(5 points) | |
1931 Color Gamut : | NTSC Ratio | - | sRGB | 96% coverage |
Adobe RGB | 74% coverage | DCI-P3 | 76% coverage | |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4、Innolux G101ICE-LH2 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
Total Consumption : | 12W (Typ.) |
5、Innolux G101ICE-LH2 Interface Details
Signal Electrical : | Input Current | 190/230mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||||
Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) | |||||
Interface Features : | Position | - | Physical Type | Connector | ||||
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
I-PEX | 20455-030E-76 | 0.5 mm | 30 pins | 1 pcs | ||||
6、Innolux G101ICE-LH2 Lightting Details
Lamp Features : | Lamp Type | WLED | Amount | - | Position | Edge light type |
Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | |
Interface Features : | Position | - | Physical Type | Included in signal interface | ||
Backlight Driver : | With LED Driver | |||||
Driver Electrical : | Input Voltage | 12.0V (Typ.) | Input Current | 0.86/1.0A (Typ./Max.) | ||
Consumption | 10.3/12W (Typ./Max.) | |||||
7、Innolux G101ICE-LH2 Packing Details
Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
28 pcs / box | - | 435×350×275 mm |
