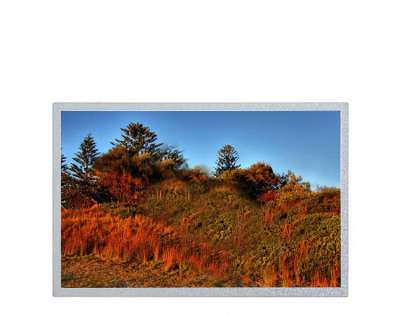

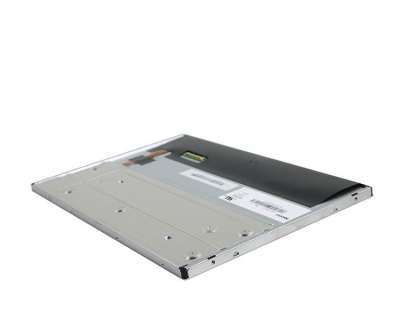

1、Innolux G101ICE-LH1 Application Details
Basic Information : | Brand | TIANMA | Model | G101ICE-LH1 |
Type | LCM a-Si TFT-LCD | Used For | Industrial | |
Screen Size | 10.1" | Alias | ||
Environment : | Storage Temp. | -30 ~ 80 °C | Operating Temp. | -40 ~~ 85 °C |
RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) | |
Typical Features : | Wide Temperature，WLED Backlight，Life≥50K hours，With LED Driver,180°Reverse，6/8bit,Matte | |||
2、Innolux G101ICE-LH1 Mechanical Details
Pixel Features : | Resolution | 1280(RGB)×800 [WXGA] | Dot Pitch(mm) | 0.0565×0.1695 mm |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1695×0.1695 mm [149PPI] | |
Mechanical Size : | Active Area(mm) | 216.96(W)×135.6(H) mm | Overall Dim. | 230.7(W)×152.55(H) mm |
Bezel Opening | 218.96(W)×137.6(H) mm | Depth(mm) | 6.5±0.5 mm | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
Other Spec : | Weight | 300/315g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
3、Innolux G101ICE-LH1 Optical Details
Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 13/12 (Typ.)(Tr/Td) (ms) | |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(5 points) | |
1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 96% coverage |
Adobe RGB | 74% coverage | DCI-P3 | 76% coverage | |
Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、Innolux G101ICE-LH1 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
Power Consumption : | 6.0W (Typ.) |
5、Innolux G101ICE-LH1 Interface Details
Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 190/230mA (Typ./Max.) | ||
Consumption | - | |||||
Signal Type : | LVDS (1 ch, 6/8-bit) | |||||
Interface Features: | Position | - | Type | FPC | Connector | |
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
I-PEX | 20455-030E-76 | 1 pcs | 30 pins | 0.5 mm | ||
6、Innolux G101ICE-LH1 Backlight Details
Lamp Features : | Lamp Type | WLED | Amount | - | Position | Edge light type |
Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | |
Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
Lamp Electrical: | Input Voltage | 12.0V (Typ.) | Input Current | 0.42/0.50A (Typ./Max.) | ||
Consumption | 5.0/6.0W (Typ./Max.) | |||||
7、Innolux G101ICE-LH1 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
28 | 435×350×275 | 12.02 |
