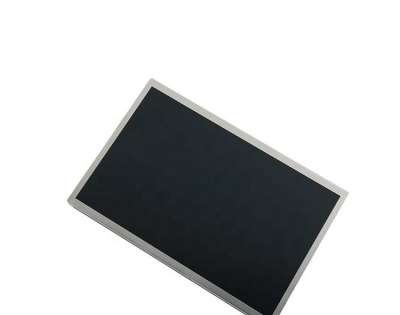

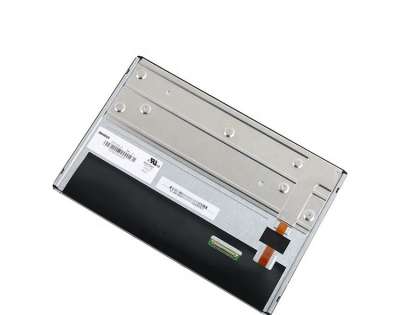

1、 Innolux G101ICE-LM1 Application Details
Basic Information : | Brand | INNOLUX&CHIMEI | Model | G101ICE-LM1 |
Type | a-Si TFT-LCD , LCM | |||
Screen Size | 10.1 inch | |||
Environment : | Storage Temp. | -20 ~ 70 °C | Operating Temp. | -10 ~ 60 °C |
RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) | |
Typical Features : | WLED Backlight，Life≥50K hours，With LED Driver，180°Reverse，6/8bit，Matte | |||
2、Innolux G101ICE-LM1 Mechanical Details
Pixel Features : | Resolution | 1280(RGB)×800, WXGA | Dot Pitch(mm) | 0.0565×0.1695 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.1695×0.1695 (H×V) [149PPI] | |
Mechanical Size : | Active Area(mm) | 216.96(H) × 135.6(V) | Bezel Area(mm) | - |
Outline Dim.(mm) | 227.42(H) × 147.69(V) | Depth(mm) | 2.55/2.8 (Typ./Max.) | |
Outline Features : | Form Style | Flat Rectangle | Shape Style | |
Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
Mounting : | Without | |||
Other Spec: | Weight | 183/190g (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
3、Innolux G101ICE-LM1 Optical Details
Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 13/12 (Typ.)(Tr/Td) | |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6485K | White Uniformity | 1.25 (Max.)(5 points) | |
1931 Color Gamut : | NTSC Ratio | 66% | sRGB | 91% coverage |
Adobe RGB | 69% coverage | DCI-P3 | 69% coverage | |
Rec.2020 | 50% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4、 Innolux G101ICE-LM1 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
Total Consumption : | 3.0W (Typ.) |
5、Innolux G101ICE-LM1 Interface Details
Signal Electrical | Voltage Supply | 5.0V (Typ.) | Current Supply | 150/200mA (Typ./Max.) | ||
Signal Type : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
I-PEX | 20455-030E-76 | 0.5 mm | 30 pins | 1 pcs | ||
6、Innolux G101ICE-LM1 Backlight Details
Backlight Features : | Type | WLED | Quantity | - | Position | Edge light type |
Replacement | - | Shape | - | Life Time | 50K(Min.) Hours | |
Interface Features : | Position | - | Type | Included in signal interface | ||
Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 0.17/0.2A (Typ./Max.) | ||
Consumption | 2.0/2.4W (Typ./Max.) | |||||
7、Innolux G101ICE-LM1 Packing Details
Package Box : | Quantity | Weight | Box Size |
28 pcs / box | 12.0 Kgs | 435×350×275 mm (L×W×H) |
