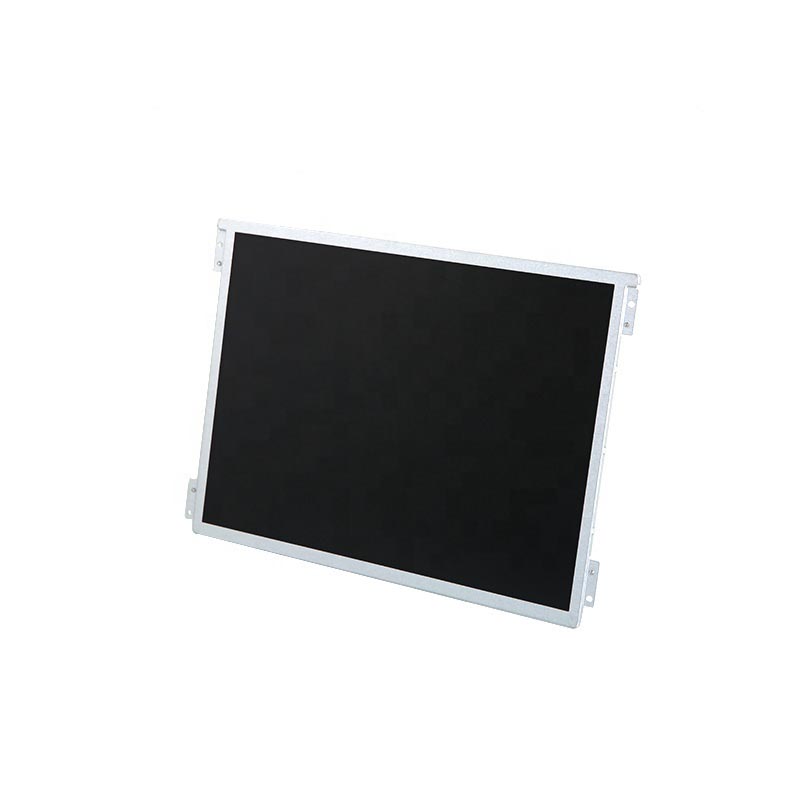

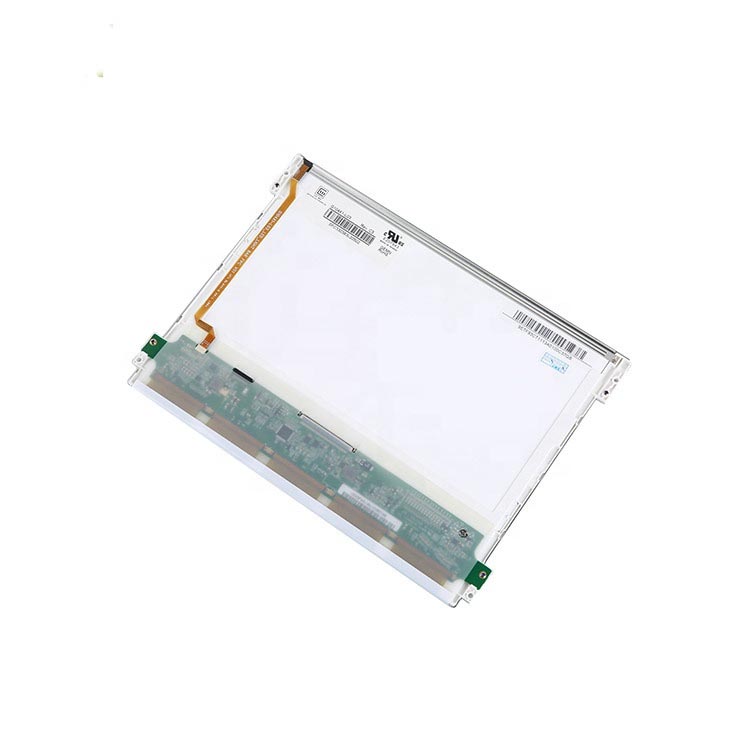

Chimei Innolux G104X1-L03 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G104X1-L03 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 10.4” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -25 ~~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s² ) | |
| Features : | WLED Backlight，180°;Reverse,With LED Driver, 6/8 bit,Matte | |||
Chimei Innolux G104X1-L03 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14/11 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 88/88/88/88(Typ.)(CR≥10) | Operating Mode | Super MVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | White Variation | 1.40 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 73% coverage |
| Adobe RGB | 55% coverage | DCI-P3 | 55% coverage | |
| Rec.2020 | 39% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G104X1-L03 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.0685*0.2055 mm | Pixel Pitch (W*H) | 0.2055*0.2055 mm [123PPI] | |
| Physical Size : | Active Viewing(mm) | 210.4(W)*157.8(H) mm | Bezel Area (mm) | 215.4(W)*161.8(H) mm |
| Outline Dim.(mm) | 238.6(W)*175.8(H) mm | Depth(mm) | 6.0/7.97 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3(W:H) | Orientation | Landscape type | |
| Fixation : | Face mounting holes (4-Ф2.8) on left, right bezel | |||
| Other Spec : | Weight | 280g (Typ.) | Surface | Antiglare |
Chimei Innolux G104X1-L03 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
Chimei Innolux G104X1-L03 Interface Details
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 570±50mA | ||||
| Consumption | 1.9W (Typ.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| JAE | FI-XB30SRL-HF11 | 1.0mm | 30pins | 1 pcs | LVDS-30P1C8B-085A | |||
Chimei Innolux G104X1-L03 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 30K(Min.) (Hours) | ||||||||
| Lamp Electrical | Input Voltage | 26V (Typ.) | Input Current | - | |||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||||
| ACES | 91208-01001 | 1.0 mm | 10 pins | 1 pcs | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Driver Electrical : | Input Voltage | 12.0±5.0V | Input Current | 0.3/0.35A (Typ./Max.) | |||||||||
| Consumption | 3.1W (Typ.) | ||||||||||||
Chimei Innolux G104X1-L03 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 18pcs / box | 8.3 Kgs | 465*362*314 mm |
