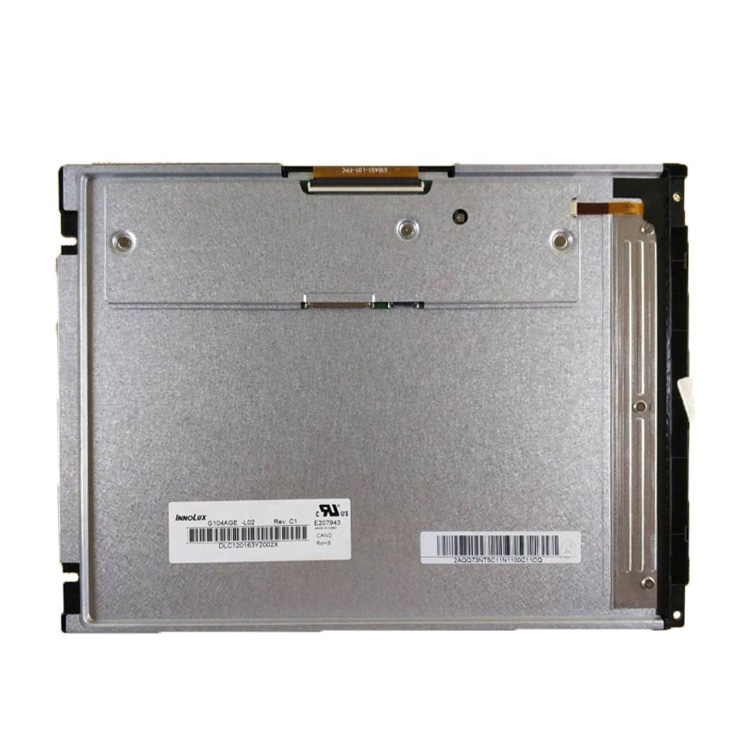

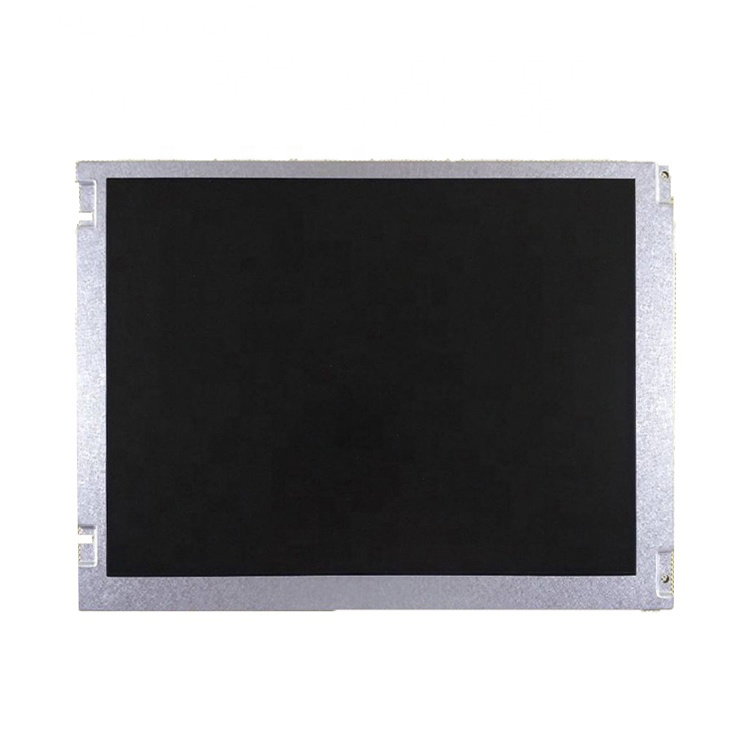

Chimei Innolux G104AGE-L02 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G104AGE-L02 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 10.4” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s² ) | |
| Features : | Wide Temperature，WLED Backlight，Life>=50K hours,180°;Reverse,With LED Driver, 6/8 bit,Matte | |||
Chimei Innolux G104AGE-L02 Optical Details
| Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 5/11 (Typ.)(Tr/Td) | |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.303; Wy:0.344 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6872K | White Variation | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 72% coverage |
| Adobe RGB | 55% coverage | DCI-P3 | 55% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G104AGE-L02 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600, SVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.088*0.264 (H*V) | Pixel Pitch (mm) | 0.264*0.264 (H*V) [96PPI] | |
| Physical Size : | Active Viewing(mm) | 211.2(H) *158.4(V) | Bezel Area (mm) | 214.8(H) *162.7(V) |
| Outline Dim.(mm) | 243(H) × 184(V) | Depth(mm) | 8.5 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3(W:H) | Orientation | Landscape type | |
| Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Spec : | Weight | 505/540g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G104AGE-L02 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Consumption : | 4.35W (Typ.) |
Chimei Innolux G104AGE-L02 Interface Details
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 410/495mA (Typ./Max.) | ||||
| Consumption | 1.35/1.63W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| STARCONN | 107A20-0022RA-G3-R | 1.0mm | 20pins | 1 pcs | LVDS-20P1C8B-080A | |||
Chimei Innolux G104AGE-L02 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | ||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||||
| E&T | 3823K-F05N-00L | 1.25 mm | 5 pins | 1 pcs | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Driver Electrical : | Input Voltage | 12.0±5.0V | Input Current | 0.25/0.3A (Typ./Max.) | |||||||||
| Consumption | 3.0/3.6W (Typ./Max.) | ||||||||||||
Chimei Innolux G104AGE-L02 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 16pcs / box | 15 Kgs | 435*350*275 mm |
