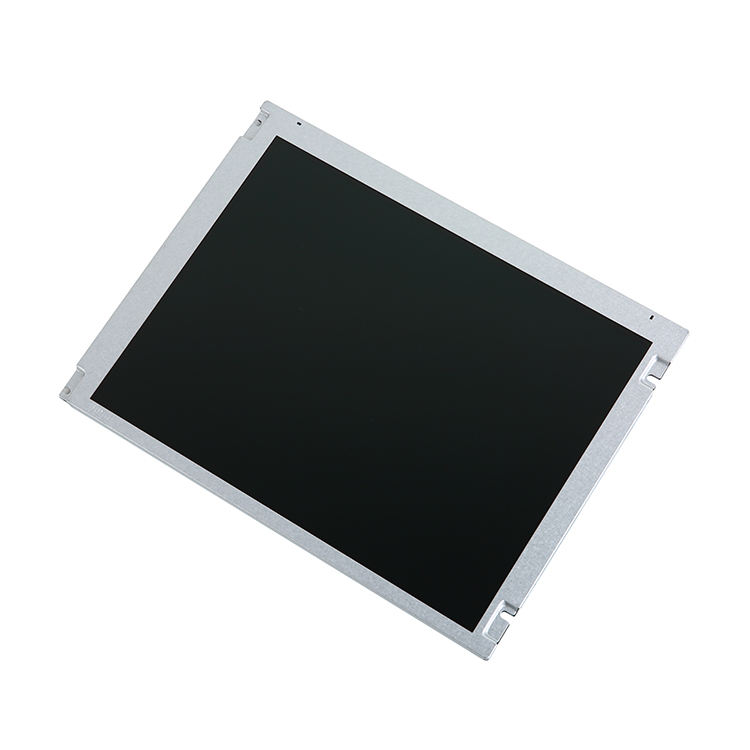

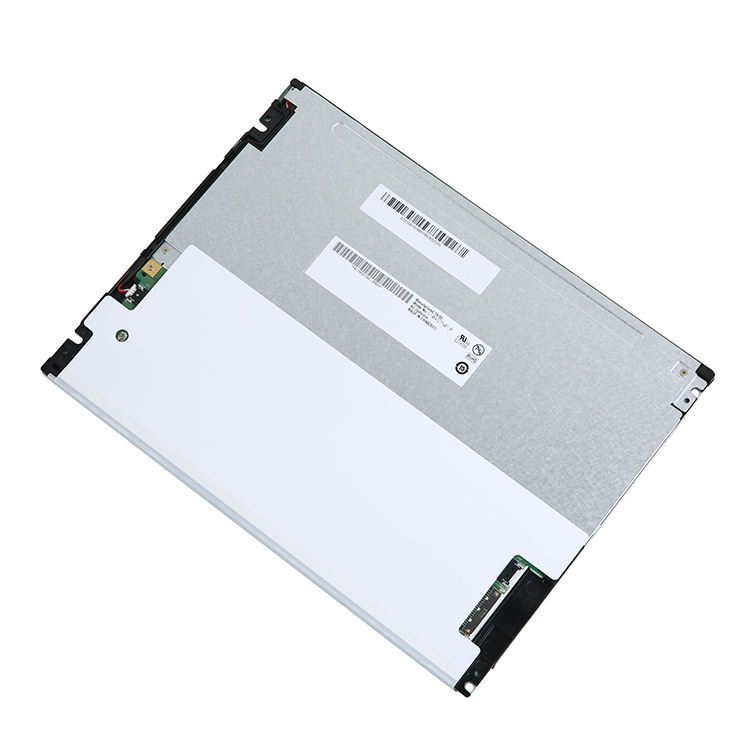

Innolux G104XCE-LM1 Application Details
| Basic Info : | Panel Brand | INNOLUX | Panel Model | G104XCE-LM1 |
| Diagonal Size | 10.4" | Application | Industrial | |
| Panel Type | a-Si TFT-LCD , LCM | |||
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -20 ~ 70 °C |
| RoHS | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
| Specific Features : | WLED Backlight，Life>=50K hours,With LED Driver,180°;Reverse，6/8bit，Matte | |||
Innolux G104XCE-LM1 Mechanical Details
| Pixel Features | Pixel Format | 1024(RGB)*768, XGA | Dot Pitch | 0.0685*0.2055 (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2055*0.2055 mm (H*V) [123PPI] | |
| Mechanical Size : | Display Area | 210.4*157.8 mm (H*V) | Outline Dim. | 215.4*161.8 mm (H*V) |
| Outline Dim. | 238.6*175.8 mm (H*V) | Outline Depth | 6.0/7.97 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (4- Φ2.8) on left, right slugs | |||
| Other Features : | Weight | 280/291g (Typ./Max.) | Surface | Antiglare |
Innolux G104XCE-LM1 Optical Details
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 13/12 (Typ.)(Tr/Td) ms | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | Uniformity | 1.25/1.39 (Typ./Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 95% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux G104XCE-LM1 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 6.17W (Typ.) |
Innolux G104XCE-LM1 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) (Hours) |
| Replacement | - | Lamp Shape | - | Position | Edge light type | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| ACES | 91208-01001-H01 | 1.0 mm | 10 pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 12±1.2V | Current Input | 0.38/0.44A (Typ./Max.) | ||
| Consumption | 4.5/5.3W (Typ./Max.) | |||||
Innolux G104XCE-LM1 Interface Detail
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 505/610mA (Typ./Max.) | ||
| Consumption | 1.67/2.01W (Typ./Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STM | MSCK2407P30D | 1.0 mm | 30 pins | 1 pcs | LVDS-30P1C8B-085A | |
Innolux G104XCE-LM1 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 24 pcs / box | 13.1 Kgs | 490*350*320 mm |
