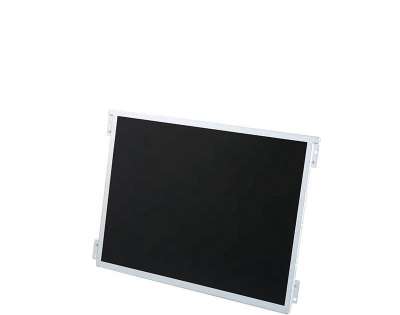

1、Innolux G104XCE-LH1 Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G104XCE-LH1 |
Diagonal Size | 10.4" | Application | Industrial，Outdoor High Brightness | |
Panel Type | a-Si TFT-LCD , LCM | |||
Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -30 ~ 85 °C |
RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
Specific Features : | Wide Temperature，Ultra High Brightness，Lamp Repaceable，WLED Backlight，Life≥50K hours，With LED Driver，180°Reverse，6/8bit，Matte | |||
2、Innolux G104XCE-LH1 Mechanical Details
Pixel Features : | Pixel Format | 1024(RGB)×768, XGA | Dot Pitch | 0.0685×0.2055 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.2055×0.2055 mm (H×V) [123PPI] | |
Mechanical Size : | Display Area | 210.4×157.8 mm (H×V) | Outline Dim. | 215.4×161.8 mm (H×V) |
Outline Dim. | 225.5×176.3 mm (H×V) | Outline Depth | 8.0/9.2 (Typ./Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 4:3 (H:V) | Shape Style | ||
Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
Other Features : | Weight | 320/335g (Typ./Max.) | Surface | Antiglare |
3、Innolux G104XCE-LH1 Optical Details
Basic Information : | Brightness | 1000 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 13/12 (Typ.)(Tr/Td) ms | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | Uniformity | 1.25/1.39 (Typ./Max.)(5 points) | |
1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 95% coverage |
Adobe RGB | 73% coverage | DCI-P3 | 75% coverage | |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4、Innolux G104XCE-LH1 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | Yes (180°) |
Power Consumption : | 9.87W (Typ.) |
5、Innolux G104XCE-LH1 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) Hours |
Replacement | Replaceable | Lamp Shape | - | Position | Edge light type | |
Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
ACES | 91208-01001-H01 | 1.0 mm | 10 pins | 1 pcs | ||
Driver Electrical : | Voltage Input | 12±1.2V | Current Input | 0.67/0.79A (Typ./Max.) | ||
Consumption | 8.2/9.5W (Typ./Max.) | |||||
6、Innolux G104XCE-LH1 Interface Details
Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 505/610mA (Typ./Max.) | ||
Consumption | 1.67/2.01W (Typ./Max.) | |||||
Interface Features : | Type | Connector | Position | - | ||
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
STM | MSCK2407P30D | 1.0 mm | 30 pins | 1 pcs | LVDS-30P1C8B-085A | |
7、Innolux G104XCE-LH1 Carton Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
24 | 490×350×320 | 13.10 |
