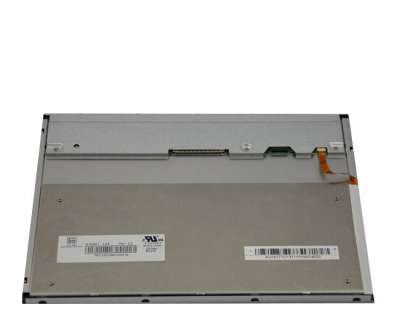

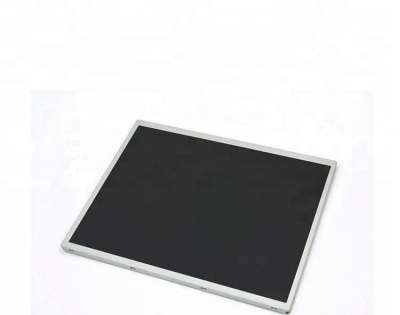

1、Innolux G104ACE-LH1 Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G104ACE-LH1 |
Diagonal Size | 10.4" | Application | Industrial | |
Panel Type | a-Si TFT-LCD , LCM | |||
Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -30 ~ 85 °C |
RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
Specific Features : | Wide Temperature，WLED Backlight，Life≥50K hours，With LED Driver，180°Reverse，6/8bit，Matte | |||
2、Innolux G104ACE-LH1 Optical Features
Basic Information : | Luminance | 400 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) (ms) | |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | 6485K | White Uniformity | 1.25/1.39 (Typ./Max.)(5 points) | |
1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 94% coverage |
Adobe RGB | 73% coverage | DCI-P3 | 75% coverage | |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
3、Innolux G104ACE-LH1 Mechanical Details
Pixel Features : | Number of Pixel | 800(RGB)×600 [SVGA] | Arrangement | RGB Vertical Stripe |
Dot Pitch(W×H) | 0.088×0.264 mm | Pixel Pitch(W×H) | 0.264×0.264 mm [96PPI] | |
Physical Size : | Active Viewing | 211.2(W)×158.4(H) mm | Overall Dim. | 243(W)×184(H) mm |
Bezel Opening | 214.2(W)×161.6(H) mm | Overall Depth | 6.2/8.5 (Typ./Max.) mm | |
Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio(W:H) | 4:3 | Shape Style | ||
Fixation : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
Other Detail : | Mass | TBD | Surface | Antiglare, Hard coating (2H) |
4、Innolux G104ACE-LH1 Electronics Details
Refresh Rate : | 60Hz |
Reverse Scan : | Yes (180°) |
Power Consumption : | 6.0W (Typ.) |
5、Innolux G104ACE-LH1 Interface Details
Signal Electrical : | Input Current | 120/135mA (Typ./Max.) | Input Voltage | 5.0V (Typ.) | ||
Consumption | - | Signal Interface | LVDS (1 ch, 6/8-bit) | |||
Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
STM | MSAK24025P30MB | 1 pcs | 0.5 mm | 30 pins | ||
6、Innolux G104ACE-LH1 Lightting Details
Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
Exchange | - | Amount | - | Life | 50K(Min.) (Hours) | |
Interface Features : | Position | - | Physical Type | Included in signal interface | ||
Backlight Driver : | With LED Driver | |||||
Driver Electrical : | Input Current | 0.45/0.53A (Typ./Max.) | Input Voltage | 12±1.2V | ||
Consumption | 5.4W (Typ.) | |||||
7、Innolux G104ACE-LH1 Packing Details
Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
16 | 435×350×275 | 9.20 |
