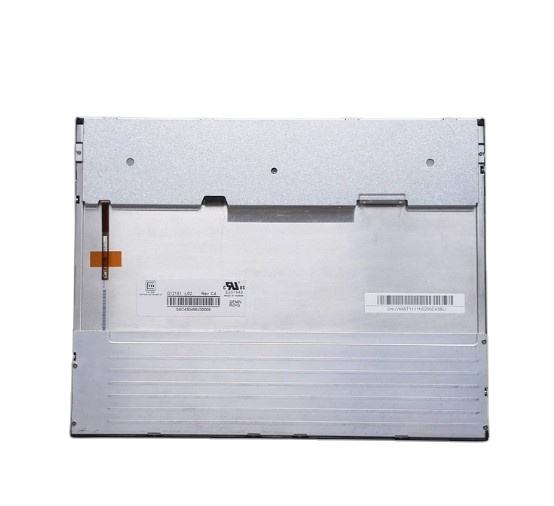

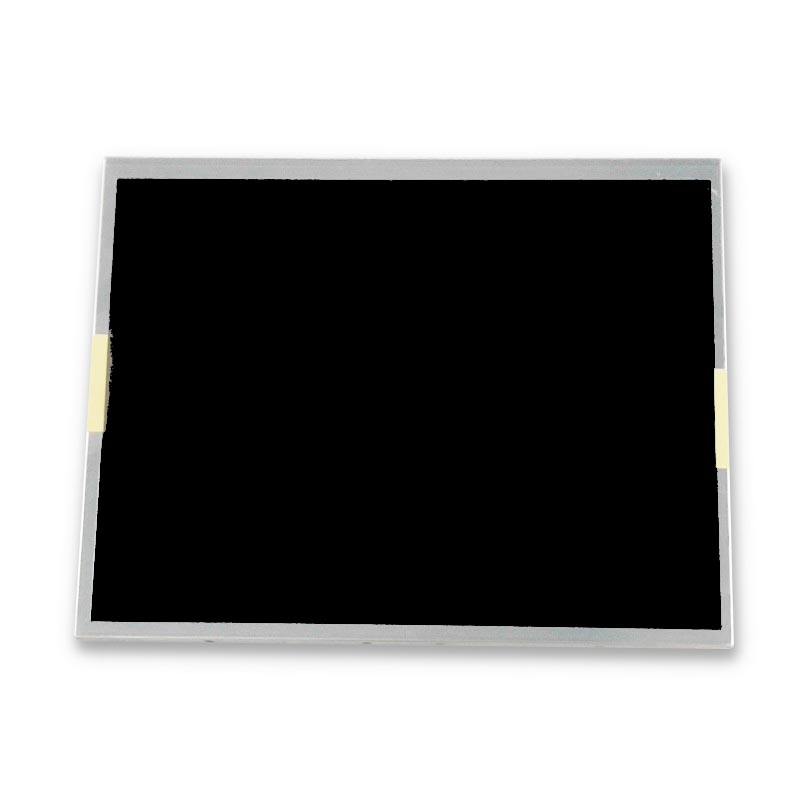

Chimei Innolux G121S1-L02 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G121S1-L02 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 12.1” | Designed For | Industrial,Automotive Display | |
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature，Hight Brightness,Lamp Repaceable, WLED Backlight，Life>=50K hours,With LED Driver, U/D,L/R Reverse,6/8 bit, Matte | |||
Chimei Innolux G121S1-L02 Optical Details
| Basic Information : | Luminance | 600 cd/m²(Typ.) | Contrast Ratio | 1500:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | Super MVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.40 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G121S1-L02 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600 [SVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.1025*0.3075 mm (H*V) | Pixel Pitch | 0.3075*0.3075 mm (H*V) [82PPI] | |
| Physical Size : | Active Viewing(mm) | 246*184.5 mm (H*V) | Bezel Area (mm) | 249.0*187.5 mm (H*V) |
| Outline Dim.(mm) | 260.5*204 mm (H*V) | Depth(mm) | 8.4±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3(W:H) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Spec : | Weight | 520/550g (Typ./Max.) | Surface | Antiglare (Haze 22%), Hard coating (3H) |
Chimei Innolux G121S1-L02 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Total Consumption : | 9.1W (Typ.) |
Chimei Innolux G121S1-L02 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 3.3/5.0V (Typ.)(VCC) | Current Input | 460/310mA (Typ.)(3.3V/5.0V) | |||||||
| Consumption | 1.52/1.85W (Typ./Max.)(3.3V) | ||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| JAE | FI-SEB20P-HFE | 1.25mm | 20pins | 1 pcs | LVDS-20P1C8B-150A | ||||||
Chimei Innolux G121S1-L02 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Bottom side) | |||||||
| Exchange | Replaceable | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | ||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||||
| ACES | 91208-01001-H01 | 1.0 mm | 10 pins | 1 pcs | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Driver Electrical : | Input Voltage | 12.0±1.2V | Input Current | 0.54A (Typ.) | |||||||||
| Consumption | 6.48W (Typ.) | ||||||||||||
Chimei Innolux G121S1-L02 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 16pcs / box | 15 Kgs | 465*362*314 mm |
