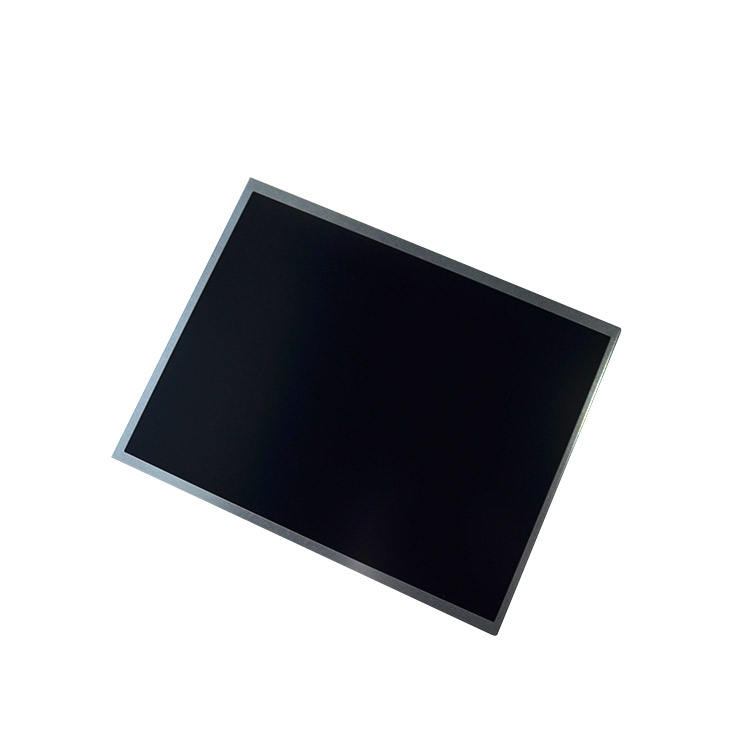

Chimei Innolux G121X1-L02 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G121X1-L02 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 12.1” | Designed For | Industrial,Automotive Display | |
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature，Lamp Repaceable, Life>=50K hours,Glossy | |||
Chimei Innolux G121X1-L02 Optical Details
| Basic Information : | Luminance | 500 cd/m²(Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 6/17 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.308; Wy:0.318 | Display Colors | 262K (6-bit) |
Color Temperature | 6879K | White Variation | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 64% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G121X1-L02 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.080*0.240 mm | Pixel Pitch (W*H) | 0.240*0.240 mm [105PPI] | |
| Physical Size : | Active Viewing(mm) | 245.76(W)*184.32(H) mm | Bezel Area (mm) | 249.0(W)*187.5(H) mm |
| Outline Dim.(mm) | 260.5(W)*204(H) mm | Depth(mm) | 12.2±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3(W:H) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Spec : | Weight | 700g (Max.) | Surface | Glare (Haze 0%), Hard coating (3H) |
Chimei Innolux G121X1-L02 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
Chimei Innolux G121X1-L02 Interface Details
| Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 510mA (Typ.) | |||||||
| Consumption | 1.68W (Typ.) | ||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| JAE | FI-SEB20P-HFE | 1.25mm | 20pins | 1 pcs | LVDS-20P1C6B-070A | ||||||
Chimei Innolux G121X1-L02 Backlight Details
| Lamp Features : | Lamp Type | CCFL | Quantity | 2 pcs | Position | Edge light type (Top and Bottom) | |||
| Exchange | Replaceable | Lamp Shape | Straight | Lamp Life | 50K(Min.) (Hours) | ||||
| Lamp Electrical : | Input Voltage | 500±50V | Input Current | 2.0/8.0/8.5mA (Min./Typ./Max.) | |||||
| Frequency | 45/80KHz (Min./Max.) | Turn-on Voltage | - | ||||||
| Consumption | 8.0W (Typ.) | ||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||
| JST | BHR-03VS-1 | 4.0 mm | 3 pins | 2 pcs | BLL-3PINS-HNL | ||||
| Backlight Driver : | No | ||||||||
Chimei Innolux G121X1-L02 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 15pcs / box | 11.15 Kgs | 461*362*314 mm |
