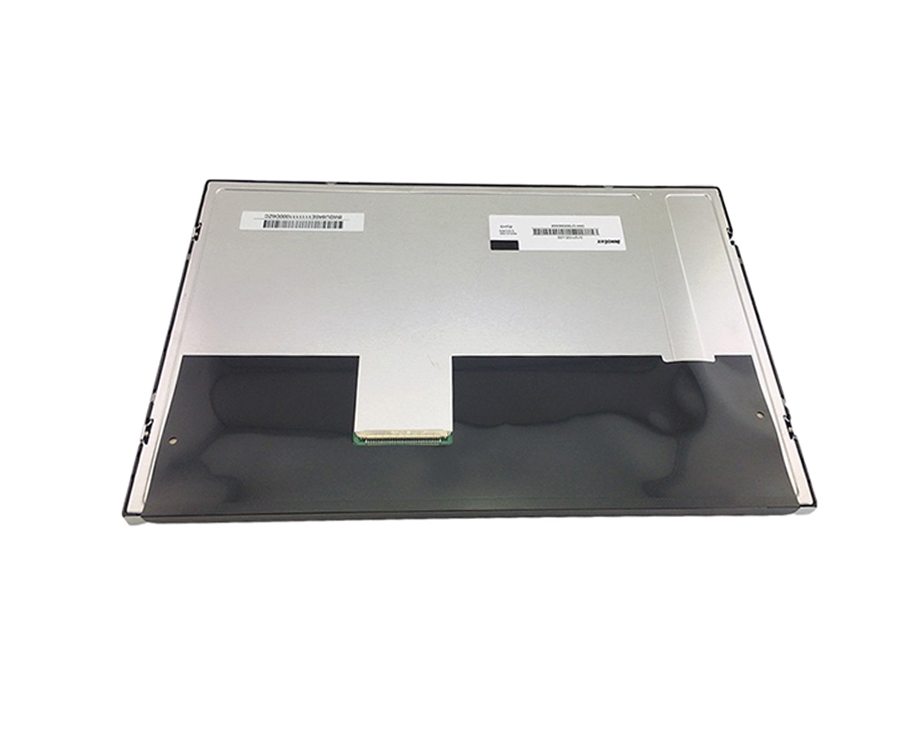

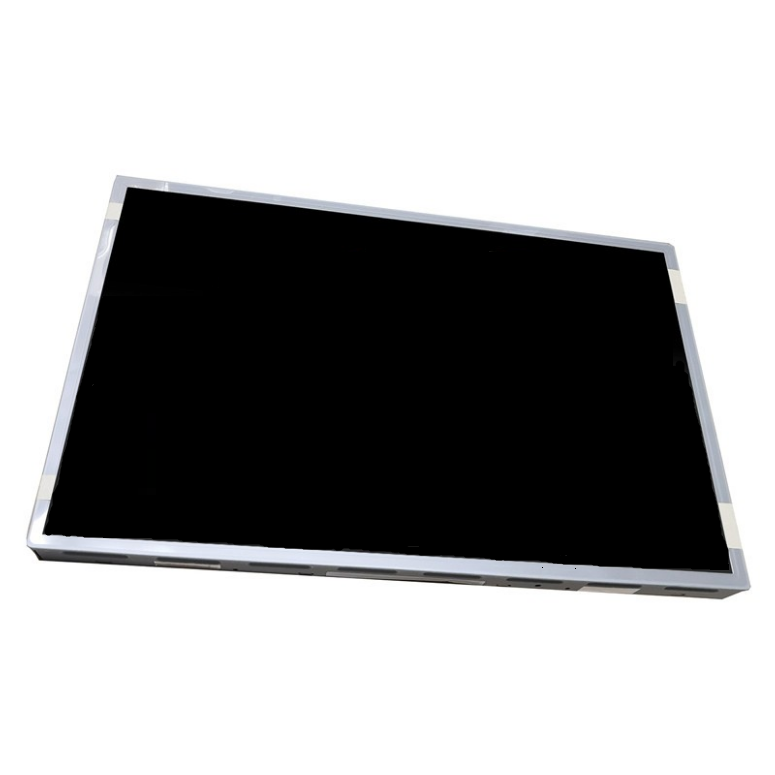

Chimei Innolux G121XCE-P01 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G121XCE-P01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 12.1” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 90 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | Wide Temperature，Upside I/F,U/D,L/R Reverse，6/8bit，Matte | |||
Chimei Innolux G121XCE-P01 Optical Details
| Basic Information : | Luminance | - | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.325; Wy:0.371 | Display Colors | 262K/16.2M (6-bit / 8-bit) |
Color Temperature | 5754K | White Variation | - | |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 91% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | No | Transmittance | 3.45% (Typ.)(with Polarizer) |
Chimei Innolux G121XCE-P01 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.080*0.240 mm | Pixel Pitch (W*H) | 0.240*0.240 mm [105PPI] | |
| Physical Size : | Active Viewing(mm) | 245.76(W)*184.32(H) mm | Bezel Area (mm) | - |
| Outline Dim.(mm) | 255.83*195.38 mm (H*V) | Depth(mm) | - | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (W:H) | Orientation | Landscape type | |
| Other Spec : | Weight | 141/147g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G121XCE-P01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| D-IC Detail : | Built-in 3 source COF + 2 gate COG chips |
Chimei Innolux G121XCE-P01 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 370/450mA (Typ./Max.) | |||||||
| Consumption | 1.22/1.49W (Typ./Max.) | ||||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| STARCONN | 076B20-0048RA-G4 | 1.25mm | 20pins | 1 pcs | LVDS-20P1C8B-160A | ||||||
Chimei Innolux G121XCE-P01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange | - | Lamp Shape | - | Lamp Life | - |
Chimei Innolux G121XCE-P01 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 24pcs / box | 8.7 Kgs | 475*390*320 mm |
