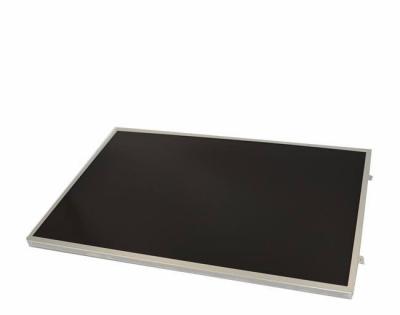

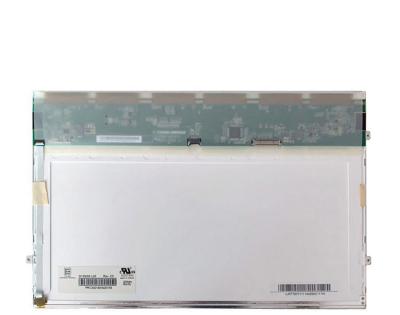

Chimei Innolux G133IGE-L03 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G133IGE-L03 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 13.3” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature,WLED Backlight，With LED Driver, Reverse I/F,6/8bit，Matte | |||
Chimei Innolux G133IGE-L03 Optical Details
| Basic Information : | Luminance | 500 cd/m²(Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 6/10 (Typ.)(Tr/Td) | |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.40 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 43% | sRGB | 60% coverage |
| Adobe RGB | 45% coverage | DCI-P3 | 45% coverage | |
| Rec.2020 | 32% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G133IGE-L03 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.0745*0.2235 (H*V) | Pixel Pitch (mm) | 0.2235*0.2235 (H*V) [113PPI] | |
| Physical Size : | Active Viewing(mm) | 286.08(H) * 178.8(V) | Bezel Area (mm) | 289.1(H) × 181.8(V) |
| Outline Dim.(mm) | 308.7(H) *195(V) | Depth(mm) | 6.6/8.2 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Fixation : | Face mounting holes (3-M2); Side mounting holes (6-M2) | |||
| Other Spec : | Weight | 382/397g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G133IGE-L03 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 6.9W |
Chimei Innolux G133IGE-L03 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 3.3/5.0V (Typ.) | Current Input | 0.35/0.45/0.55A (Min./Typ./Max.) | |||||||
| Consumption | 5.4W (Typ.) | ||||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| HRS | DF19KR-20P-1H | 1.0mm | 20pins | 1 pcs | LVDS-20P1C8B-220A | ||||||
Chimei Innolux G133IGE-L03 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | ||||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 30K(Min.) (Hours) | |||||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | ||||||||
| E&T | 3808K-F05N-03L | 1 pcs | 5 pins | 1.25 mm | ||||||||||
| Backlight Driver : | With LED Driver | |||||||||||||
| Driver Electrical : | Input Current | 12.0±1.2V | Input Voltage | 430mA (Typ.) | ||||||||||
| Consumption | 5.16W (Typ.) | |||||||||||||
Chimei Innolux G133IGE-L03 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 20pcs / box | 13 Kgs | 520*310*415 mm |
