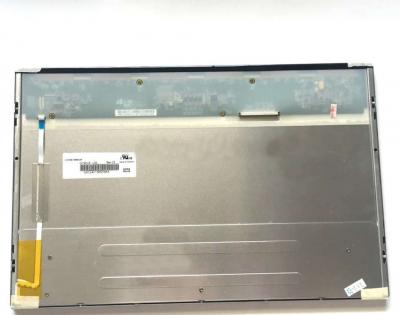

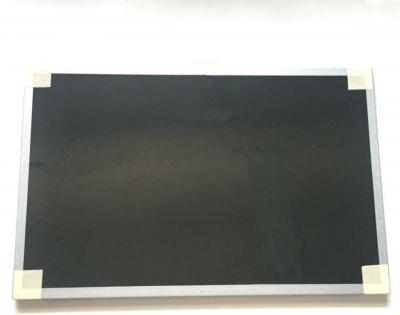

Chimei Innolux G154I1-L01 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G154I1-L01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 15.4” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -40 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature，Hight Brightness，Lamp Repaceable，Life>=50K hours,180°Reverse，Glossy | |||
Chimei Innolux G154I1-L01 Optical Details
| Basic Information : | Luminance | 700 cd/m²(Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 5/11 (Typ.)(Tr/Td) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K (6-bit) |
Color Temperature | 6485K | White Variation | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 61% | sRGB | 84% coverage |
| Adobe RGB | 64% coverage | DCI-P3 | 63% coverage | |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
Chimei Innolux G154I1-L01 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.08625*0.25875 mm | Pixel Pitch (W*H) | 0.25875*0.25875 mm [98PPI] | |
| Physical Size : | Active Viewing(mm) | 331.2*207 mm (H*V) | Bezel Area (mm) | 334.5(H) × 210.3(V) |
| Outline Dim.(mm) | 352*230 mm (H*V) | Depth(mm) | 15.8±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.29/1.35Kgs (Typ./Max.) | Surface | Glare (Haze 0%), Hard coating (3H), Antireflection |
Chimei Innolux G154I1-L01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
Chimei Innolux G154I1-L01 Interface Details
| Signal Systerm : | LVDS (1 ch, 6-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 410mA (Typ.) | |||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| JAE | FI-SE20P-HFE | 1.25mm | 20pins | 1 pcs | LVDS-20P1C6B-010C | ||||||
Chimei Innolux G154I1-L01 Backlight Details
| Lamp Features : | Lamp Type | CCFL | Quantity | 9S4P | Position | Edge light type (Top and Bottom) | |||||
| Exchange | Replaceable | Lamp Shape | strings | Lamp Life | 50K(Min.) (Hours) | ||||||
| Lamp Electrical : | Voltage Supply | 600±60V | Current Supply | 3.0/7.0/8.0mA (Min./Typ./Max.) | |||||||
| Frequency | 40/55/80KHz (Min./Typ./Max.) | Startup Voltage | - | ||||||||
| Consumption | 16.8W (Typ.) | ||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Backlight Driver : | With LED Driver | ||||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | |||||
| YEONHO | 35001HS-02L | 3.5 mm | 2 pins | 4 pcs | BLL-2PINS-HL | ||||||
| Backlight Driver : | No | ||||||||||
Chimei Innolux G154I1-L01 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 10pcs / box | 14.7 Kgs | 465*362*314 mm |
