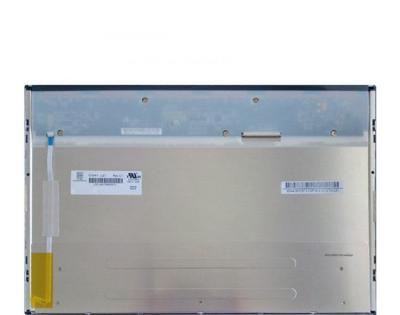

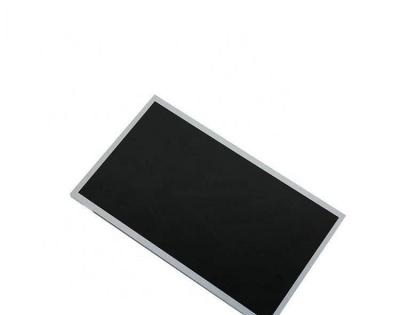

Chimei Innolux G154IJE-L02 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G154IJE-L02 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 15.4” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -10 ~ 70 °C | ST Temperature | -20 ~ 80 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Lamp Repaceable，WLED Backlight，Life>=50K hours,With LED Driver，6/8bit，Matte | |||
Chimei Innolux G154IJE-L02 Optical Details
| Basic Information : | Luminance | 400 cd/m²(Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 15/10 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | MVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 45% | sRGB | 62% coverage |
| Adobe RGB | 47% coverage | DCI-P3 | 47% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G154IJE-L02 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.08625*0.25875 mm (H*V) | Pixel Pitch (W*H) | 0.25875*0.25875 mm (H*V) [98PPI] | |
| Physical Size : | Active Viewing(mm) | 331.2*207 mm (H*V) | Bezel Area (mm) | 334.5*210.3 mm (H*V) |
| Outline Dim.(mm) | 352*230 mm (H*V) | Depth(mm) | 8.7±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 920g (Typ.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G154IJE-L02 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 19.0W (Max.) |
Chimei Innolux G154IJE-L02 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 750/900mA (Typ./Max.) | |||||||
| Consumption | 4.0W (Max.) | ||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| STARCONN | 093G30-B1001A-G4 | 1.0mm | 30pins | 1 pcs | LVDS-30P1C8B-105A | ||||||
Chimei Innolux G154IJE-L02 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 9S5P | Position | Edge light type | |||
| Exchange | Replaceable | Lamp Shape | 5strings | Lamp Life | 50K(Min.) (Hours) | ||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | |||||
| Backlight Driver : | With LED Driver | ||||||||
| Driver Electrical : | Input Current | 1.2±0.1A | Input Voltage | 12.0±1.2V | |||||
| Consumption | 14.4/15.0W (Typ./Max.) | ||||||||
Chimei Innolux G154IJE-L02 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 13pcs / box | 11 Kgs | 465*362*314 mm |
