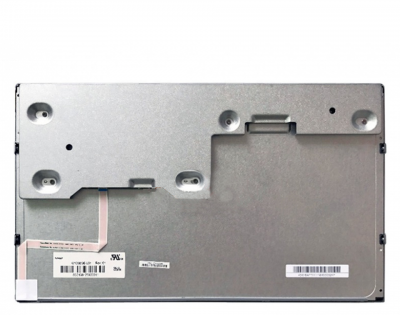

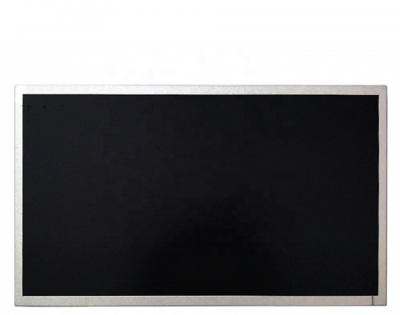

Chimei Innolux G156BGE-L01 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G156BGE-L01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 15.6” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight， Life>=50K hours,With LED Driver，Upside I/F,Matte | |||
Chimei Innolux G156BGE-L01 Optical Details
| Basic Information : | Luminance | 300 cd/m²(Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 3/7 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6485K | White Variation | 1.54 (Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 61% | sRGB | 85% coverage |
| Adobe RGB | 64% coverage | DCI-P3 | 64% coverage | |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G156BGE-L01 Mechanical Details
| Pixel Features : | Number of Pixel | 1366(RGB)*768, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.084*0.252 mm | Pixel Pitch (W×H) | 0.252*0.252 mm [100PPI] | |
| Physical Size : | Active Viewing(mm) | 344.232(W)*193.536(H) mm | Bezel Area (mm) | 347.53(W)*196.84(H) mm |
| Outline Dim.(mm) | 363.8(W)*215.92(H) mm | Depth(mm) | 16.85±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Fixation : | Side mounting holes, Rear mounting holes | |||
| Other Spec : | Weight | 1.19/1.25Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G156BGE-L01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 10.95W |
Chimei Innolux G156BGE-L01 Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 0.22/0.27A (Typ./Max.) | |||||||
| Consumption | 1.35/1.60W (Typ./Max.) | ||||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| P-TWO | 187114-30091 | 1.0mm | 30pins | 1 pcs | LVDS-30P1C8B-180A | ||||||
Chimei Innolux G156BGE-L01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Bottom side) | |||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | ||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | |||||||
| CviLux | CI4205M2HRP-NH | 1.25 mm | 5 pins | 1 pcs | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Driver Electrical : | Input Voltage | 12.0±1.2V | Input Current | 0.8±0.2A | |||||||||
| Consumption | 9.6W (Typ.) | ||||||||||||
Chimei Innolux G156BGE-L01 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 10pcs / box | 17.0Kgs | 465*362*314 mm |
