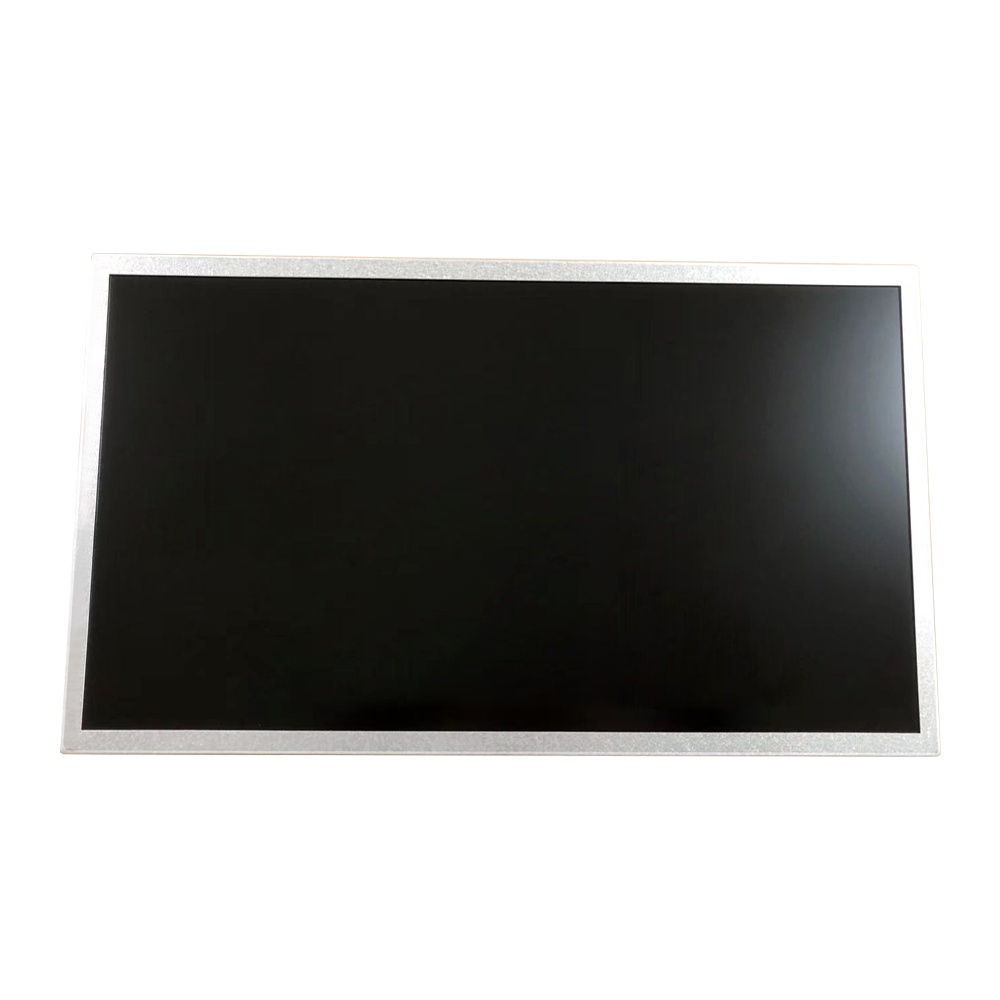

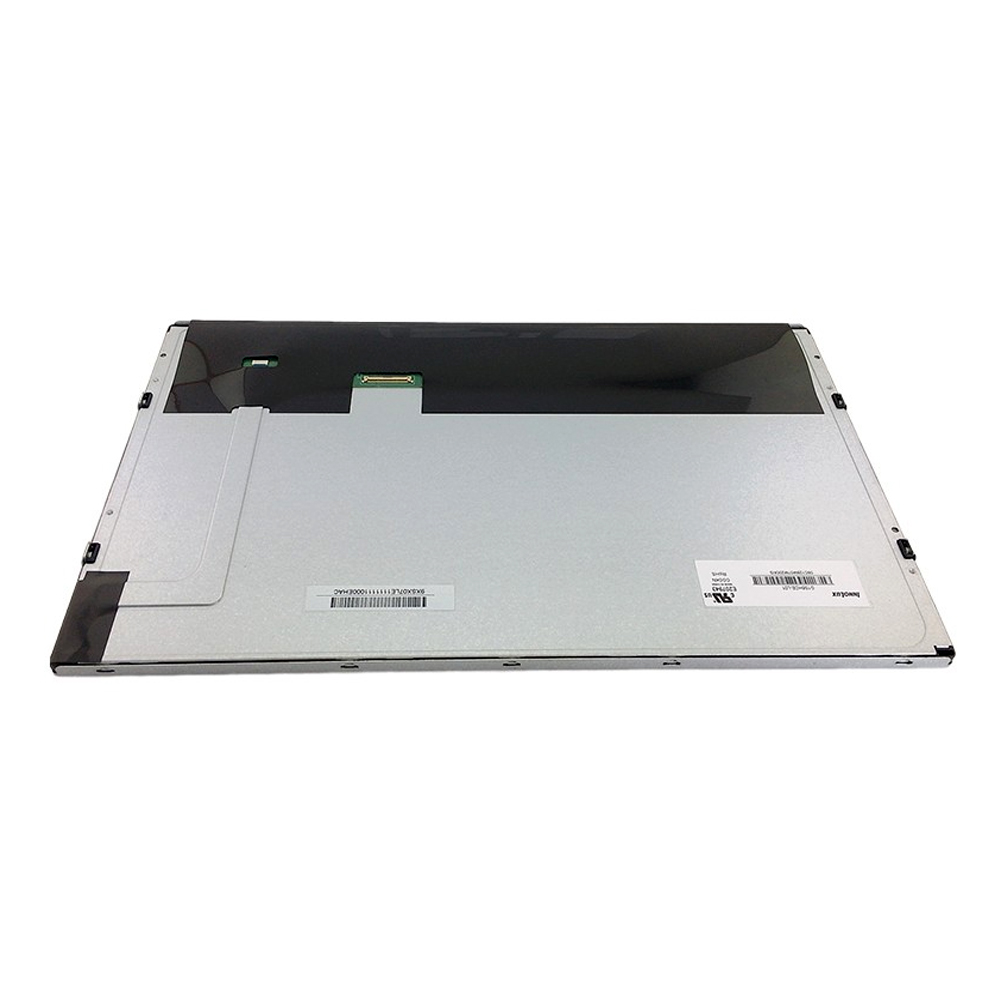

One、Innolux G156HCE-LN1 Application Details
Basic Information : | Brand | INNOLUX | Model | G156HCE-LN1 |
Type | LCM a-Si TFT-LCD | Used For | Industrial，Gaming | |
Screen Size | 15.6" | |||
Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | 0 ~~ 60 °C |
RoHS | RoHS | Vibration | 1.5G (14.7 m/s²) | |
Typical Features : | WLED Backlight，Life>=50K hours,With LED Driver,Matte | |||
TWO、Innolux G156HCE-LN1 Mechanical Details
Pixel Features : | Resolution | 1920(RGB)*1080, FHD | Dot Pitch(mm) | 0.05975*0.17925 (H*V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.17925*0.17925 (H*V) [141PPI] | |
Mechanical Size : | Active Area(mm) | 344.16(H) *193.59(V) | Bezel Area(mm) | 347.06(H) *196.49(V) |
Outline Dim.(mm) | 363.8(H) *215.98(V) | Depth(mm) | 9.3±0.3 | |
Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
Mounting : | Side mounting holes (4 pcs) on left, right bezel | |||
Other Spec : | Weight | 1.06/1.10Kgs (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
Three、Innolux G156HCE-LN1 Optical Details
Basic Information : | Luminance(cd/m²) | 350 (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive | |
Best View on | Symmetry | Response(ms) | 14/11 (Typ.)(Tr/Td) | |
Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(9 points) | |
1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 93% coverage |
Adobe RGB | 72% coverage | DCI-P3 | 75% coverage | |
Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Four、Innolux G156HCE-LN1 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Five、Innolux G156HCE-LN1 Interface Details
Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 1.22/1.5A (Typ./Max.) | ||
Consumption | 4.0/5.0W (Typ./Max.) | |||||
Signal Type : | LVDS (2 ch, 8-bit) | Signal Voltage | - | |||
Interface Features : | Position | - | Type | Connector | ||
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
I-PEX | 20455-040E-76 | 1 pcs | 40 pins | 0.5 mm | ||
Six、Innolux G156HCE-LN1 Backlight Details
Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
Replacement | - | Quantity | - | Life Time | 50K(Min.) (Hours) | |
Interface Features : | Position | - | Type | Included in signal interface
| ||
Backlight Driver : | With LED Driver | |||||
Driver Electrical : | Voltage Supply | 12.0±1.2V
| Current Supply | 0.6/0.77/0.9A (Min./Typ./Max.) | ||
Consumption | 9.2/10.2W (Typ./Max.) | |||||
Seven、Innolux G156HCE-LN1 Packing Details
Package Box : | Quantity | Weight | Box Size |
18 pcs / box | 13.2 Kgs | 465*362*314 mm (L*W*H) |
