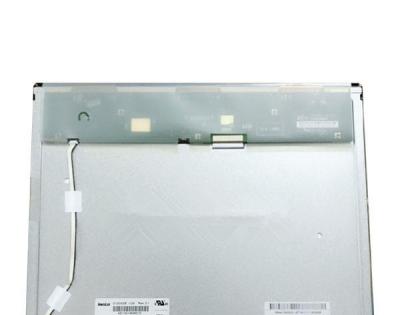

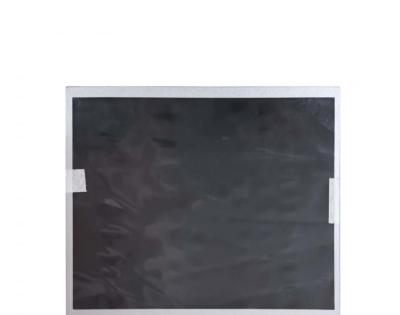

Chimei Innolux G150XGE-L06 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G150XGE-L06 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 15” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Lamp Repaceable,WLED Backlight，With LED Driver，Upside I/F,6/8bit，Matte | |||
Chimei Innolux G150XGE-L06 Optical Details
| Basic Information : | Luminance | 250 cd/m²(Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 5/11 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 45/45/25/45 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 61% | sRGB | 82% coverage |
| Adobe RGB | 64% coverage | DCI-P3 | 64% coverage | |
| Rec.2020 | 46% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G150XGE-L06 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.099*0.297 mm (H*V) | Pixel Pitch (W×H) | 0.297*0.297 mm (H*V) [85PPI] | |
| Physical Size : | Active Viewing(mm) | 304.128*228.096 mm (H*V) | Bezel Area (mm) | 307.4*231.3 mm (H*V) |
| Outline Dim.(mm) | 326.5*253.5 mm (H*V) | Depth(mm) | 11.56±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (W:H) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 1.04/1.09Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G150XGE-L06 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 7.5W (Typ.) |
Chimei Innolux G150XGE-L06 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 590/690mA (Typ./Max.) | |||||||
| Consumption | - | ||||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| HRS | DF14H-20P-1.25H(56) | 1.25mm | 20pins | 1 pcs | LVDS-20P1C8B-020D | ||||||
Chimei Innolux G150XGE-L06 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||||||
| Exchange | Replaceable | Lamp Shape | - | Lamp Life | 30K(Min.) (Hours) | ||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||||
| E&T | 3808K-F05N-03L | 1.25 mm | 5 pins | 1 pcs | |||||||||
| Driver Electrical : | Input Current | 0.35/0.40/0.55A (Min./Typ./Max.) | Input Voltage | 12.0±1.2V | |||||||||
| Consumption | 4.5/4.9W (Typ./Max.) | ||||||||||||
Chimei Innolux G150XGE-L06 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 15pcs / box | 12.02 Kgs | 511*420*360 mm |
