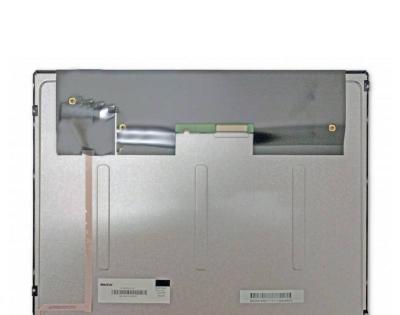

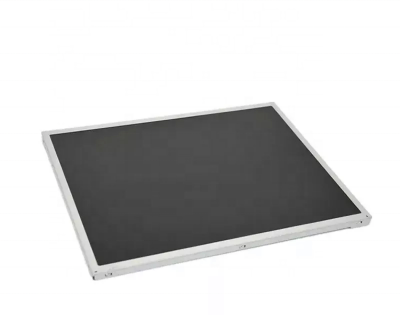

Chimei Innolux G150XNE-L01 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G150XNE-L01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 15” | Designed For | Industrial，Automotive Display | |
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -40 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature，WLED Backlight，Life>=70K hours,With LED Driver，Upside I/F,180°Reverse，6/8bit，Matte | |||
Chimei Innolux G150XNE-L01 Optical Details
| Basic Information : | Luminance | 500 cd/m²(Typ.) | Contrast Ratio | 2500:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 13/5 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | NPVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 92% coverage |
| Adobe RGB | 71% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G150XNE-L01 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.099*0.297 mm (H*V) | Pixel Pitch (W×H) | 0.297*0.297 mm (H*V) [85PPI] | |
| Physical Size : | Active Viewing(mm) | 304.128*228.096 mm (H*V) | Bezel Area (mm) | 307.4*231.3 mm (H*V) |
| Outline Dim.(mm) | 326.5*253.5 mm (H*V) | Depth(mm) | 9.1±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (W:H) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 0.97/1.00Kgs (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G150XNE-L01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 12.8W (Typ.) |
Chimei Innolux G150XNE-L01 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 0.8/0.96A (Typ./Max.) | |||||||
| Consumption | - | ||||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| CID520D1HR0-NH | 1.25mm | 20pins | 1 pcs | ||||||||
Chimei Innolux G150XNE-L01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||||||
| Exchange | Replaceable | Lamp Shape | - | Lamp Life | 70K(Typ.) (Hours) | ||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||||
| CviLux | CI4205M2HRP-NH | 1.25 mm | 5 pins | 1 pcs | |||||||||
| Driver Electrical : | Input Current | 0.65±0.15A | Input Voltage | 12.0±1.2V | |||||||||
| Consumption | 7.8/9.6W (Typ./Max.) | ||||||||||||
Chimei Innolux G150XNE-L01 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 16pcs / box | 18 Kgs | 511*420*360 mm |
