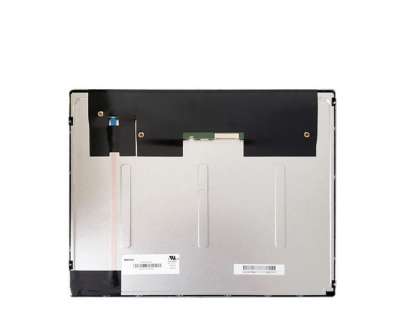

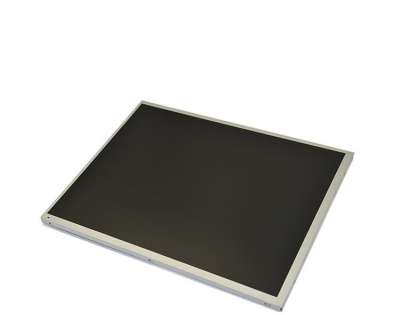

1、Innolux G150XJE-E05 Application Details
Basic Info : | Panel Brand | INNOLUX | Panel Model | G150XJE-E05 |
Diagonal Size | 15.0" | Application | Industrial，Gaming | |
Panel Type | a-Si TFT-LCD , LCM | |||
Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -20 ~ 70 °C |
RoHS State | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
Specific Features : | WLED Backlight，Life≥50K hours，With LED Driver， 6/8bit ，Matte | |||
2、Innolux G150XJE-E05 Mechanical Details
Pixel Features : | Pixel Format | 1024(RGB)×768, XGA | Dot Pitch (W×H) | 0.099×0.297 mm |
Configuration | RGB Vertical Stripe | Pixel Pitch (W×H) | 0.297×0.297 mm [85PPI] | |
Mechanical Size : | Active Viewing | 304.128(W)×228.096(H) mm | Overall Dim. | - |
Bezel Opening | - | Outline Depth | 6.5 mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 4:3 (H:V) | Shape Style | ||
Other Detail : | Mass | - | Surface | Antiglare, Hard coating (3H) |
3、Innolux G150XJE-E05 Optical Details
Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 2500 : 1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88(Typ.)(CR≥10) | Optical Mode | NPVA, Normally Black, Transmissive | |
Viewing Direction | Symmetry | Response Time | 16/7 (Typ.)(Tr/Td) (ms) | |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
4、Innolux G150XJE-E05 Electronics Details
Frame Frequency : | 60Hz |
5、Innolux G150XJE-E05Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) (Hours) |
Replacement | - | Lamp Shape | - | Position | Edge light type | |
Interface Features : | Type | Included in signal interface | Position | -
| ||
Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | - | ||
6、Innolux G150XJE-E05 Interface Detail
Signal Systerm : | eDP (1 Lane) | Logic Voltage | - | |||||||||||
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 440/535mA (Typ./Max.) | ||||||||||
Interface Features : | Type | Connector | Position | - | ||||||||||
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | ||||||||
I-PEX | 20455-030E-76 | 0.5 mm | 30 pins | 1 pcs | LVDS-20P1C8B-160A | |||||||||
