Chimei Innolux G170J1-LE1 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G170J1-LE1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 17.0” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 80 °C | ST Temperature | -40 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature，WLED Backlight， With LED Driver，Upside I/F,Glossy | |||
Chimei Innolux G170J1-LE1 Optical Details
| Basic Information : | Luminance | 600 cd/m² (Typ.) | Contrast Ratio | 2000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 20/9 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | Super MVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6485K | White Variation | 1.20/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 70% | sRGB | 92% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 72% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |

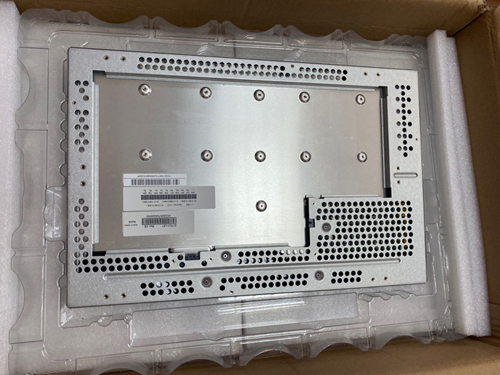

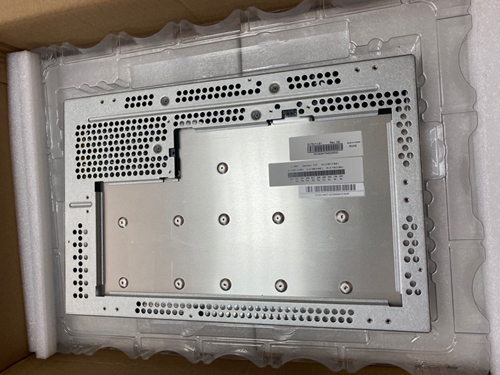

Chimei Innolux G170J1-LE1 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1200, WUXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.0635*0.1905 mm (H*V) | Pixel Pitch (W*H) | 0.1905*0.1905 mm (H*V) [133PPI] | |
| Physical Size : | Active Viewing(mm) | 365.76*228.6 mm (H*V) | Bezel Area (mm) | 369.0*231.8 mm (H*V) |
| Outline Dim.(mm) | 386.8*250.8 mm (H*V) | Depth(mm) | 18.6/19.0 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M4) on left, right bezel | |||
| Other Spec : | Weight | 1.68/1.75Kgs (Typ./Max.) | Surface | Glare (Haze 0%) |
Chimei Innolux G170J1-LE1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 25.45W (Typ.) |

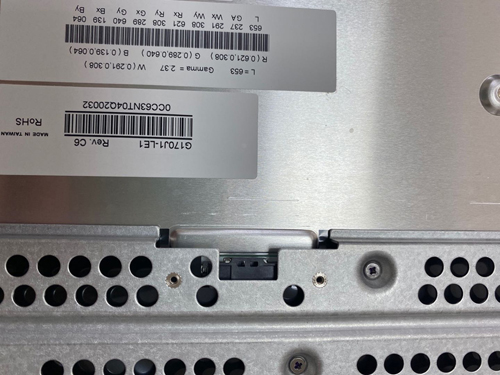

Chimei Innolux G170J1-LE1 Interface Details
| Signal Systerm : | LVDS (2 ch, 8-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 1.05±0.1mA | |||||||
| Consumption | 5.25W (Typ.) | ||||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| molex | 501864-3091 | 0.5mm | 30pins | 1 pcs | LVDS-30P2C8B-180D | ||||||
Chimei Innolux G170J1-LE1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 30K(Min.) (Hours) | ||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration | |||||||
| molex | 43650-1013 | 3.0mm | 10 pins | 1 pcs | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Driver Electrical : | Input Voltage | 6.0/12.0/16.0V (Min./Typ./Max.) | Input Current | 1.68±0.1A | |||||||||
| Consumption | 20.2W (Typ.) | ||||||||||||
Chimei Innolux G170J1-LE1 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 8pcs / box | 21.1 Kgs | 615*515*320 mm |
