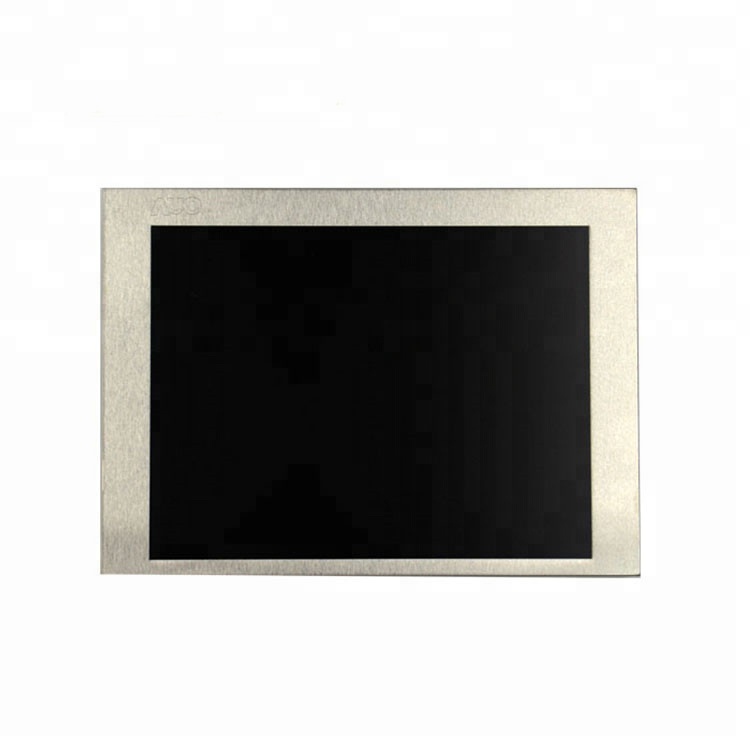

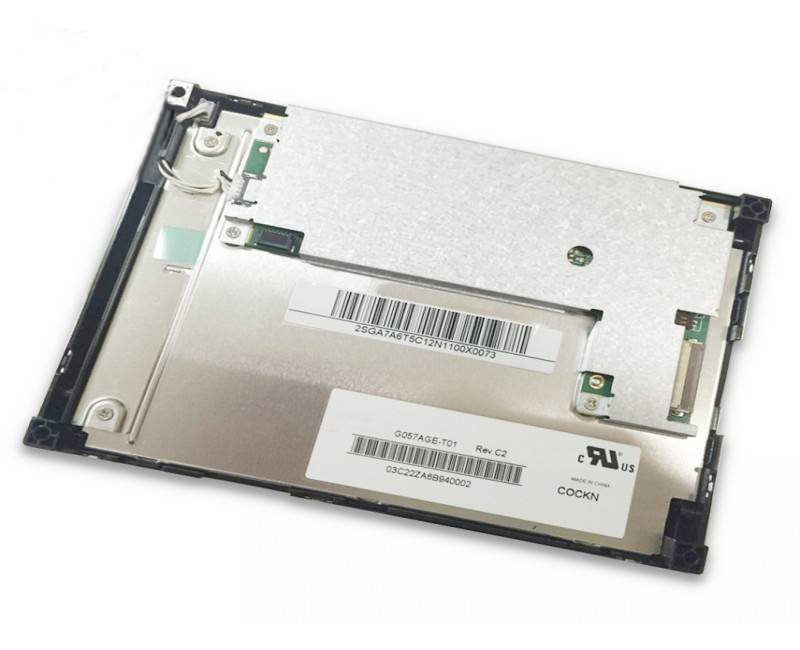

Chimei Innolux G057AGE-T01 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G057AGE-T01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 5.7” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature，WLED Backlight，Life>=50K hours,With LED Driver,U/D,L/R Reverse,Matte | |||
Chimei Innolux G057AGE-T01 Optical Details
| Basic Information : | Luminance | 500 cd/m²(Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 15/35 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80/80/70/70 (Typ.)((CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
Color Temperature | 6485K | White Variation | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 54% | sRGB | 75% coverage |
| Adobe RGB | 57% coverage | DCI-P3 | 56% coverage | |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G057AGE-T01 Mechanical Details
| Pixel Features : | Number of Pixel | 320(RGB)*240 [QVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.120*0.360 mm | Pixel Pitch (W*H) | 0.360*0.360 mm [70PPI] | |
| Physical Size : | Active Viewing(mm) | 115.2(W)*86.4(H) mm | Bezel Area (mm) | 118.2(W)*89.4(H) mm |
| Outline Dim.(mm) | 144(W)*104.6(H) mm | Depth(mm) | 12.3±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (W:H) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-Φ2.6), Rear mounting holes (4-Φ2.6) | |||
| Other Spec : | Weight | 155/170g (Typ./Max.) | Surface | Antiglare (Haze 25%) |
Chimei Innolux G057AGE-T01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Total Consumption : | 3.35W (Typ.) |
Chimei Innolux G057AGE-T01 Interface Details
| Signal Electrical : | Signal Interface | TTL (1 ch, 6-bit) | Logic Voltage | |||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 151/181mA (Typ./Max.) | ||||
| Interface Features : | Position | - | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| HRS | FH12-33S-0.5SH | 0.5mm | 33pins | 1 pcs | DRGB-33P1C6B-020A | |||
Chimei Innolux G057AGE-T01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | ||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | |||||||
| JST | SM06B-SRKS-G-TB | 1.0 mm | 6 pins | 1 pcs | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Driver Electrical : | Input Voltage | 12.0V (Typ.) | Input Current | 0.23/0.26/0.28A (Min./Typ./Max.) | |||||||||
| Consumption | 2.45W (Typ.) | ||||||||||||
Chimei Innolux G057AGE-T01 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 60 pcs / box | 30 Kgs | 540*450*275 mm |
