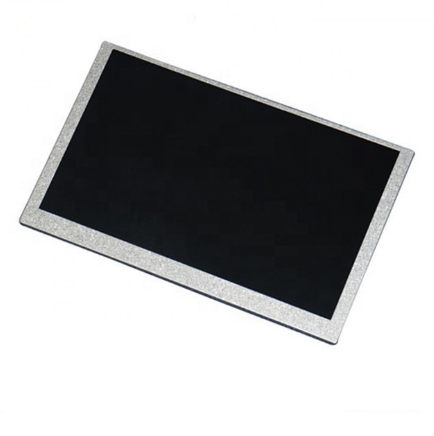

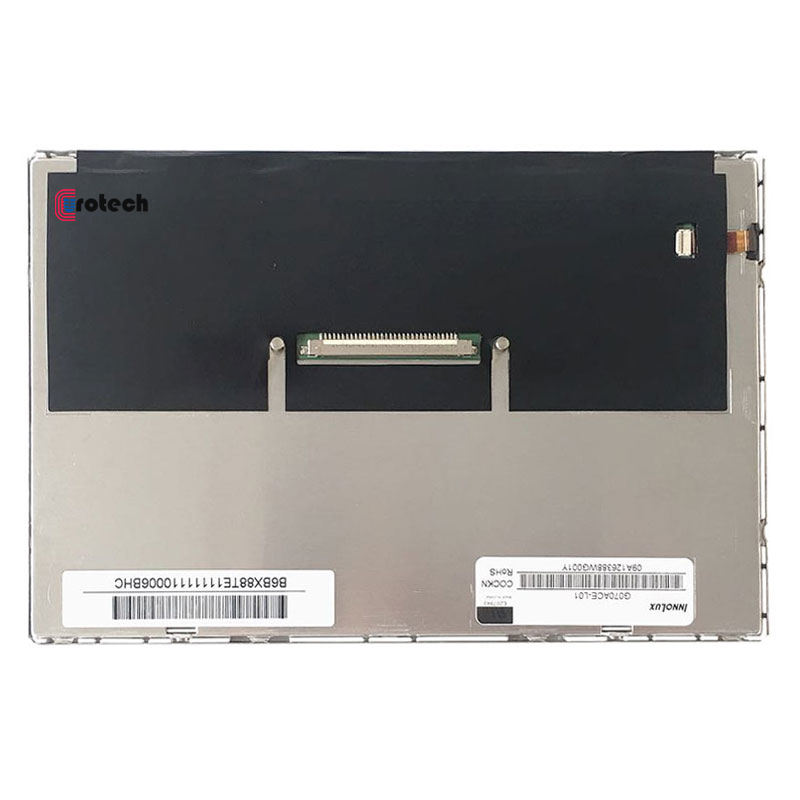

Chimei Innolux G070ACE-L01 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G070ACE-L01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 7.0” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 90 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature，WLED Backlight，Life>=50K hours,With LED Driver,Matte,6/8bit | |||
Chimei Innolux G070ACE-L01 Optical Details
| Basic Information : | Luminance | 500 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 13/12 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)((CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.315 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6611K | White Variation | 1.43 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 75% | sRGB | 97% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G070ACE-L01 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*480, WVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.0635*0.1905 mm (H*V) | Pixel Pitch (W*H) | 0.1905*0.1905 mm (H*V) [133PPI] | |
| Physical Size : | Active Viewing(mm) | 152.4*91.44 mm (H*V) | Bezel Area (mm) | 154.4*93.44 mm (H*V) |
| Outline Dim.(mm) | 170*110 mm (H*V) | Depth(mm) | 6.0/8.85 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (W:H) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 183±9g | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G070ACE-L01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Time Controller (T-CON) : | 2.48W (Typ.) |
Chimei Innolux G070ACE-L01 Interface Details
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 135/200mA (Typ./Ma.) | ||||
| Consumption | 0.48/0.73W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||||
| Logic Voltage : | - | |||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| STARCONN | 093G30-B0001A-G4 | 1.0mm | 30pins | 1 pcs | ||||
Chimei Innolux G070ACE-L01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | Position | Edge light type | ||||
| Exchange | - | Lamp Shape | Lamp Life | 50K(Min.) (Hours) | |||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | |||||
| Backlight Driver : | With LED Driver | ||||||||
| Driver Electrical : | Voltage Input | 12/18V (Typ./Max.) | Current Input | 0.1/0.17A (Min./Typ.) | |||||
| Consumption | 2.0/2.3W (Typ./Max.) | ||||||||
Chimei Innolux G070ACE-L01 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 38 pcs / box | 8.30 Kgs | 455*370*275 mm |
