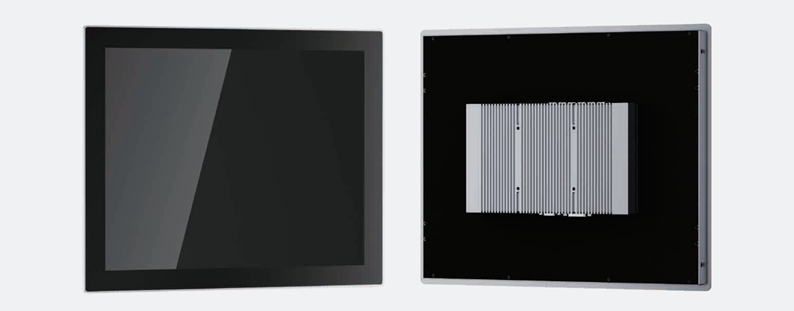

IDP150
Industrial Touch Display Monitor
All-aluminum Frame
15 inch ultra-thin touch display monitor
l 15 inch，4：3， 1024*768 resolution
l Viewing Angle: 85/85/85/85 (L/R/U/D)
l 10 points touch，capacitive touch screen
l 1*HDMI, 1*VGA, 1*DVI, 1*USB(interface of touch), 1*On-off button, Customizable serial port touch
l 12V DC Power ( wide voltage power supply is optional, Phoenix terminal)
l Installation mode: support 75mm*75mm VESA installation, Front embedded mounting
PECIFICATION PARAMETER

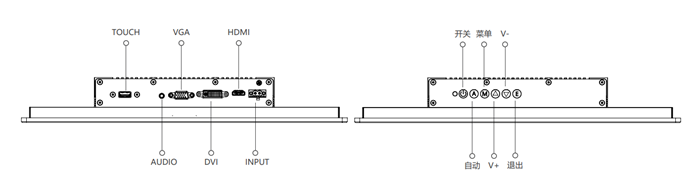

Interface | Buttons | OSD on the rear side，contrast ratio/brightness can be adjusted |
USB | 1*USB(touch)， Customizable serial port touch | |
I/O connector | 1*HDMI/1*VGA/1*DVI*1*USB (touch) | |
Structure | front frame: 6061 Aluminium alloy，Silver color | |
Power Supply | Input voltage | 12V DC （wide voltage power supply is optional), Phoenix terminal |
Max power consumption | 11W | |
TFT LCD screen | Mode of screen | 15’’ FULL HD TFT |
Resolution | 1024*768 | |
Colors | 16.7MB | |
Backlight | LED | |
Backlight MTBF(hours) | 30,000Hrs | |
Pixel pitch | 0.264*0.264 | |
Brightness | 300cd/m2 | |
Contrast Ratio | 1000:1 | |
Viewing Angle | 85/85/85/85 (L/R/U/D) | |
Touch screen | Type | 10 point touch, Capacitive touch screen |
Resolution | 4096*4096 | |
Light transmittance | >95% | |
Response time (touch pen) | <5ms | |
Surface Hardness | >7H | |
Touch lifetime | 250g/35,000,000 times | |
Stroke lifetime | 250g/5,000,000 times | |
Environmental parameter | Operating temperature | 1) Standard: 0~50℃; 2) optional: -20~60℃ |
Storage temperature | -20~60℃ | |
Relative humidity | 10~95% RH@40℃，non-condensing | |
Working vibration | SSD applied:1.5 GMRS,5~500HZ, 1 HR/AXIS | |
Working impact | SSD applied:10G, Half sine wave | |
EMC | CE/FCC, class B | |
Waterproof | IP65 |

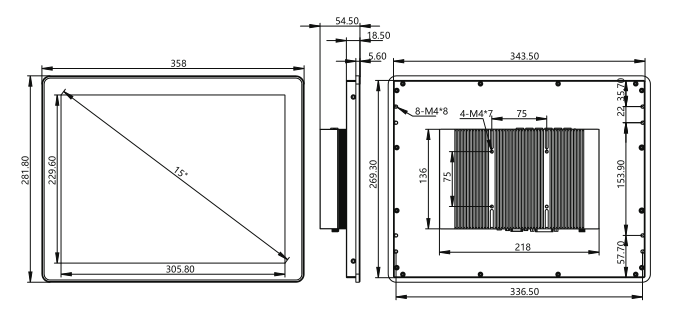

INTERFACE DRAWING
