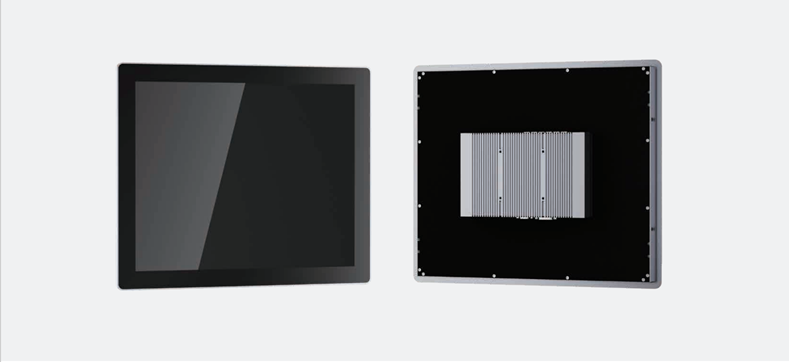

  • IDP190 19 inch ultra-thin touch display monitor
  • IDP190 19 inch ultra-thin touch display monitor
  • IDP190 19 inch ultra-thin touch display monitor
  • Model:IDP190
  • Brand:Xuhong
  • Size:19.0inch
  • Resolution:1280*1024
  • Brightness:250cd/m2
  • Perspective:85/85/80/80
  • Interface:1*HDMI, 1*VGA, 1*DVI, 1*USB(touch interface), 1*on/off button, serial port of touch can be customized
  • Operating Temp.:0~50℃
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • IDP190

    Industrial Touch Display Monitor

    All-aluminum Frame


    19 inch ultra-thin touch display monitor

    l  19 inch, 4:3, resolution1280*1024

    l  Viewing Angle: 85/85/80/80 (L/R/U/D)

    l  10-point capacitive touch /5-w resistive touch/no touch

    l  1*HDMI, 1*VGA, 1*DVI, 1*USB(touch interface), 1*on/off button, serial port of touch can be customized

    l  12V DC Power ( wide voltage power supply is optional, Phoenix terminal)

    l  Dimensions of mounting holes ( we recommend): 415mm*345mm (W*H)

    l  Outline dimension: 440mm*364mm*55mm(W*H*D)

    l  Installation mode: (1)75mm*75mm VESA installation; (2)Front embedded installation




    SPECIFICATION PARAMETER

    Interface

    Buttons

    OSD   on the rear sidecontrast   ratio/brightness can be adjusted

    USB

    1*USB(touch) serial port of touch can   be customized

    I/O   connector

    1*HDMI/1*VGA/1*DVI/1*USB   (touch)

    Structure

    front   frame: 6061 Aluminium alloySilver   hard anodized

    Physical   characteristics

    DimensionW*H*D

    440mm*364mm*55mm

    Hole   size

    415mm*345mm

    Net   Weight

    5.78kg

    Power   Supply

    Input   voltage

    12V   DC wide   voltage power supply is optional), Phoenix terminal

    Max   power consumption

    15W

    TFT   LCD screen

    Mode   of screen

    19’’    TFT

    Resolution

    1280*1024

    Colors

    16.7MB

    Backlight

    LED

    Backlight   MTBF(hours)

    30,000hrs

    Pixel   pitch

    0.248*0.248

    Brightness

    250cd/m2

    Contrast   Ratio

    800:1

    Viewing   Angle

    85/85/80/80   (L/R/U/D)

    Touch   screen

    Type

    10-point   capacitive touch/5-w resistive touch/no touch

    Controller

    USB   interface (serial port of touch can be customized)

    Light   transmittance

    >95%

    Response   time (touch pen)

    <5ms

    Surface   Hardness

    Mohs   hardness 7H

    Touch   lifetime

    250g/35,000,000   times

    Stroke   lifetime

    250g/5,000,000   times

    Environmental   parameter

    Operating   temperature

    1)       Standard:   0~50℃; 2) optional: -20~60

    Storage   temperature

    -20~60

    Relative   humidity

    10~95%   RH@40non-condensing

    Working   vibration

    SSD   applied:1.5 Grms,5~500HZ, 1 hr/axis

    Working   impact

    SSD   applied:10G, Half sine wave

    EMC

    CE/FCC,   class B

    Waterproof

    IP65   of front cover

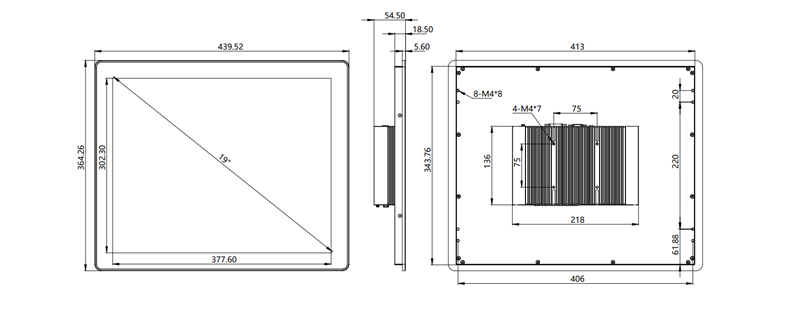

    DIMENSION

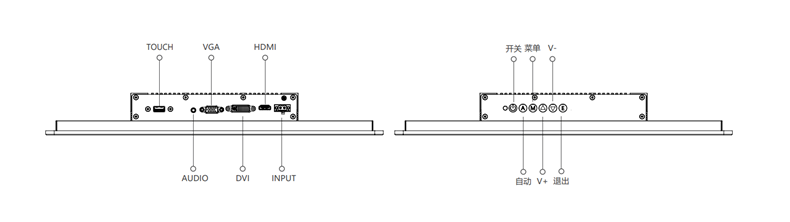

    INTERFACE DRAWING
