IPA101-A
Quad-core, four-thread/Wi-Fi, Bluetooth, 4G/SSD support up to 1TB/Adaptiv10.1 " Ultra-thin Full Aluminum Fanless Industrial Panel PCe Gigabit Ethernet chip

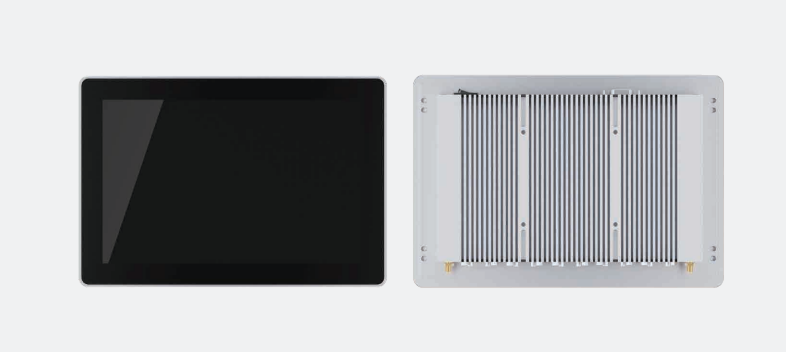

10.1 " Ultra-thin Full Aluminum Fanless Industrial Panel PC
• Intel® Celeron® J1900 2.0GHz Quad-Core, Four-Thread Processor
• 4GB DDR3L High-Speed Memory, Up to 8GB; SSD Supports Up to 1TB
• Dual Realtek 10M/100M/1000M Adaptive Gigabit Ethernet Chips; 6 Serial Ports (Supports Up to 2*RS485), 1*USB3.0, 3*USB2.0, 1*HDMI,• 4GB DDR3L High-Speed Memory, Up to 8GB; SSD Supports Up to 1TB 1*VGA
• Optional Wireless Configurations: WiFi, Bluetooth, 4G
• Panel Mounting Dimensions (Recommended): 249mm*162mm (1.40/1.90mm Larger Than Actual Cutout Dimensions) (• Optional Wireless Configurations: WiFi, Bluetooth, 4GW*H)
• Overall Dimensions: 257*176*62（W*H*D）
• Mounting Options: Supports 75mm*75mm VESA Mount and Front Embedded Mount

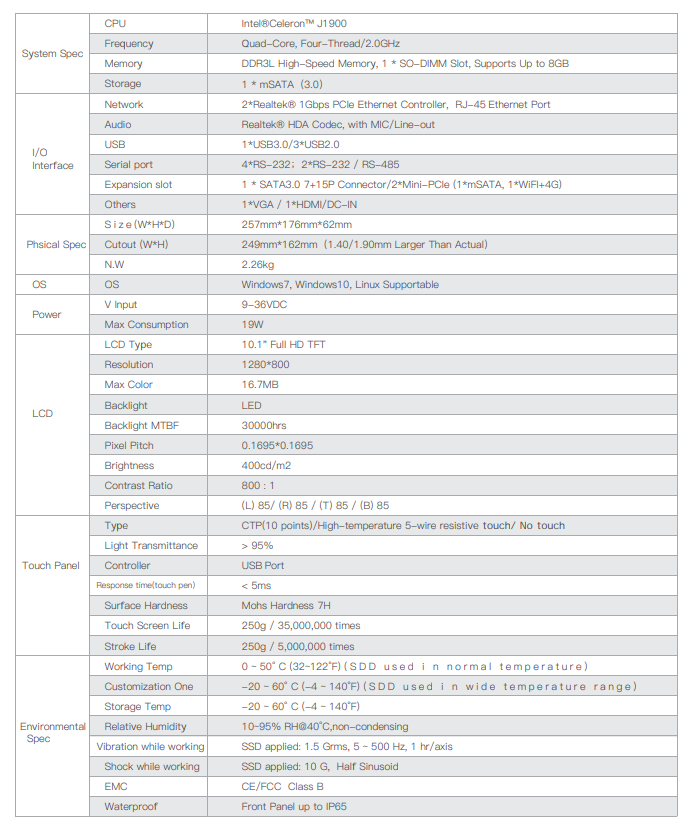

SPECIFICATION PARAMETER

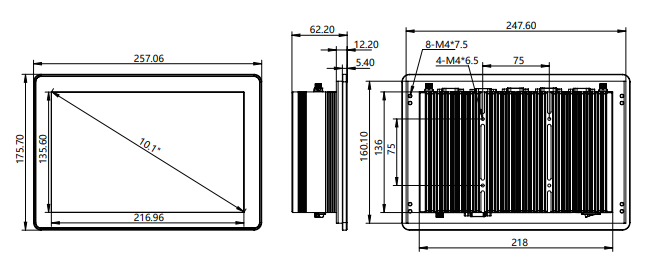

DIMENSION FIGURE

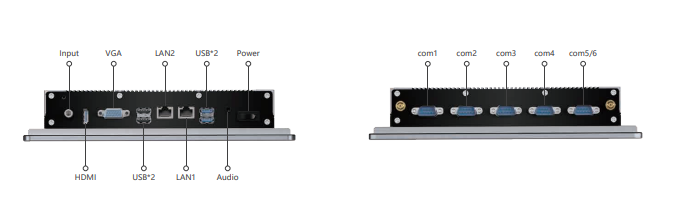

INTERFACE DRAWING

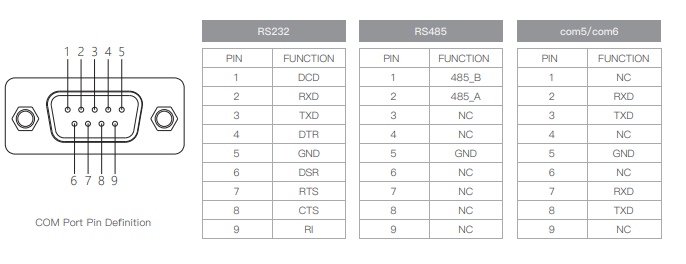

PIN DEFINITION
