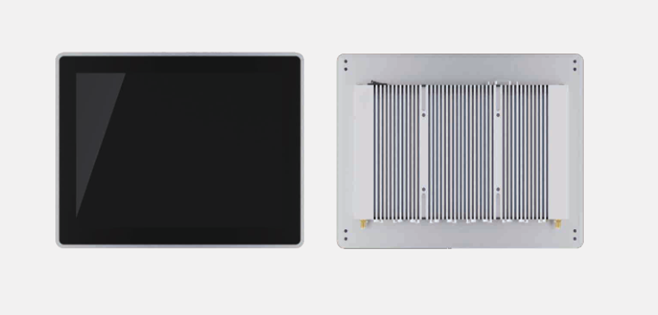

  • IPA104-C-TC 10.4 inch Ultra-thin All-aluminum Fanless Panel PC
  • IPA104-C-TC 10.4 inch Ultra-thin All-aluminum Fanless Panel PC
  • IPA104-C-TC 10.4 inch Ultra-thin All-aluminum Fanless Panel PC
  • IPA104-C-TC 10.4 inch Ultra-thin All-aluminum Fanless Panel PC
  • Model:IPA104-C-TC
  • Brand:Xuhong
  • Size:10.4inch
  • Resolution:1024*768
  • Brightness:600cd/m²
  • Perspective:80/80/80/80
  • Interface:1*Mini-PCIe(mSATA support WIFI/4G optional), 1*M.2(SATA/5G optional)
  • Operating Temp.:0~50℃
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • IPA104-C-TC

    Four core, Four threads Ι  WIFI, Bluetooth, 4G

    Solid hard disk support 1T Max Ι Adaptive gigabit network chip


    10.4 inch Ultra-thin All-aluminum Fanless Panel PC

    l  INTEL®CELERON®J6412 2.0GHz, Four cores and four threads

    l  4GB DDR4 High speed memory, support MAX 32G; SSD solid hard disk, support MAX 1T

    l  Dual intel 210 10M/100M/1000M Adaptive gigabit network chip, 6 serial ports(support max 2xRS485), 1*HDMI, 2*RJ45

    l  WIFI, Bluetooth, 4G , Wireless configuration optional

    l  Panel mounting Hole dimensions (Recommended) 246mm*193mm (1.90/1.50mm larger than the actual hole size)

    l  Outline dimension: 253mm*201mm*65mm (W*H*D)

    l  Installation mode: support 75mm*75mm VESA installation, Front embedded mounting



    SPECIFICATION PARAMETER

    System   Parameters

    CPU

    Intel®Celeron™J6412

    Frequency

    Four   cores and four threads/2.0GHz

    Memory

    Support   DDR4-3200,1*SO-DIMM, Support MAX 32GB

    Store

    1*SATA   3.07P Connector/M.2 Connector; 1*mSATA (3.0)

    Network

    2*Intel®2.5Gbps   PCIe Ethernet controller, RJ45

    I/O   Interfaces

    Audio   frequency

    Realtek® HDA   Codec, with MIC/Line-out and Amplifier

    USB

    4*USB3.0

    Serial   port

    4*RS-232;   2*RS-232/RS-485

    Expansion   slot

    1*Mini-PCIe(mSATA   support WIFI/4G optional), 1*M.2(SATA/5G optional)

    Other   ports

    1*HDMI/1*DC-IN

    Physical   characteristics

    DimensionW*H*D

    253mm*201mm*65mm

    Hole   size (W*H)

    246mm*193mm(1.90/1.50mm   larger than the actual hole size)

    Net   Weight

    2.58kg

    Operating   System

    Operating   System

    support   Windows 10, Linux

    Power   Supply

    Input   voltage

    9-36V   DC

    Max   power consumption

    26W

    Panel

    Panel   type

    10.4’’  FULL HD TFT

    Resolution

    1024*768

    Maximum   color

    16.7MB

    Backlight

    LED

    Backlight   MTBF(hours)

    30,000Hrs

    Pixel   pitch

    0.24*0.24

    Brightness

    600cd/m²

    Contrast   Ratio

    800:1

    Viewing   Angle

    80/80/80/80   (L/R/U/D)

    Touch   Screen

    Touch   screen type

    10   contact capacitor touch screen/High tempreture 5wire resistive touch   screen/no touch screen

    Transmittance

    95%

    Controller

    USB   interface

    Response   time (touch pen)

    5ms

    Surface   hardness

    Mohl   hardness 7H

    Touch   life

    250g/35,000,000   times

    Stroke   life

    250g/5,000,000   times

    Environmental   parameter

    Operating   temperature

    1)       Standard:   0~50℃; 2) optional: -20~60(Use wide   temperature SSD)

    Storage   temperature

    -20~60

    Relative   humidity

    10~95%   RH@40non-condensing

    Working   vibration

    SSD   applied:1.5 Grms,5~500Hz, 1 Hr/axis

    Working   impact

    SSD   applied:10G, Half sine wave

    EMC

    CE/FCC,   class B

    Waterproof

    IP65   (Front panel)

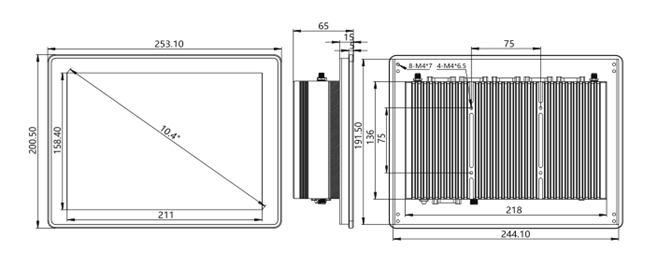

    DIMENSIONS

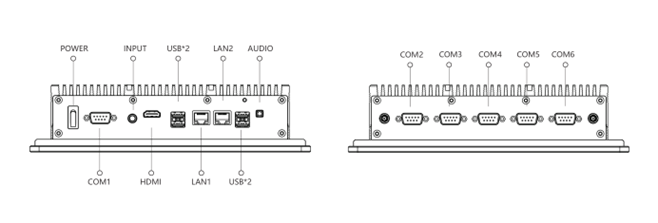

    INTERFACE DRAWING

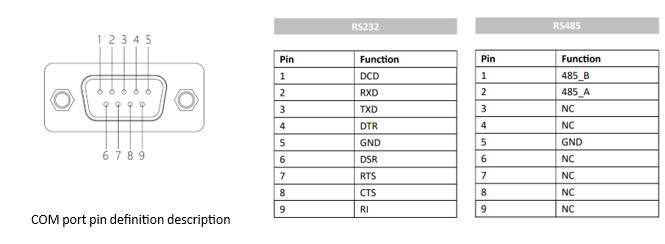

    PIN DEFINITION
