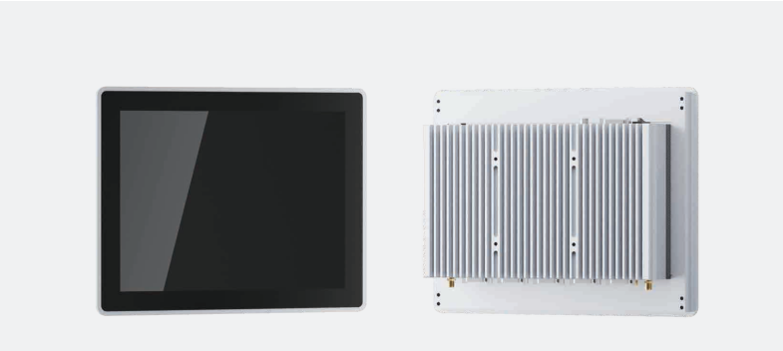

  • IPC104-E-10 I3/I5/I7-TC 10.4 inch ultra-slim all-aluminum body fanless tablet
  • IPC104-E-10 I3/I5/I7-TC 10.4 inch ultra-slim all-aluminum body fanless tablet
  • IPC104-E-10 I3/I5/I7-TC 10.4 inch ultra-slim all-aluminum body fanless tablet
  • IPC104-E-10 I3/I5/I7-TC 10.4 inch ultra-slim all-aluminum body fanless tablet
  • Model:IPC104-E-10 I3/I5/I7-TC
  • Brand:Xuhong
  • Size:10.4inch
  • Resolution:1024*768
  • Brightness:600cd/m2
  • Perspective:80/80/75/75
  • Interface:5 serial ports, 4*USB3.0, 2*GLAN, 1*HDMI
  • Operating Temp.:0~50℃
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • IPC104-E-10I3/I5/I7-TC

    WIFIBluetooth4G SSD supports up to 1T Adaptive gigabit network chip


    10.4 inch ultra-slim all-aluminum body fanless tablet

    l  ®Intel Core i3-10110U Dual-Core 4-Thread 2.1-4.1GHz/ i5-10310U Quad-Core 8-Thread 1.7-4.4GHz/

    i7-10510U Quad-Core 8-Thread 1.8-4.9GHz

    l  DDR4 high-speed memory, up to 32G; SSD SOLID STATE DRIVE, SUPPORT UP TO 1T

    l  DUAL INTEL 10M/100M/1000M ADAPTIVE GIGABIT NETWORK CHIP; 5 serial ports, 4*USB3.0, 2*GLAN, 1*HDMI

    l  WiFi, Bluetooth, 4G and other wireless configurations are optional

    l  Mounting hole size (recommended) 246*193(W*H) (1.50/1.90mm larger than the actual hole size)

    l  Outline dimension: 253*201*65(W*H*D)

    l  Mounting Method: Support 75mm*75mm VESA mounting and front embedded mounting


    SPECIFICATION PARAMETER



    System parameters

    Modl Number

    IPC104-E-10I3-TC

    IPC104-E-10I5-TC

    IPC104-E-10I7-TC

    CPU

    Intel®Core i3-10110U

    Intel®Core i5-10310U

    Intel®Core i7-10510U

    Frequency

    Dual-core, 4-thread,   2.1-4.1GHz

    Quad-core, 8-thead,1.7-4.4GHz

    Quad-core, 8-thread 1.8-4.9GHz

    Memory

    Supports DDR4 high-speed   memory, up to 32GB

    Storage

    1*3.0"   SATA+1*M.2 2280 M-key slot





    I/O interface

    Network

    2*Intel 1000Mbps   RJ-45 ethernet interface

    Audio

    Realtek ®HDA   Codec,with MIC/Line-out and Amplifier

    USB

    4*USB3.0

    Serial port

    3*RS-2322*RS-232/RS-485(com5/com6)

    Expansion slots

    1 x M.2 2242/50   B-Key slot on boardsupport   4G;WIFI wireless network card

    other interface

    1*HDMI/DC-IN

    Physical character

    Size(W*H*D)

    253mm*201mm*65mm

    Hole size(W*H)

    246mm*193mm(1.50/1.90mm   larger than the actual hole size)

    Net weight

    2.58kg

    System

    System

    support Windows10,   Linux

    Power Supply

    Input voltage

    12V DC

    power consumption

    48W







    TFT LCD Screen

    Screen type

    10.4" Full HD   TFT

    Resolution

    1024*768

    Max Color

    16.7MB

    Backlight

    LED

    Backlight MTBF

    30000 hours

    Pixel pitch

    0.264*0.264

    Brightness

    600cd/m2

    Contrast ratio

    800:1

    Viewing angle

    (L) 80/ (R) 80 / (U)   75 / (L) 75







    Touch Screen

    Type

    10-point capacitive   touch screen

    Light transmittance

    > 95%

    Controller

    USB interface

    Response time(touch   pen)

    < 5ms

    Surface hardness

    Mohs hardness 7H

    Touch life

    250g / 35,000,000   times

    Stroke life

    250g / 5,000,000   times





    Environmental   parameters



    Operating temp

    0   ~ 50° C (32~122°F)  Use a normal temperature SSD

    Custom model

    -20 ~ 60° C (-4 ~   140°F)  Use a wide temperature SSD

    Storage temp

    -20 ~ 60° C (-4 ~   140°F)

    Relative humidity

    10~95%   RH@40°C,non-condensing

    Working vibration

    SSD applied: 1.5   Grms, 5 ~ 500 Hz, 1 hr/axis

    Working Shork

    SSD applied: 10 G, Half-sine wave

    EMC

    CE/FCC Class B

    Waterproof

    The front panel , IP65

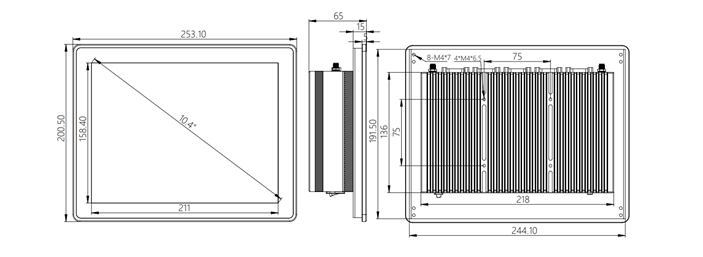

    DIMENSION

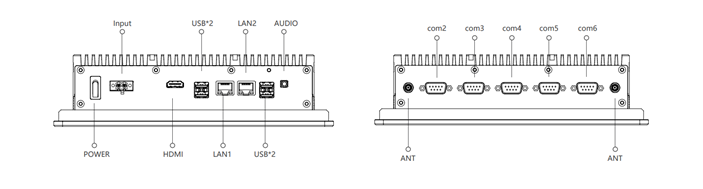

    INTERFACE DRAWING

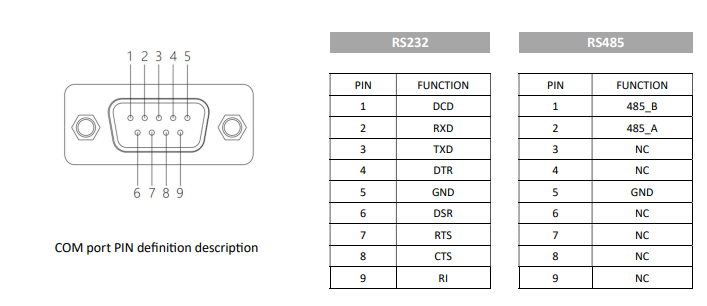

    PIN DEFINITION
