IPA121-E-12I3/I5/I7
WIFI, Bluetooth, 4G Ι Solid hard disk support 1T Max
Ι Adaptive gigabit network chip

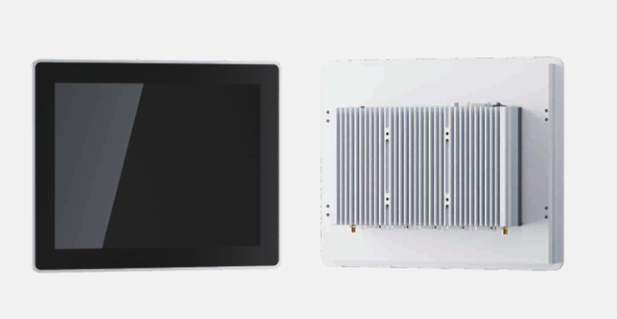

12.1 inch Ultra-thin All-aluminum Fanless Panel PC
l Intel®Core i3-1215U Six cores and eight threads 0.9-4.4GHz/ i5-1235U Ten cores and twelve threads 1.3-4.4GHz/ i7-1255U Ten cores and twelve threads 1.7-4.7GHz
l DDR4 High speed memory, support MAX 32G; SSD solid hard disk, support MAX 1T
l Dual intel 10M/100M/1000M Adaptive gigabit network chip, 6 serial ports, 4*USB3.0, 2*GLAN, 1*HDMI
l WIFI, Bluetooth, 4G , Wireless configuration optional
l Panel mounting hole dimensions (Recommended) 286mm*228mm (1.40/2.0mm larger than the actual hole size)
l Outline dimension: 303mm*242mm*67mm (W*H*D)
l Installation mode: support 75mm*75mm VESA installation, Front embedded mounting
SPECIFICATION PARAMETER
System Parameters | Model | IPC121-E-12I3 | IPC121-E-12I5 | IPC121-E-12I7 |
CPU | Intel®Core i3-1215U | Intel®Core i5-1235U | Intel®Core i7-1255U | |
Frequency | Six cores and eight threads/0.9-4.4GHz | Ten cores and twelve threads/1.3-4.4GHz | Ten cores and twelve threads/1.7-4.7GHz | |
Memory | Support DDR4 High speed memory, Support MAX 32GB | |||
Storage | 1*3.0” SATA + 1*M2 2280 M-key slot | |||
Network | 2*Intel 1000Mbps, Ethernet interface RJ45 | |||
I/O Interfaces | Audio frequency | Realtek® HDA Codec, with MIC/Line-out and Amplifier | ||
USB | 4*USB3.0 | |||
Serial port | 4*RS-232; 2*RS-232/RS-485(com5/com6) | |||
Expansion slot | Onboard 1 M.2 2242/50 B-Key card slot, supports 4G; WIFI wireless network card | |||
Other ports | 1*HDMI/1*DC-IN | |||
Physical characteristics | Dimension（W*H*D） | 303mm*242mm*67mm | ||
Hole size (W*H) | 286mm*228mm(1.40/2.0mm larger than the actual hole size) | |||
Net Weight | 2.96kg | |||
Operating System | Operating System | support Windows 10, Linux | ||
Power Supply | Input voltage | 9-36V DC | ||
Max power consumption | 61W | |||
Panel | Panel type | 12.1’’ FULL HD TFT | ||
Resolution | 1024*768 | |||
Maximum color | 16.7MB | |||
Backlight | LED | |||
Backlight MTBF(hours) | 30,000Hrs | |||
Pixel pitch | 0.24*0.24 | |||
Brightness | 380cd/m² | |||
Contrast Ratio | 800:1 | |||
Viewing Angle | 80/80/80/80 (L/R/U/D) | |||
Touch Screen | Touch screen type | 10 contact capacitor touch screen/High tempreture 5wire resistive touch screen/no touch screen | ||
Transmittance | ＞95% | |||
Controller | USB interface | |||
Response time (touch pen) | ＜5ms | |||
Surface hardness | Mohl hardness 7H | |||
Touch life | 250g/35,000,000 times | |||
Stroke life | 250g/5,000,000 times | |||
Environmental parameter | Operating temperature | 1) Standard: 0~50℃; 2) optional: -20~60℃(Use wide temperature SSD) | ||
Storage temperature | -20~60℃ | |||
Relative humidity | 10~95% RH@40℃，non-condensing | |||
Working vibration | SSD applied:1.5 Grms,5~500Hz, 1 Hr/axis | |||
Working impact | SSD applied:10G, Half sine wave | |||
EMC | CE/FCC, Class B | |||
Waterproof | IP65 (Front panel) | |||

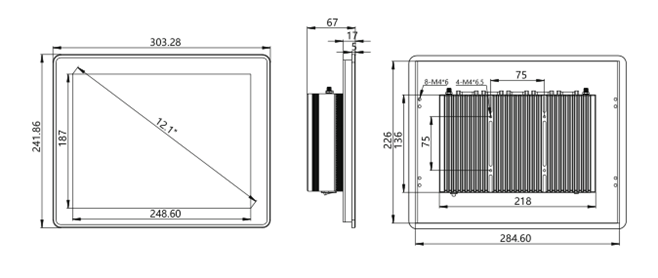

DIMENSIONS

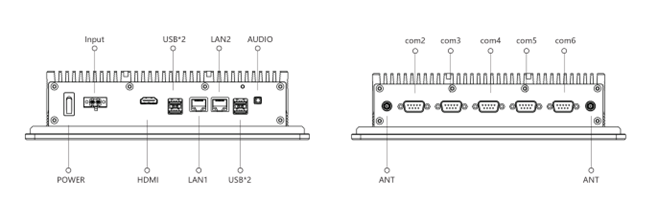

INTERFACE DRAWING

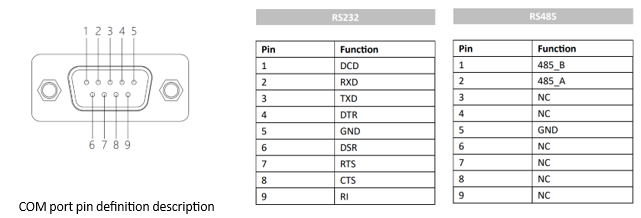

PIN DEFINITION
