IPC121-E-11I3
Dual-Core, Four-Thread/WIFI Bluetooth 4G/SSD up to 1T/Adaptive Gigabit Ethernet chip

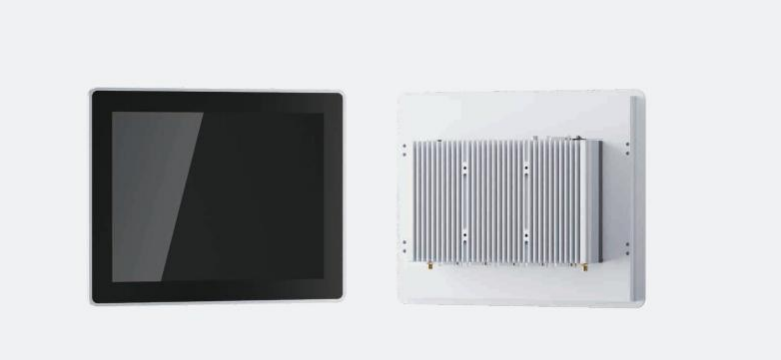

12.1 " Ultra-thin Full Aluminum Fanless Industrial Panel PC
• Intel®Core i3-1115G4 Dual-Core, Four-Thread 3.0-4.1GHz• DDR4 high-speed memory ， Up to 32G SSD Up to 1T
• Dual INTEL 10M/100/1000M adaptive Gigabit network chip; Serial Ports ， 4*USB3.0 、 2*GLAN 、1*HDMI
• WiFi, Bluetooth, 4G and other wireless configurations are optional
• Panel installation hole size (recommended) 286*228 (W*H) (1.40/2.00mm larger than the actual hole size)
• Outline Dimension 303*242*67（W*H*D）
• Mounting Method 75mm*75mm VESA mounting or front embedded mounting supported

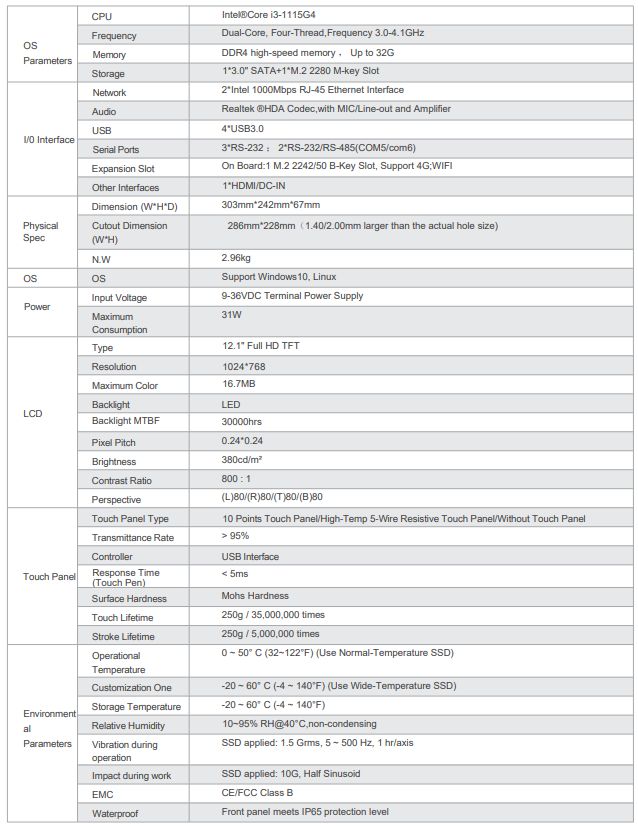

SPECIFICATIONPARAMETER

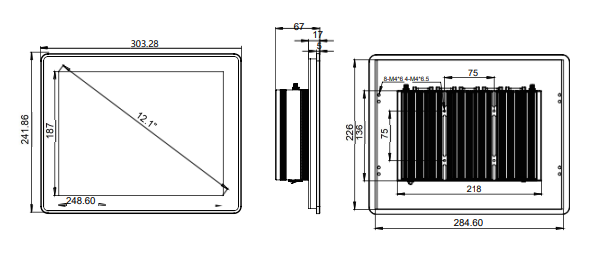

DIMENSIONFIGURE

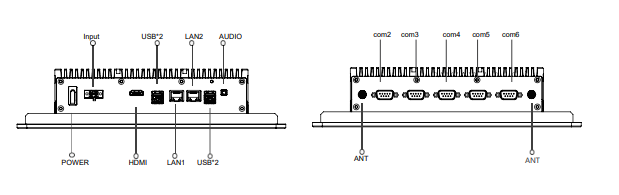

INTERFACEDRAWING

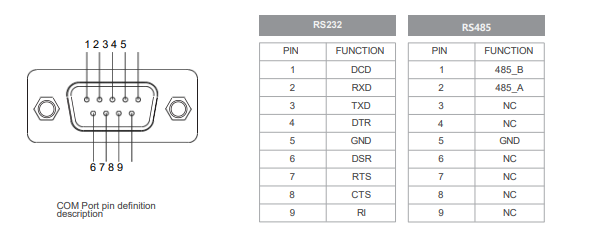

PINDEFINITION
