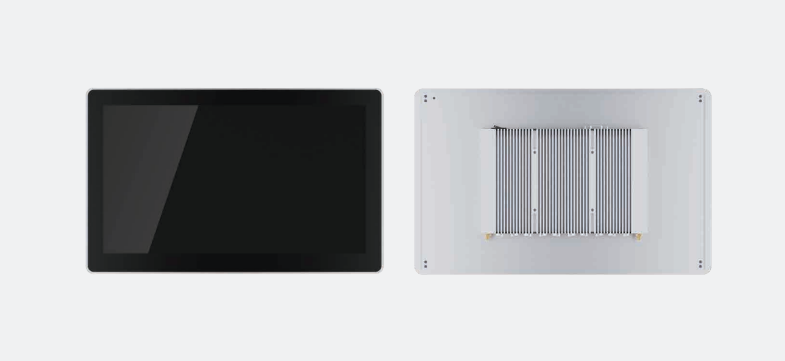

  • IPA133-A 13.3 " Ultra-thin Full Aluminum Fanless Industrial Panel PC
  • IPA133-A 13.3 " Ultra-thin Full Aluminum Fanless Industrial Panel PC
  • IPA133-A 13.3 " Ultra-thin Full Aluminum Fanless Industrial Panel PC
  • IPA133-A 13.3 " Ultra-thin Full Aluminum Fanless Industrial Panel PC
  • Model:IPA133-A
  • Brand:Xuhong
  • Size:13.3inch
  • Resolution:1920*1080
  • Brightness:300cd/m²
  • Perspective:89/89/89/89
  • Interface:1*USB3.0, 3*USB2.0, 1*HDMI, 1*VGA
  • Operating Temp.:0~50℃
  • Production State:In Production
  • Click For Price
  • Technical Parameters

  • IPA133-A

    Quad-core, four-thread/Wi-Fi, Bluetooth, 4G/SSD support up to 1TB/Adaptiv13.3 " Ultra-thin Full Aluminum Fanless Industrial Panel PCe Gigabit Ethernet chip



    13.3 " Ultra-thin Full Aluminum Fanless Industrial Panel PC

    • Intel® Celeron® J1900 2.0GHz Quad-Core, Four-Thread Processor

    • Intel® Celeron® J1900 2.0GHz Quad-Core, Four-Thread Processor

    • Dual Realtek 10M/100M/1000M Adaptive Gigabit Ethernet Chips; 6 Serial Ports (Supports Up to 2*RS485), 1*USB3.0, 3*USB2.0, 1*HDMI, 1*VGA

    • Optional Wireless Configurations: WiFi, Bluetooth, 4G

    • Panel Mounting Dimensions (Recommended):336*210（W*H）（1.60/1.84mm Larger Than Actual Cutout Dimensions) (W*H）

    • Overall Dimensions: 346*218*62（W*H*D）

    • Mounting Options: Supports 75mm*75mm VESA Mount and Front Embedded Mount

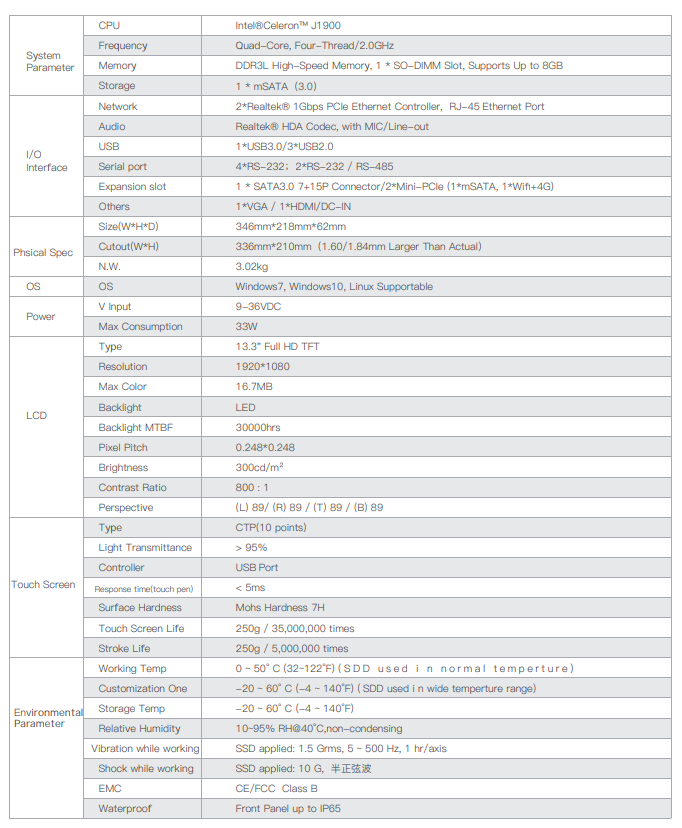

    SPECIFICATION PARAMETER

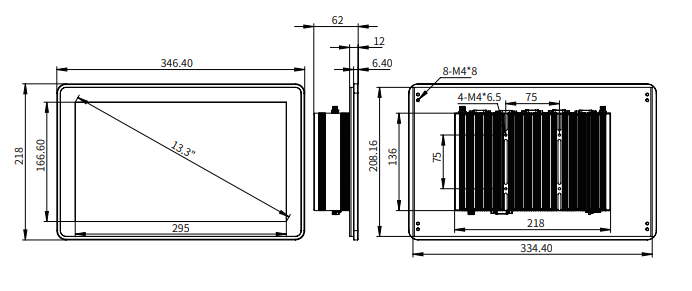

    DIMENSION FIGURE

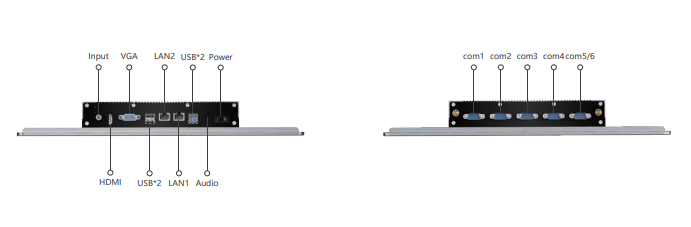

    INTERFACE DRAWING

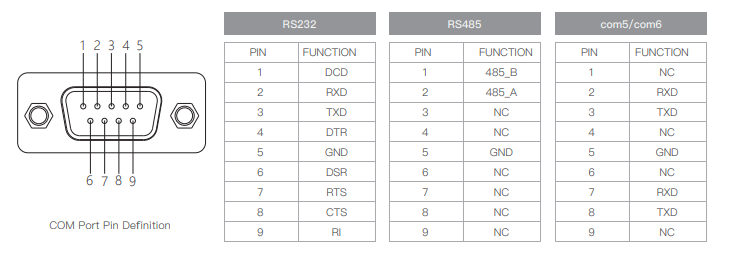

    PIN DEFINITION
