IPC133-E-11I3
Dual-Core, Four-Thread/WIFI Bluetooth 4G/SSD up to 1T/Adaptive Gigabit Ethernet chip

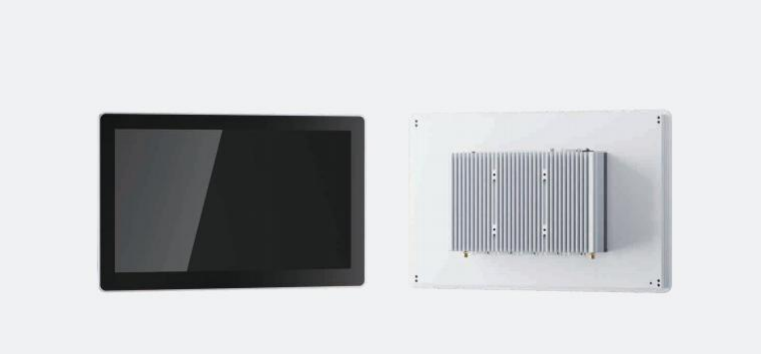

13.3 " Ultra-thin Full Aluminum Fanless Industrial Panel PC
• Intel®Core i3-1115G4 Dual-Core, Four-Thread 3.0-4.1GHz
• DDR4 high-speed memory ， Up to 32G SSD Up to 1T
• Dual INTEL 10M/100/1000M adaptive Gigabit network chip; Serial Ports ， 4*USB3.0 、 2*GLAN 、1*HDMI
• WiFi, Bluetooth, 4G and other wireless configurations are optional
• Panel Cutout(Recommended) 336*210 （ W*H ）( 1.60/1.84mm Larger than actual cutout:)
• Outline Dimension 346*218*62（W*H*D）
• Mounting Method 75mm*75mm VESA mounting or front embedded mounting supported

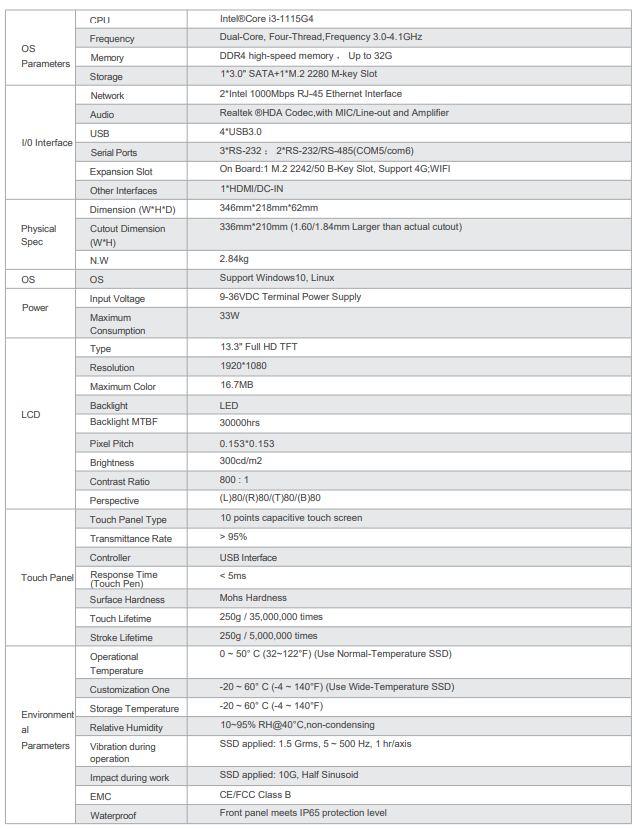

SPECIFICATIONPARAMETER

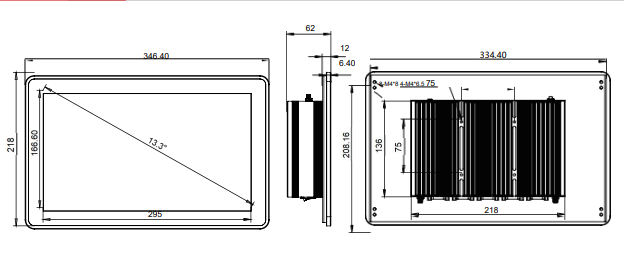

DIMENSIONFIGURE

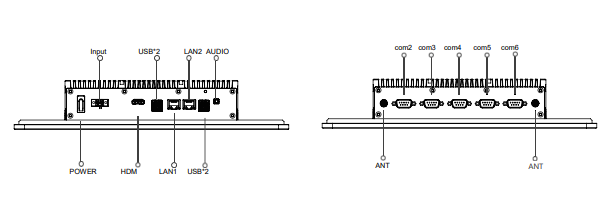

INTERFACEDRAWING

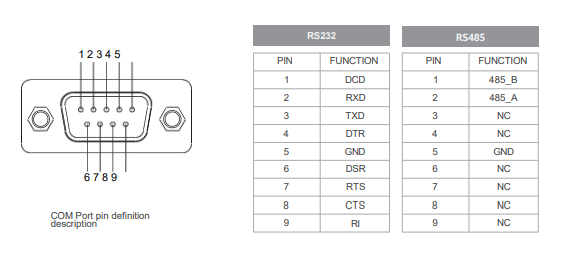

PINDEFINITION
