  • IPA150-A 15.0" Ultra-thin Full Aluminum Fanless Industrial Panel PC
  • IPA150-A 15.0" Ultra-thin Full Aluminum Fanless Industrial Panel PC
  • IPA150-A 15.0" Ultra-thin Full Aluminum Fanless Industrial Panel PC
  • IPA150-A 15.0" Ultra-thin Full Aluminum Fanless Industrial Panel PC
  • Model:IPA150-A
  • Brand:Xuhong
  • Size:15.0inch
  • Resolution:1024*768
  • Brightness:350cd/m²
  • Perspective:80/80/80/80
  • Interface: (Supports Up to 2*RS485), 1*USB3.0, 3*USB2.0, 1*HDMI, 1*VGA
  • Operating Temp.:0~50℃
  • Production State:In Production
  • Click For Price
  • Technical Parameters

  • IPA150-A

    Quad-core, four-thread/Wi-Fi, Bluetooth, 4G/SSD support up to 1TB/Adaptive Gigabit Ethernet chip

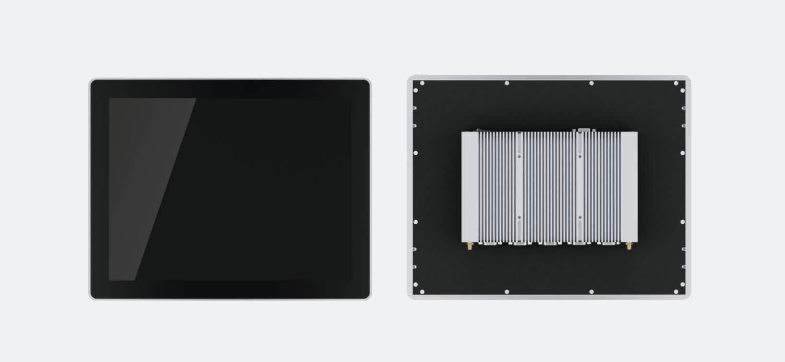

    15.0 " Ultra-thin Full Aluminum Fanless Industrial Panel PC

    • Intel® Celeron® J1900 2.0GHz Quad-Core, Four-Thread Processor

    • 4GB DDR3L High-Speed Memory, Up to 8GB; SSD Supports Up to 1TB

    • Dual Realtek 10M/100M/1000M Adaptive Gigabit Ethernet Chips; 6 Serial Ports (Supports Up to 2*RS485), 1*USB3.0, 3*USB2.0, 1*HDMI, 1*VGA

    • Optional Wireless Configurations: WiFi, Bluetooth, 4G

    • Panel Mounting Dimensions (Recommended): 345*271（W*H）（1.50/1.70mm Larger Than Actual Cutout Dimensions) (W*H)

    • Overall Dimensions: 358*282*69（W*H*D）

    • Mounting Options: Supports 75mm*75mm VESA Mount and Front Embedded Mount

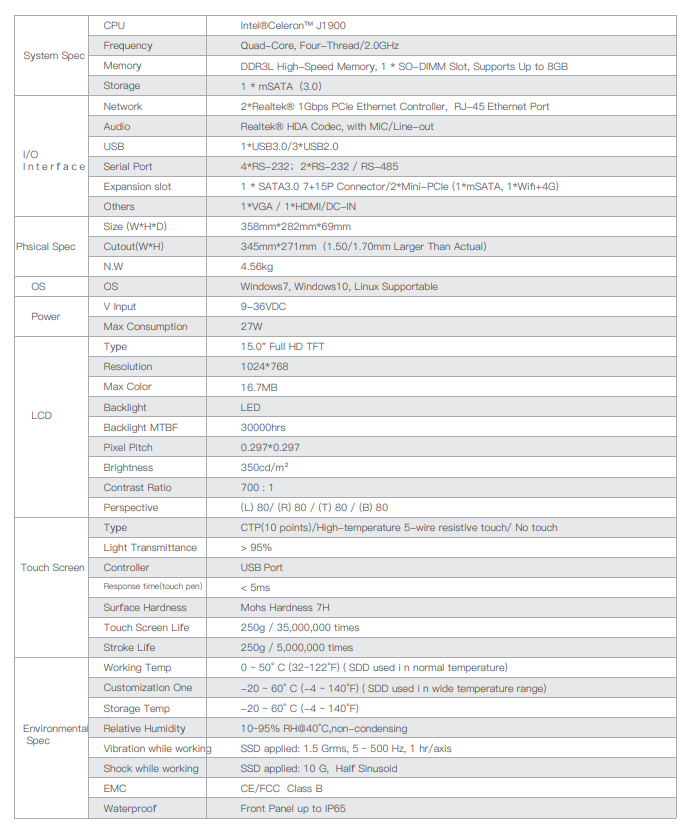

    SPECIFICATION PARAMETER

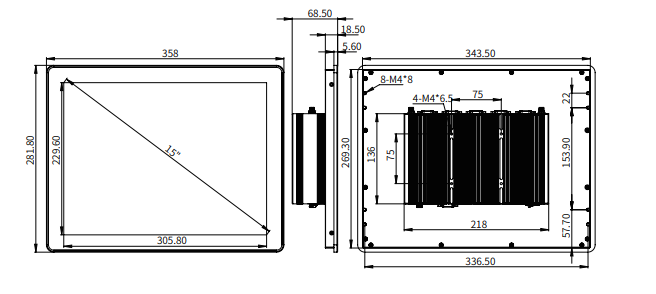

    DIMENSION FIGURE

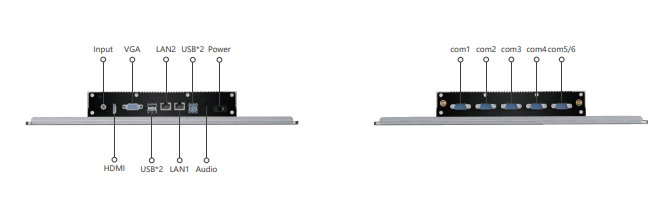

    INTERFACE DRAWING

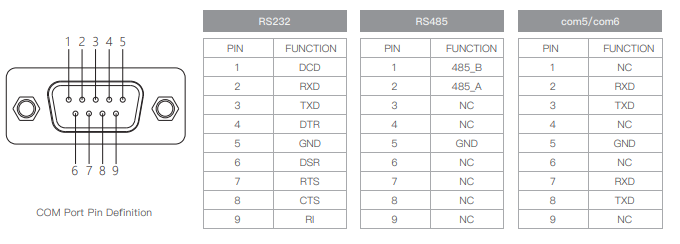

    PIN DEFINITION
