IPA156-A
Quad-core, four-thread/Wi-Fi, Bluetooth, 4G/SSD support up to 1TB/Adaptive Gigabit Ethernet chip

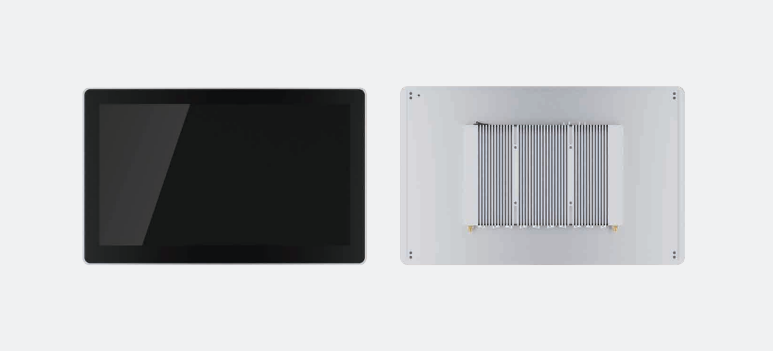

15.6 " Ultra-thin Full Aluminum Fanless Industrial Panel PC
• Intel® Celeron® J1900 2.0GHz Quad-Core, Four-Thread Processor
• 4GB DDR3L High-Speed Memory, Up to 8GB; SSD Supports Up to 1TB
• Dual Realtek 10M/100M/1000M Adaptive Gigabit Ethernet Chips; 6 Serial Ports(Supports Up to 2*RS485), 1*USB3.0, 3*USB2.0, 1*HDMI, 1*VGA
• Optional Wireless Configurations: WiFi, Bluetooth, 4G
• Panel Mounting Dimensions(Recommended): 345*271（W*H）（1.50/1.70mm Larger Than Actual Cutout Dimensions) (W*H)
• Overall Dimensions: 392*246*62（W*H*D）
• Mounting Options: Supports 75mm*75mm VESA Mount and Front Embedded Mount

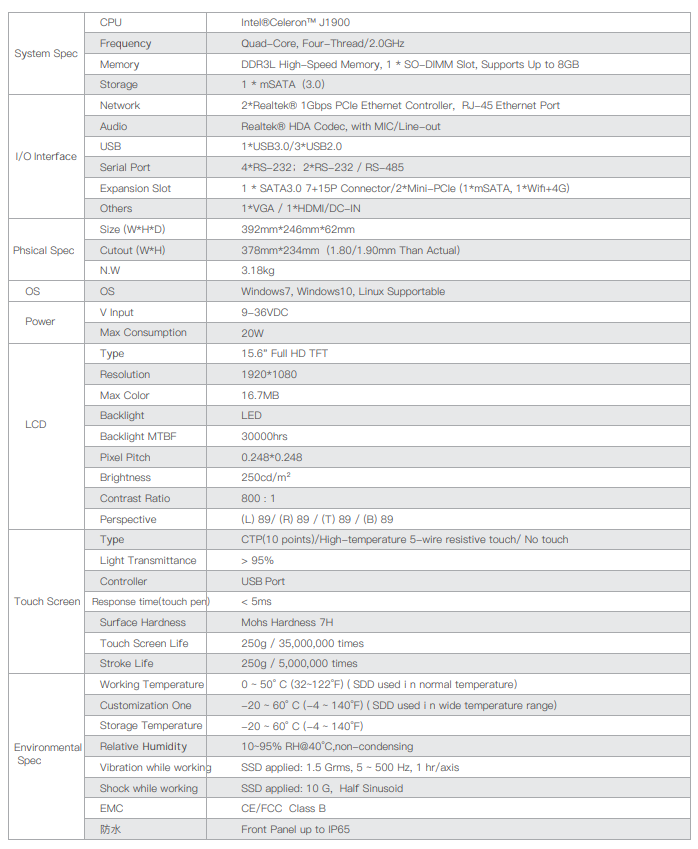

SPECIFICATION PARAMETER

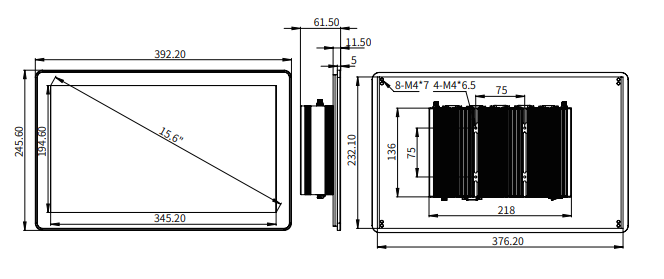

DIMENSION FIGURE

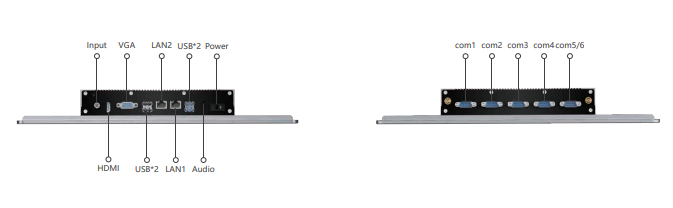

INTERFACE DRAWING

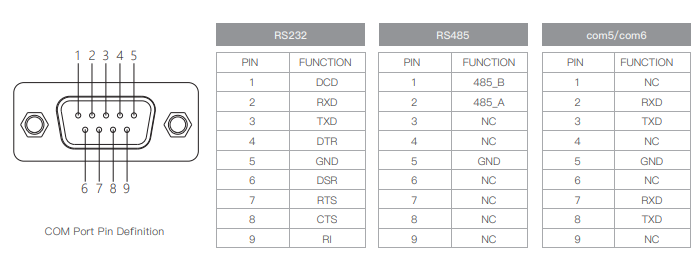

PIN DEFINITION
