IPC156-E-11I3
Dual-Core, Four-Thread/WIFI Bluetooth 4G/SSD up to 1T/Adaptive Gigabit Ethernet chip

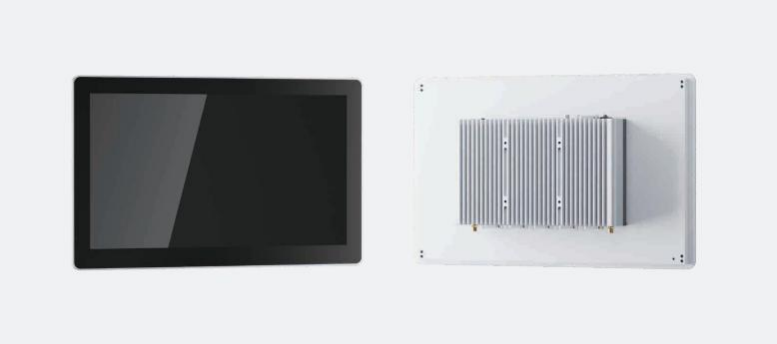

15.6 " Ultra-thin Full Aluminum Fanless Industrial Panel PC
• Intel®Core i3-1115G4 Dual-Core, Four-Thread 3.0-4.1GHz
• DDR4 high-speed memory ， Up to 32G SSD Up to 1T
• Dual INTEL 10M/100/1000M adaptive Gigabit network chip; Serial Ports ， 4*USB3.0 、 2*GLAN 、1*HDMI
• WiFi, Bluetooth, 4G and other wireless configurations are optional
• Mount opening hole size (suggested) 378*234（W*H）（1.80/1.90mm larger than actual）
• Outline Dimension 392*246*62（W*H*D）
• Mounting Method 75mm*75mm VESA mounting or front embedded mounting supported

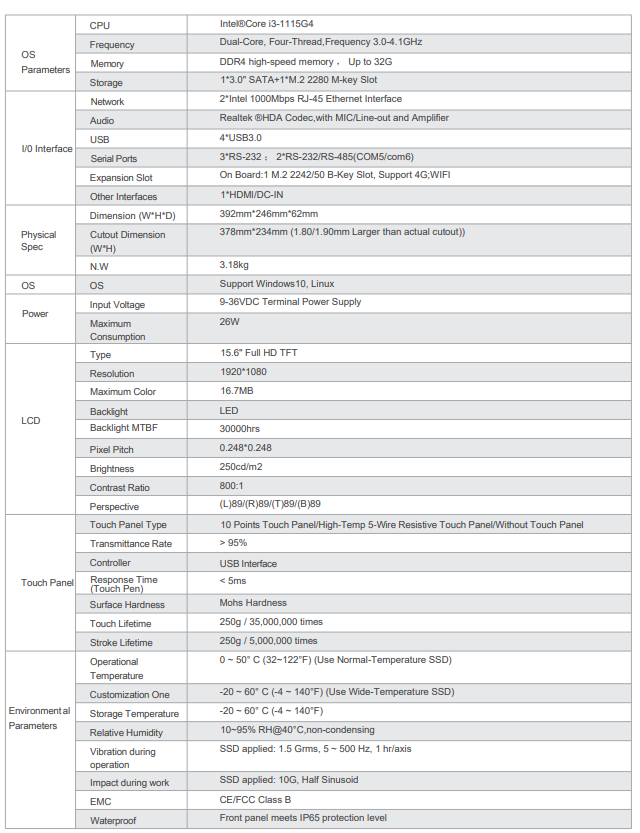

SPECIFICATIONPARAMETER

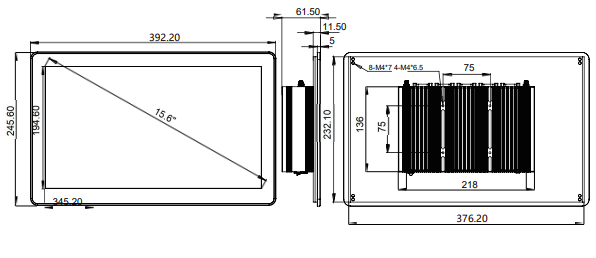

DIMENSIONFIGURE

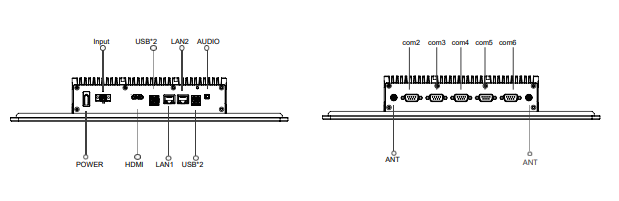

INTERFACEDRAWING

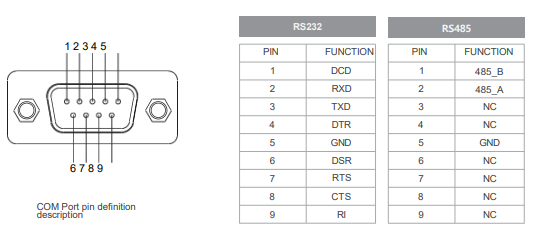

PINDEFINITION
