IPC156-E-11I5
Dual-Core, Four-Thread/WIFI Bluetooth 4G/SSD up to 1T/Adaptive Gigabit Ethernet chip

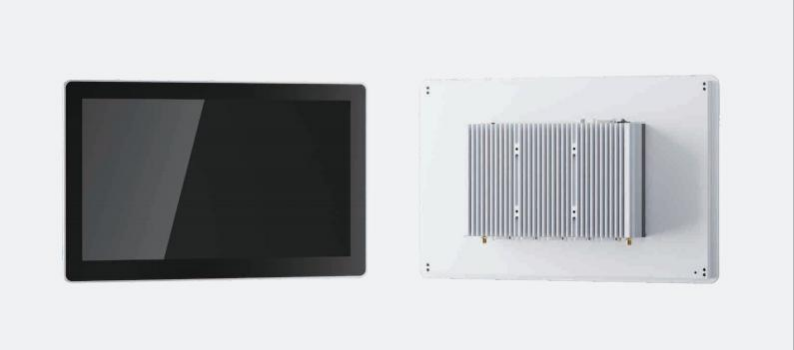

15.6 " Ultra-thin Full Aluminum Fanless Industrial Panel PC
• Intel®Core i5-1155G7/i5-1135G7 Quad Cores and Eight threads 2.5-4.5GHz
• DDR4 high-speed memory ， Up to 32G SSD Up to 1T
• Dual INTEL 10M/100/1000M adaptive Gigabit network chip; Serial Ports ， 4*USB3.0 、 2*GLAN 、1*HDMI • WiFi, Bluetooth, 4G and other wireless configurations are optional
• Larger than actual cutout: 378*234 （ W*H ）( 1.80/1.90mm Larger than actual cutout:)
• Outline Dimension 392*246*62（W*H*D）
• Mounting Method 75mm*75mm VESA mounting or front embedded mounting supported

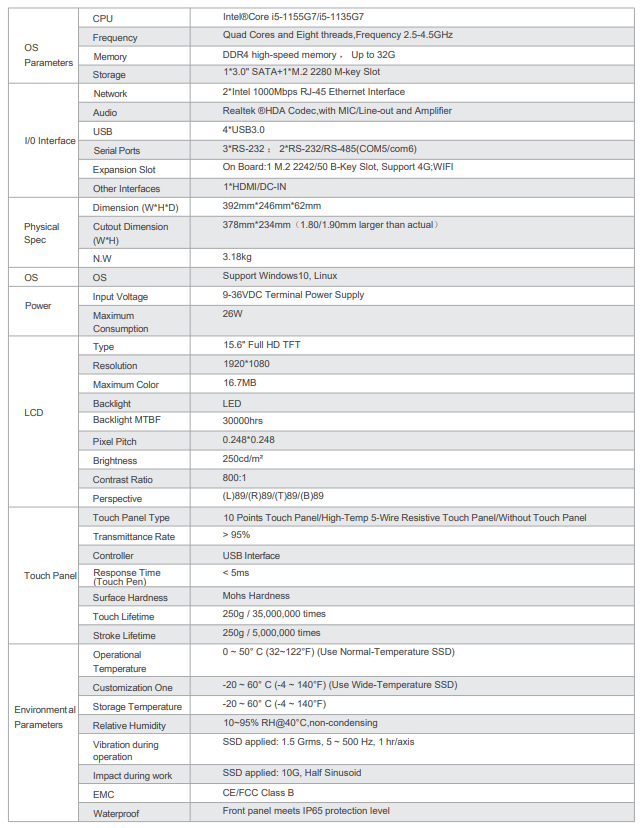

SPECIFICATIONPARAMETER

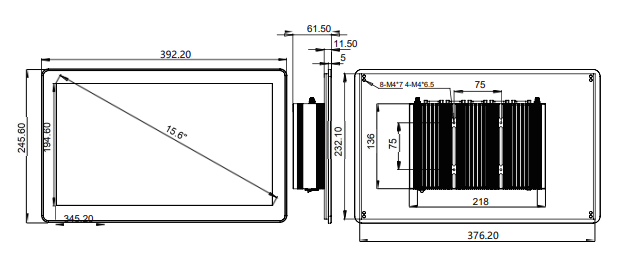

DIMENSIONFIGURE

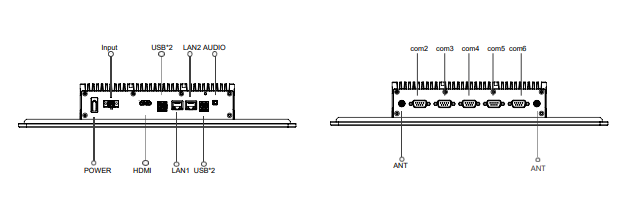

INTERFACEDRAWING

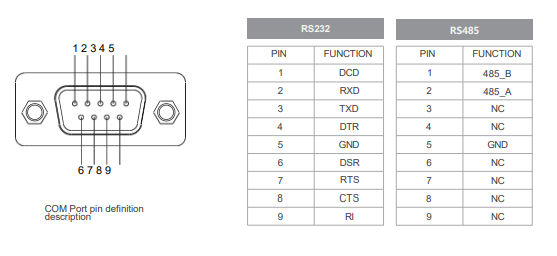

PINDEFINITION
