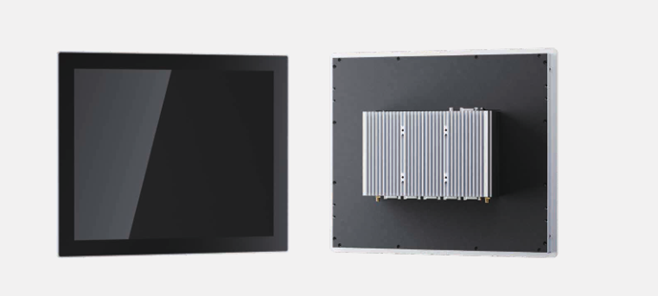

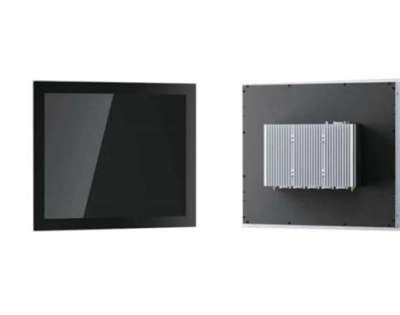

  • IPA170-E-12I3/I5/I7 17.0 inch Ultra-thin All-aluminum Fanless Panel PC
  • IPA170-E-12I3/I5/I7 17.0 inch Ultra-thin All-aluminum Fanless Panel PC
  • IPA170-E-12I3/I5/I7 17.0 inch Ultra-thin All-aluminum Fanless Panel PC
  • IPA170-E-12I3/I5/I7 17.0 inch Ultra-thin All-aluminum Fanless Panel PC
  • Model:IPA170-E-12I3/I5/I7
  • Brand:Xuhong
  • Size:17.0inch
  • Resolution:1280*1024
  • Brightness:250cd/m²
  • Perspective:85/85/80/80
  • Interface:4*USB3.0, 2*GLAN, 1*HDMI
  • Operating Temp.:0~50℃/-20~60℃
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • IPA170-E-12I3/I5/I7

    WIFI, Bluetooth, 4G  Ι  Solid hard disk support 1T Max

    Ι Adaptive gigabit network chip



    17.0 inch Ultra-thin All-aluminum Fanless Panel PC

    l  Intel®Core i3-1215U Six cores and eight threads 0.9-4.4GHz/ i5-1235U Ten cores and twelve threads 1.3-4.4GHz/ i7-1255U Ten cores and twelve threads 1.7-4.7GHz

    l  DDR4 High speed memory, support MAX 32G; SSD solid hard disk, support MAX 1T

    l  Dual intel 10M/100M/1000M Adaptive gigabit network chip, 6 serial ports, 4*USB3.0, 2*GLAN, 1*HDMI

    l  WIFI, Bluetooth, 4G , Wireless configuration optional

    l  Panel mounting hole dimensions (Recommended) 377mm*314mm (1.50/1.70mm larger than the actual hole size)

    l  Outline dimension: 395mm*327mm*69mm (W*H*D)

             l   Installation mode: support 75mm*75mm VESA installation, Front embedded mounting

    SPECIFICATION PARAMETER

    System   Parameters

    Model

    IPC170-E-12I3

    IPC170-E-12I5

    IPC170-E-12I7

    CPU

    Intel®Core i3-1215U

    Intel®Core i5-1235U

    Intel®Core i7-1255U

    Frequency

    Six   cores and eight threads/0.9-4.4GHz

    Ten   cores and twelve threads/1.3-4.4GHz

    Ten   cores and twelve threads/1.7-4.7GHz

    Memory

    Support   DDR4 High speed memory, Support MAX 32GB

    Storage

    1*3.0”   SATA + 1*M2 2280 M-key slot

    Network

    2*Intel 1000Mbps,   Ethernet interface RJ45

    I/O   Interfaces

    Audio   frequency

    Realtek® HDA   Codec, with MIC/Line-out and Amplifier

    USB

    4*USB3.0

    Serial   port

    4*RS-232;   2*RS-232/RS-485(com5/com6)

    Expansion   slot

    Onboard   1 M.2 2242/50 B-Key card slot, supports 4G; WIFI wireless network card

    Other   ports

    1*HDMI/1*DC-IN

    Physical   characteristics

    DimensionW*H*D

    395mm*327mm*69mm

    Hole   size (W*H)

    377mm*314mm(1.50/1.70mm   larger than the actual hole size)

    Net   Weight

    5.52kg

    Operating   System

    Operating   System

    support   Windows 10, Linux

    Power   Supply

    Input   voltage

    9-36V   DC

    Max

    power   consumption

    62W

    Panel

    Panel   type

    17’’  FULL HD TFT

    Resolution

    1280*1024

    Maximum   color

    16.7MB

    Backlight

    LED

    Backlight   MTBF(hours)

    30,000Hrs

    Pixel   pitch

    0.264*0.264

    Brightness

    250cd/m²

    Contrast   Ratio

    1000:1

    Viewing   Angle

    85/85/80/80   (L/R/U/D)

    Touch   Screen

    Touch   screen type

    10   contact capacitor touch screen/no touch screen

    Transmittance

    95%

    Controller

    USB   interface

    Response   time (touch pen)

    5ms

    Surface   hardness

    Mohl   hardness 7H

    Touch   life

    250g/35,000,000   times

    Stroke   life

    250g/5,000,000   times

    Environmental   parameter

    Operating   temperature

    1)       Standard:   0~50; 2) optional:   -20~60(Use wide   temperature SSD)

    Storage   temperature

    -20~60

    Relative   humidity

    10~95%   RH@40℃,non-condensing

    Working   vibration

    SSD   applied:1.5 Grms,5~500Hz, 1 Hr/axis

    Working   impact

    SSD   applied:10G, Half sine wave

    EMC

    CE/FCC,   Class B

    Waterproof

    IP65   (Front panel)

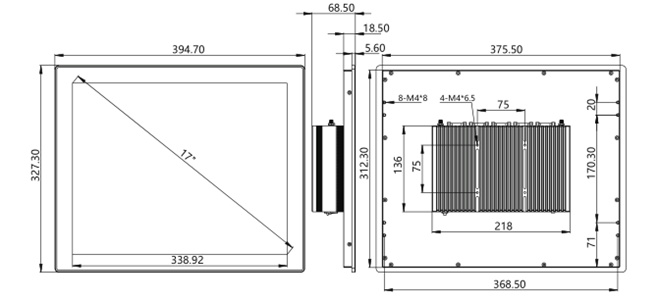

    DIMENSIONS

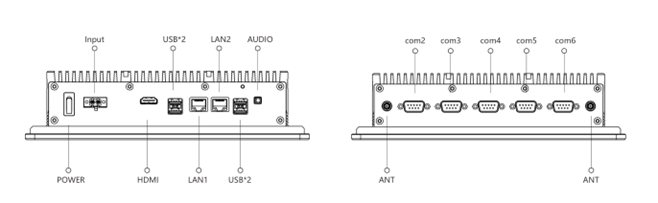

    INTERFACE DRAWING

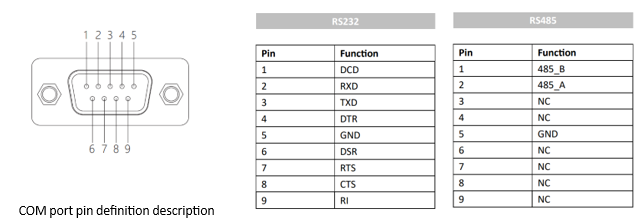

    PIN DEFINITION
