IPC185-E-11I7
Quad Cores and Eight threads/WIFI Bluetooth 4G/SSD up to 1T/Adaptive Gigabit Ethernet chip

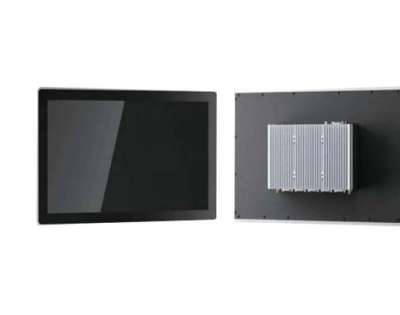

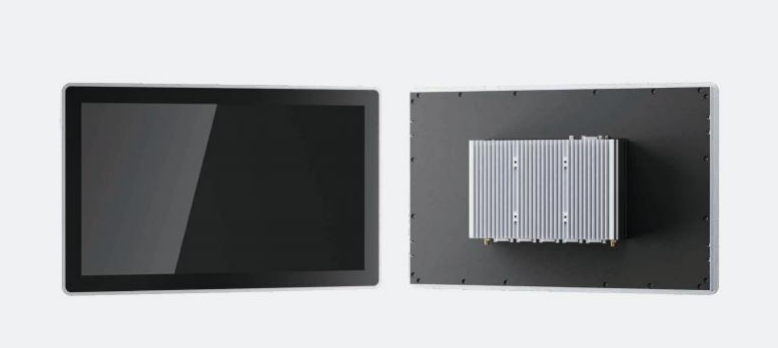

18.5 " Ultra-thin Full Aluminum Fanless Industrial Panel PC
• Intel®Core i7-1165G7 Quad Cores and Eight threads 2.8-4.7GHz
• DDR4 high-speed memory ， Up to 32G SSD Up to 1T
• Dual INTEL 10M/100/1000M adaptive Gigabit network chip; Serial Ports ， 4*USB3.0 、 2*GLAN 、1*HDMI
• WiFi, Bluetooth, 4G and other wireless configurations are optional
• Mount opening hole size (recommended) 454mm*275mm/449mm*273mm( HR )（1.20/1.60mm larger than actual）（W*H）
• Outline dimension 465mm*285mm*69mm /461mm*282mm*69mm( HR )（W*H*D）
• Mounting Method 75mm*75mm VESA mounting or front embedded mounting supported

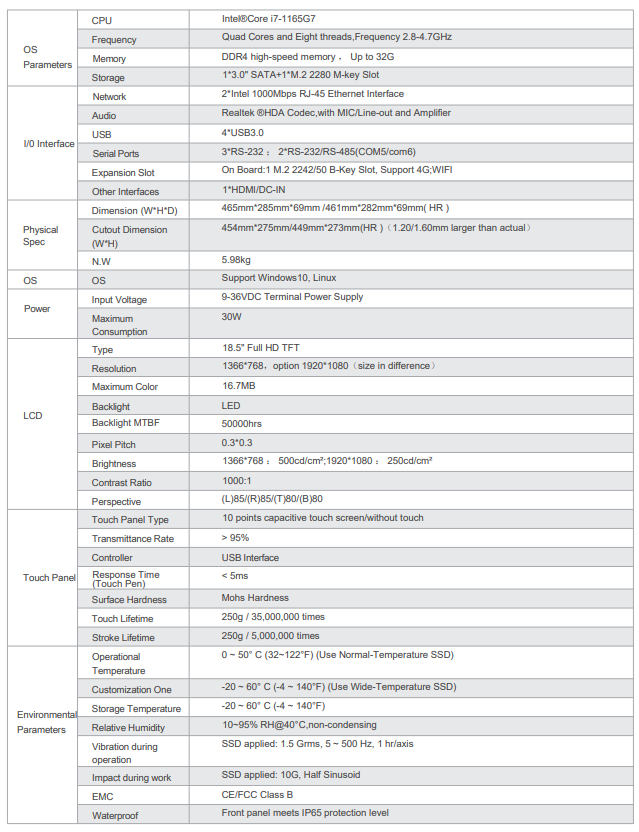

SPECIFICATIONPARAMETER

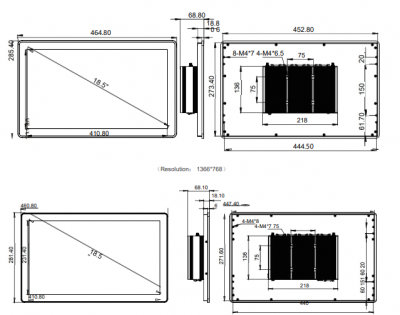

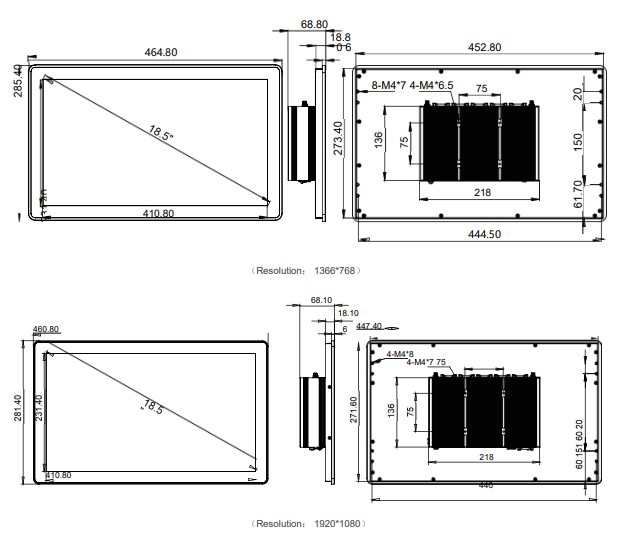

DIMENSIONFIGURE

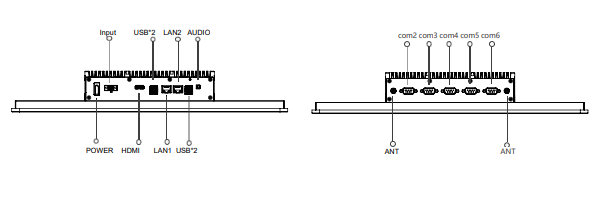

INTERFACEDRAWING

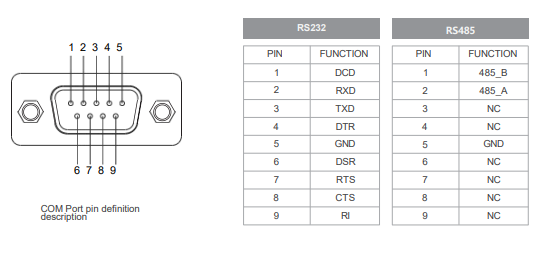

PINDEFINITION
