IPA190-C
Four core, Four threads Ι WIFI, Bluetooth, 4G
Solid hard disk support 1T Max Ι Adaptive gigabit network chip

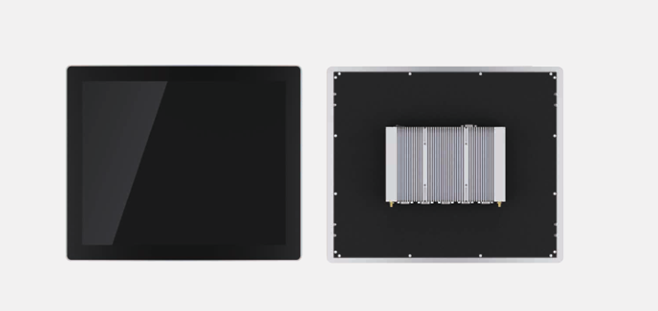

19 inch Ultra-thin All-aluminum Fanless Panel PC
l INTEL®CELERON®J6412 2.0GHz, Four cores and four threads
l 4GB DDR4 High speed memory, support MAX 32G; SSD solid hard disk, support MAX 1T
l Dual intel 210 10M/100M/1000M Adaptive gigabit network chip, 6 serial ports(support max 2xRS485), 1*HDMI, 2*RJ45
l WIFI, Bluetooth, 4G , Wireless configuration optional
l Panel mounting Hole dimensions (Recommended) 415mm*345mm (2.00/1.24mm larger than the actual hole size)
l Outline dimension: 440mm*364mm*69mm (W*H*D)
l Installation mode: support 75mm*75mm VESA installation, Front embedded mounting
SPECIFICATION PARAMETER
System Parameters | CPU | Intel®Celeron™J6412 |
Frequency | Four cores and four threads/2.0GHz | |
Memory | Support DDR4-3200,1*SO-DIMM, Support MAX 32GB | |
Store | 1*SATA 3.07P Connector/M.2 Connector; 1*mSATA (3.0) | |
Network | 2*Intel®2.5Gbps PCIe Ethernet controller, RJ45 | |
I/O Interfaces | Audio frequency | Realtek® HDA Codec, with MIC/Line-out and Amplifier |
USB | 4*USB3.0 | |
Serial port | 4*RS-232; 2*RS-232/RS-485 | |
Expansion slot | 1*Mini-PCIe(mSATA support WIFI/4G optional), 1*M.2(SATA/5G optional) | |
Other ports | 1*HDMI/1*DC-IN | |
Physical characteristics | Dimension（W*H*D） | 440mm*364mm*69mm |
Hole size (W*H) | 415mm*345mm(2.00/1.24mm larger than the actual hole size) | |
Net Weight | 6.32kg | |
Operating System | Operating System | support Windows 10, Linux |
Power Supply | Input voltage | 9-36V DC |
Max power consumption | 31W | |
Panel | Panel type | 19’’ FULL HD TFT |
Resolution | 1280*1024 | |
Maximum color | 16.7MB | |
Backlight | LED | |
Backlight MTBF(hours) | 30,000Hrs | |
Pixel pitch | 0.294*0.294 | |
Brightness | 250cd/m² | |
Contrast Ratio | 1000:1 | |
Viewing Angle | 85/85/80/80 (L/R/U/D) | |
Touch Screen | Touch screen type | 10 contact capacitor touch screen/High tempreture 5wire resistive touch screen/no touch screen |
Transmittance | ＞95% | |
Controller | USB interface | |
Response time (touch pen) | ＜5ms | |
Surface hardness | Mohl hardness 7H | |
Touch life | 250g/35,000,000 times | |
Stroke life | 250g/5,000,000 times | |
Environmental parameter | Operating temperature | 1) Standard: 0~50℃; 2) optional: -20~60℃(Use wide temperature SSD) |
Storage temperature | -20~60℃ | |
Relative humidity | 10~95% RH@40℃，non-condensing | |
Working vibration | SSD applied:1.5 Grms,5~500Hz, 1 Hr/axis | |
Working impact | SSD applied:10G, Half sine wave | |
EMC | CE/FCC, class B | |
Waterproof | IP65 (Front panel) |

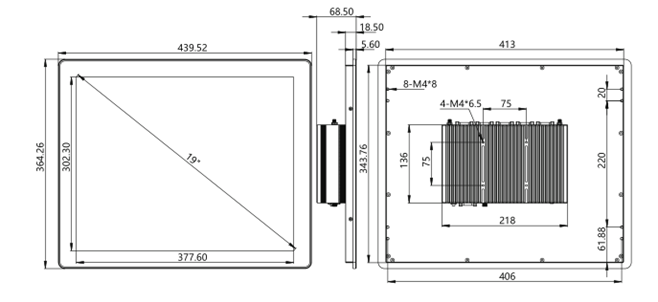

DIMENSIONS

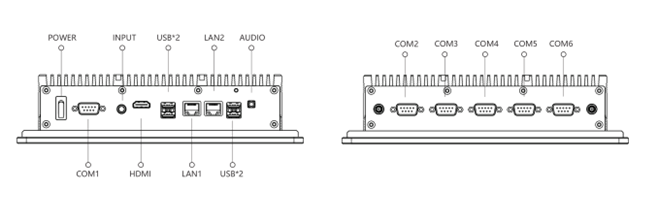

INTERFACE DRAWING

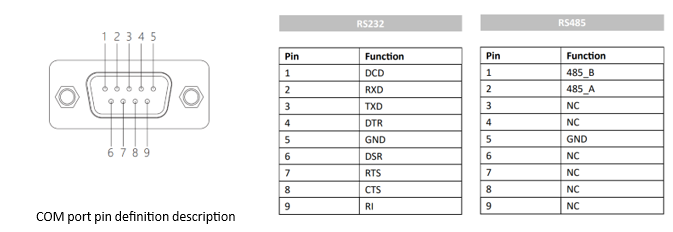

PIN DEFINITION
