IPC238-E-11I7
Quad Cores and Eight threads/WIFI Bluetooth 4G/SSD up to 1T/Adaptive Gigabit Ethernet chip

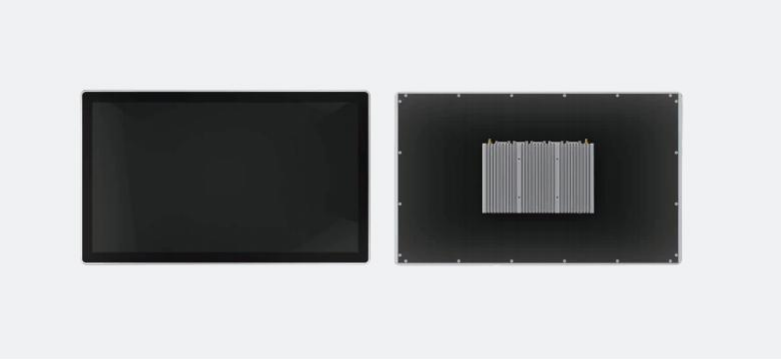

23.8 " Ultra-thin Full Aluminum Fanless Industrial Panel PC
• Intel®Core i7-1165G7 Quad Cores and Eight threads 2.8-4.7GHz
• DDR4 high-speed memory Up to 32G ,SSD Up to 1T
• Dual INTEL 10M/100/1000M adaptive Gigabit network chip; Serial Ports ， 4*USB3.0 、 2*GLAN 、1*HDMI
• WiFi, Bluetooth, 4G and other wireless configurations are optional
• Panel Cutout(Recommended) 562*340 （ W*H ） (2.00/1.42mm Larger than actual cutout:) • Outline Dimension 579*349*70 （ W*H*D ）
• Mounting Method 75mm*75mm VESA mounting or front embedded mounting supported

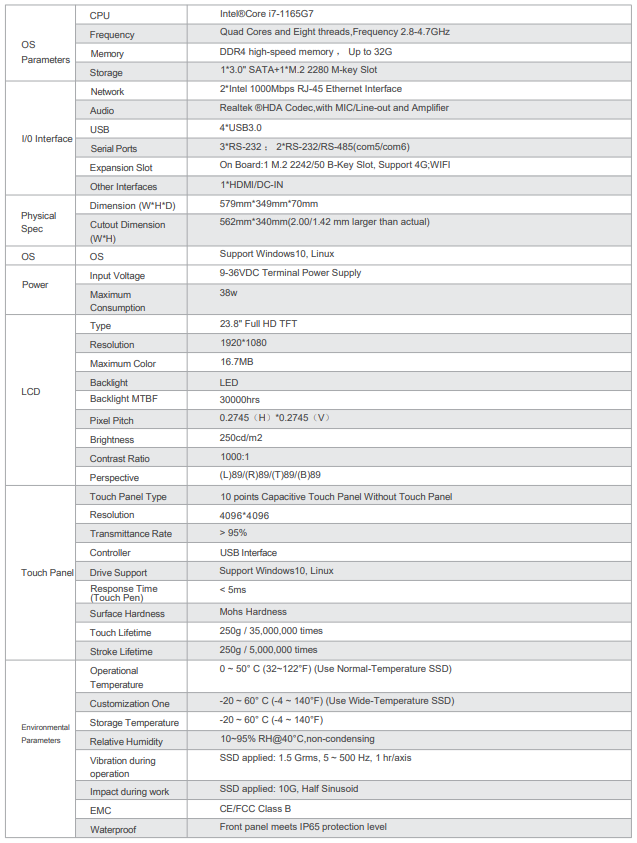

SPECIFICATIONPARAMETER

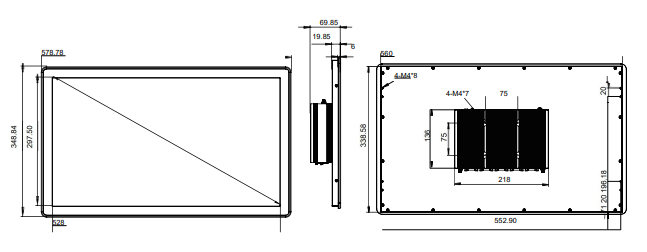

DIMENSIONFIGURE

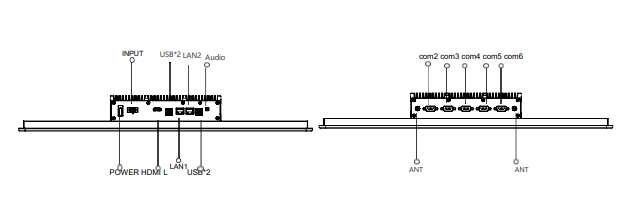

INTERFACEDRAWING

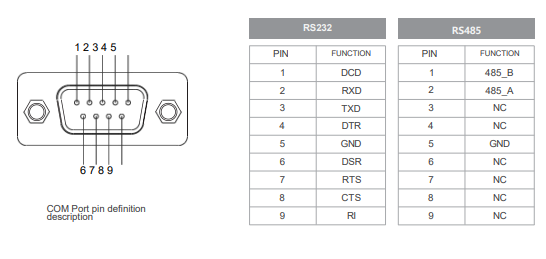

PINDEFINITION
