IPC080-E-11I5
Dual-Core, Four-Thread/WIFI Bluetooth 4G/SSD up to 1T/Adaptive Gigabit Ethernet chip

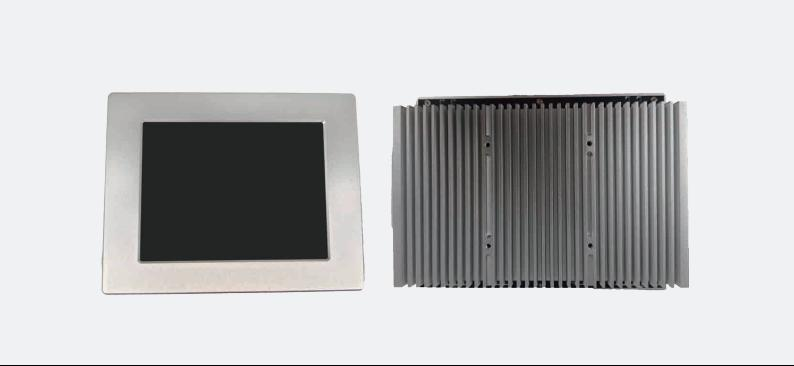

8.0 " Ultra-thin Full Aluminum Fanless Industrial Panel PC
• Intel®Core i5-1135G7Dual-Core, Four-Thread 、Frequency 0-4.1GHz/ / Quad Cores and Eight threads 2.4-4.2GHz/2.8-4.7GHz
• 4GB DDR4-3200MT/S high-speed memory,Up to 32G SSD Up ro 1T
• Dual Adaptive Gigabit Ethernet Chip 4*USB 、 1*HDMI,Multiple Interface
• WiFi, Bluetooth, 4G and other wireless configurations are optional
• Panel Cutout(Recommended) 224*174(W*H) , 2.00 MMLarger than actual cutout:
• Outline Dimension 230*180*62 （ W*H*D ）
• Mounting Method 75mm*75mm VESA mounting or front embedded mounting supported

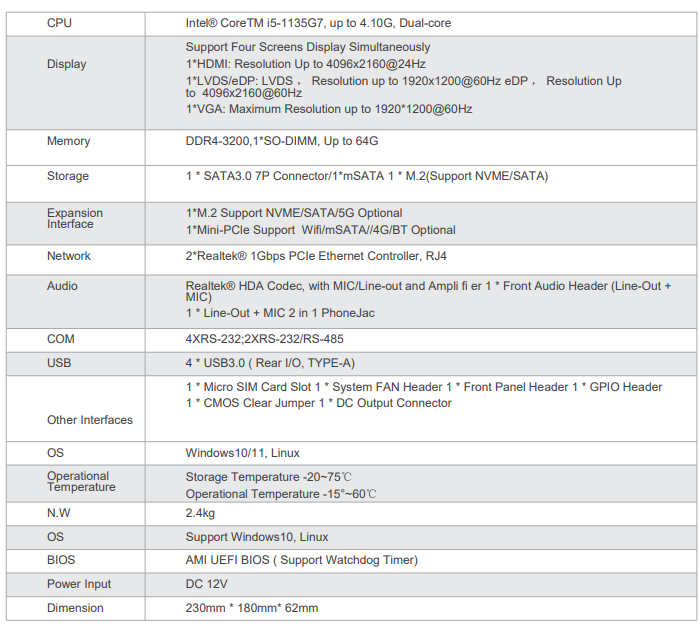

SPECIFICATIONPARAMETER

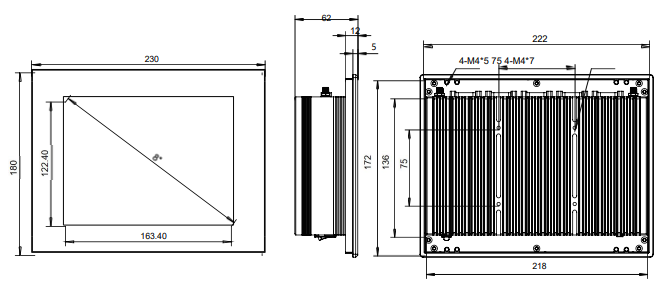

DIMENSIONFIGURE

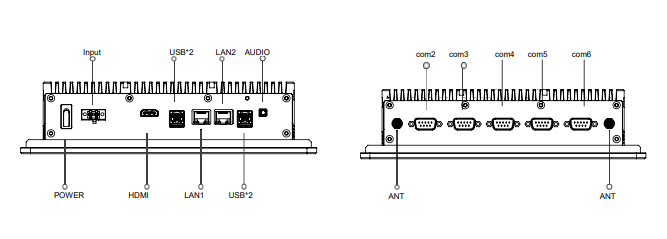

INTERFACEDRAWING

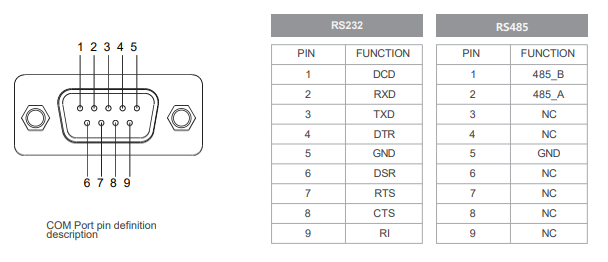

PINDEFINITION
